KV-34HS510

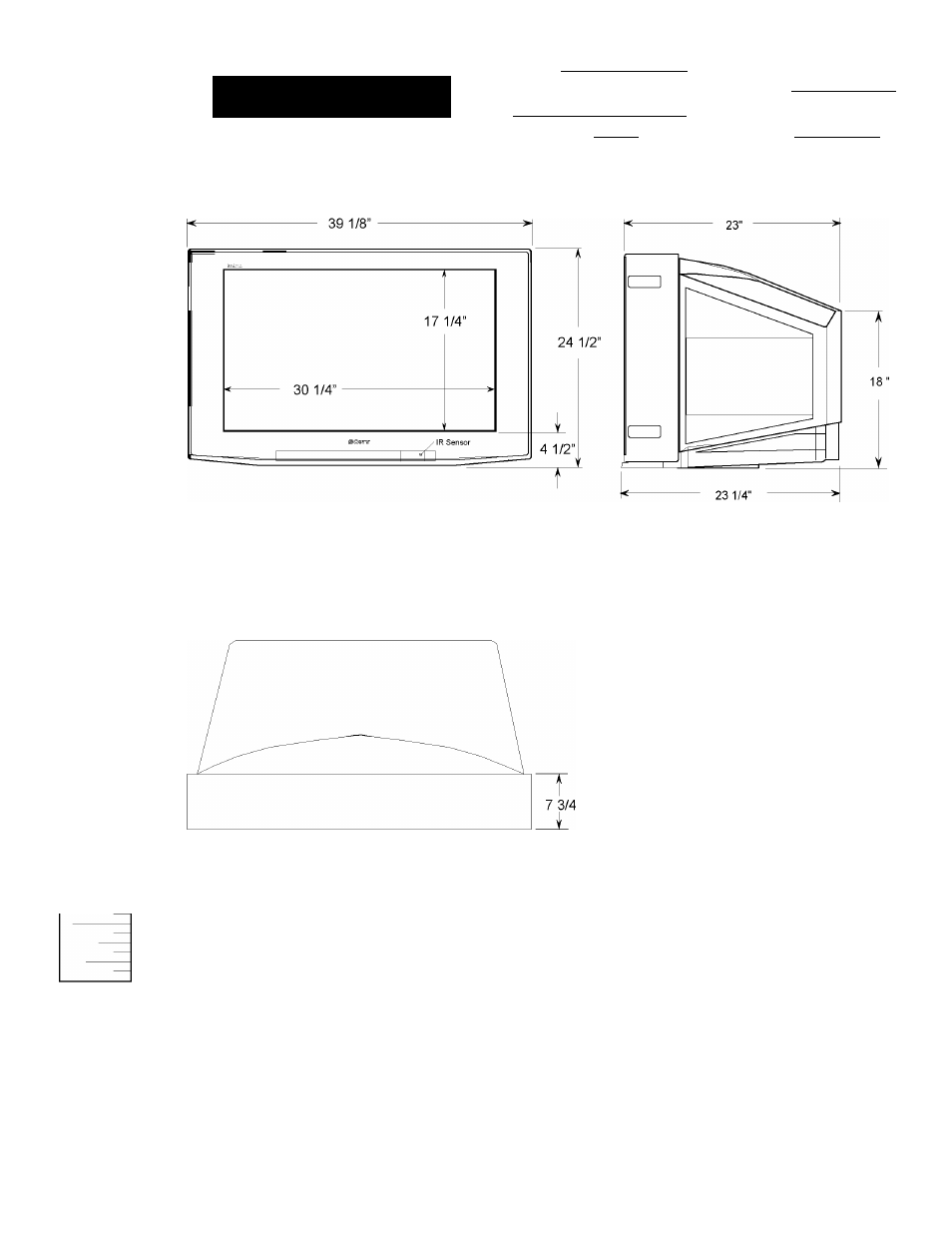

FRONT VIEW
DESCRIPTION: 34" Trinitron® POWER
DIMENSIONS M onitor/R ece i ve r requirem ENTS:120V AC
(WHD): 39 1/8" x 24 1/2" x 23 1/4" POWER 60Hz
WEIGHT:_______ 201 lbs________ CONSUMPTION: 280w(max)
1w(stby)
SIDE VIEW
TOP VIEW
-------- 32” —
JACK PACK
R L
(o) (o) AUDIO
S Video -(□»■■(O)
(°H2>
I
Video j-<2>k°>ko>fe (2H2>
(MONO) —(o)--(o)
Audio R-K5>{5>(5>(S>
to)
RM-Y188 SUPPLIED REMOTE
OPTIONAL STAND SU-34HS1
(WHD) 40 3/4 "x18 3/8 "x 27"
NOTE:
WHERE THERE ARE CLOSE TOLERANCES INVOLVED IN CABINET BUILDING
OR APPLICATIONS WHICH REQUIRE A GREAT DEGREE OF PRECISION WE
RECOMMEND THAT THE PRODUCT ITSELF BE USED TO MAKE THE ACTUAL
MEASUREMENTS. SONY WILL NOT BE RESPONSIBLE FOR INACCURACIES
IN THE DESIGN OR MANUFACTURE OF ENCLOSURES .
Consumer Integrated Systems • Park Ridge, New Jersey 07656 • FAX (201) 930 7891 • b2b.sel.sony.com
Features and specifications subject to change without notice. • Non-metric weights and measurements are approximate.
