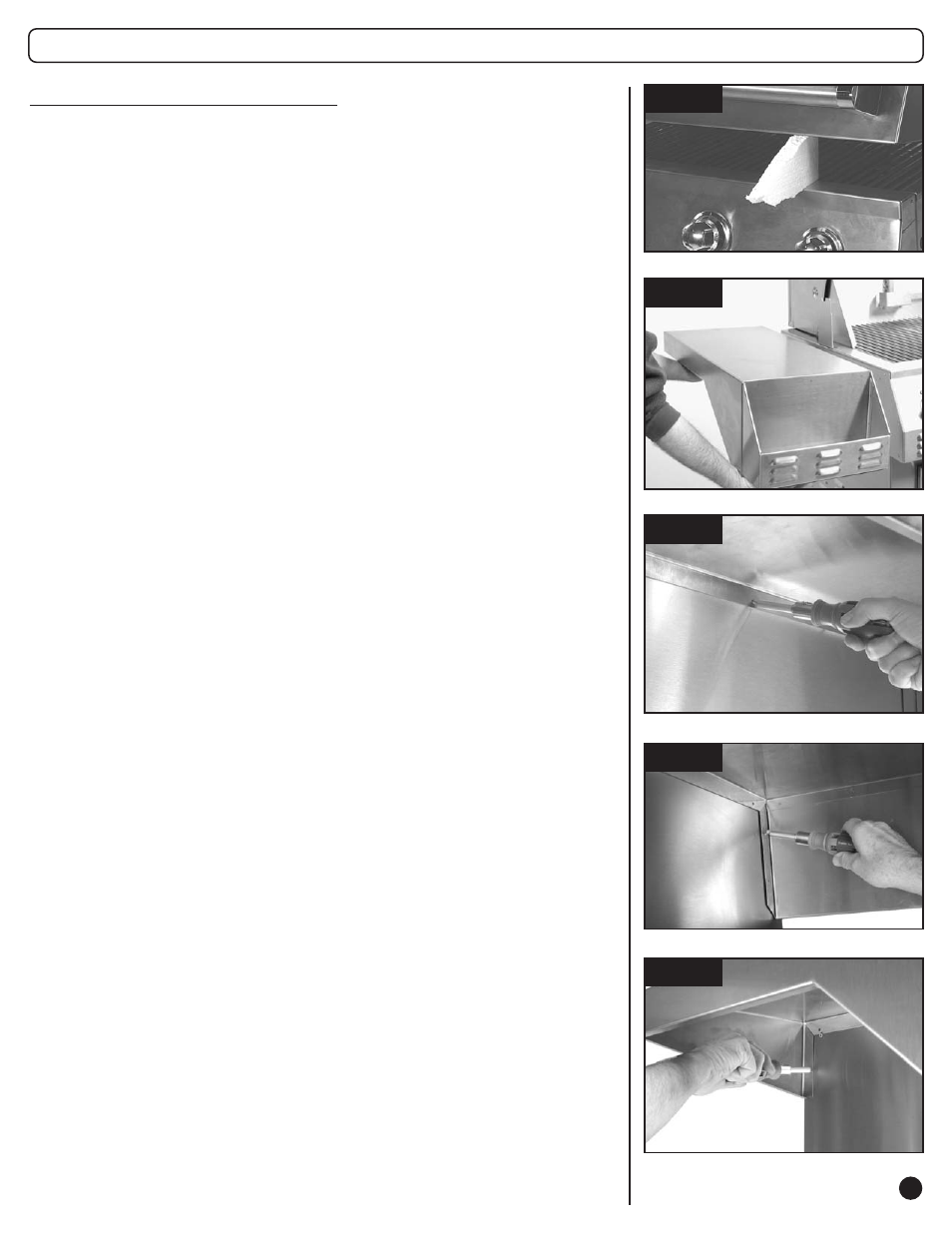

1. Place a piece of styrofoam from the packaging in the grill to
leave the grill hood propped open slightly (Fig. 12).
Left Side Shelf Attachment
Grill Assembly — 8400 Series
Fig. 13
Fig. 14
Fig. 15
Fig. 16
11
Fig. 12
2. The left side shelf attaches to the left side of the grill (Fig. 13).
3. Secure the center of the shelf by inserting (2) self-tapping screws
into the center flange underneath the shelf (Fig. 14). Use a 1/4”
hex nut driver as shown, or use a power tool whenever there is
enough room.
5. Secure the rear of the shelf by inserting (2) self tapping screws
into the rear flange underneath the shelf (Fig. 16).
4. Secure the front of the shelf by inserting (2) self tapping screws
into the front flange underneath the shelf (Fig. 15).
