Setting Up

Connections

Select one of the three ways to connect the TV to the antenna and/or
cable system. It is recommended to cormect an outdoor anteima or a
cable TV system for better picture quality.

Connecting to outdoor antenna

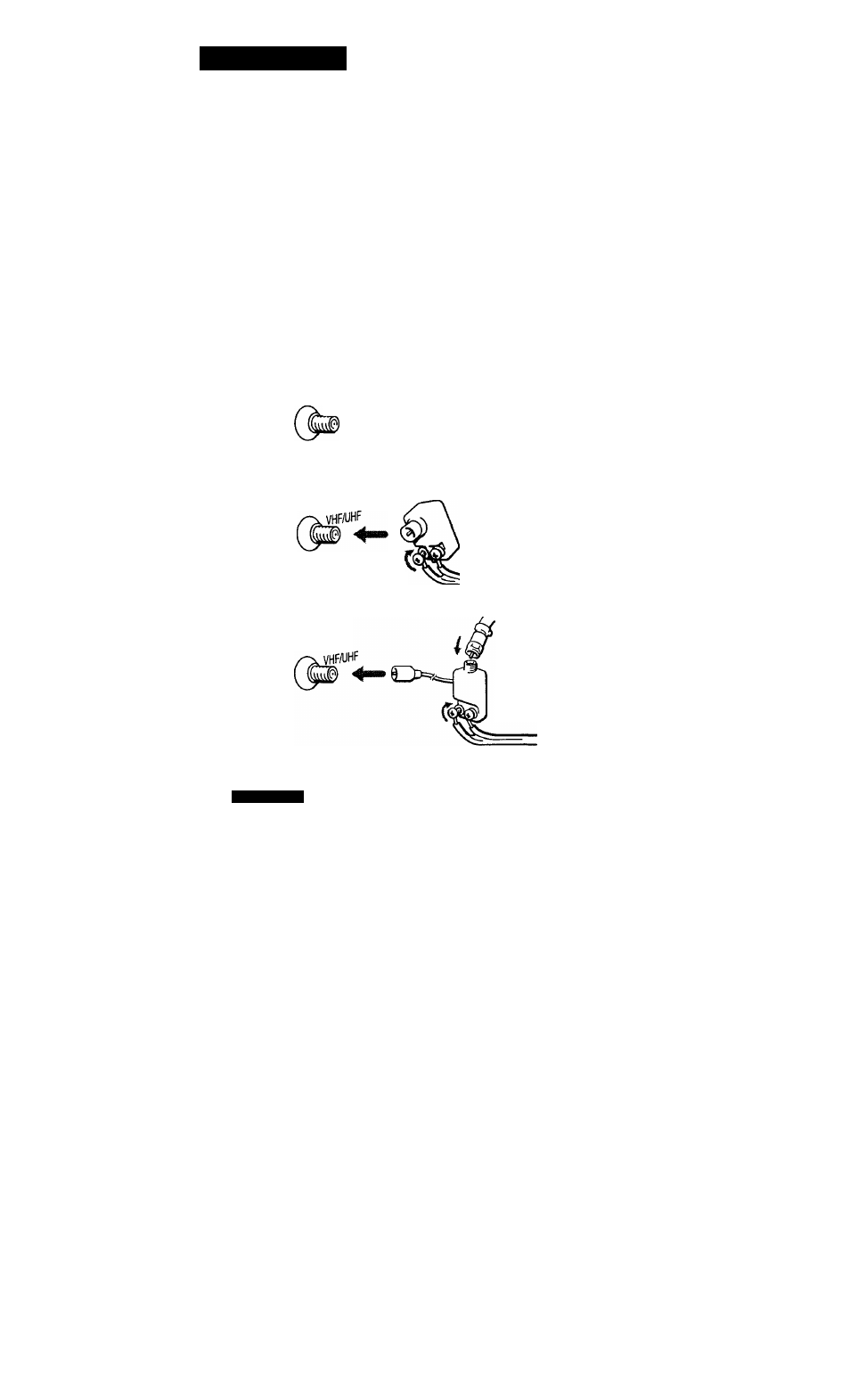

Connect the antenna cable to the VHF-UHF antenna terminal. If the
antenna cable carmot be connected directly to the jack, follow one of the
diagrams below, depending on the type of cable you have.

Notes
• Do not use tools to attach the cable to the VHF/UHF terminal. Doing so may

damage the terminal.

• Most VHF/UHF combination antennas have a signal splitter. Remove the splitter

before attaching the appropriate connector.

• If the U/V mixer is used, snow and noise may appear in the picture when viewing

cable TV channels over 37.

□

(Rear of TV)

. VHP only

. VHF/UHF

VHF/UHF

“1

75-ohm coaxial cable

To attach an F-type connector, see "Attaching
an F-type connector to the antenna cable."

(Rear of TV)

• VHF only

• UHFonly

• VHF/UHF

Loosen the screws and
connect the leads, then
tighten.

Antenna connector (suppiied
except for KV-MT2000/ST2050)

300-ohm twin lead cable

(Rear of TV)

.VHF

and

. UHF

75-ohm coaxial cable

EAC-66 UV mixner
(not supplied)

300-ohm twin lead cable

Setting up
