10
Rotary Evaporator
Figure 7
•

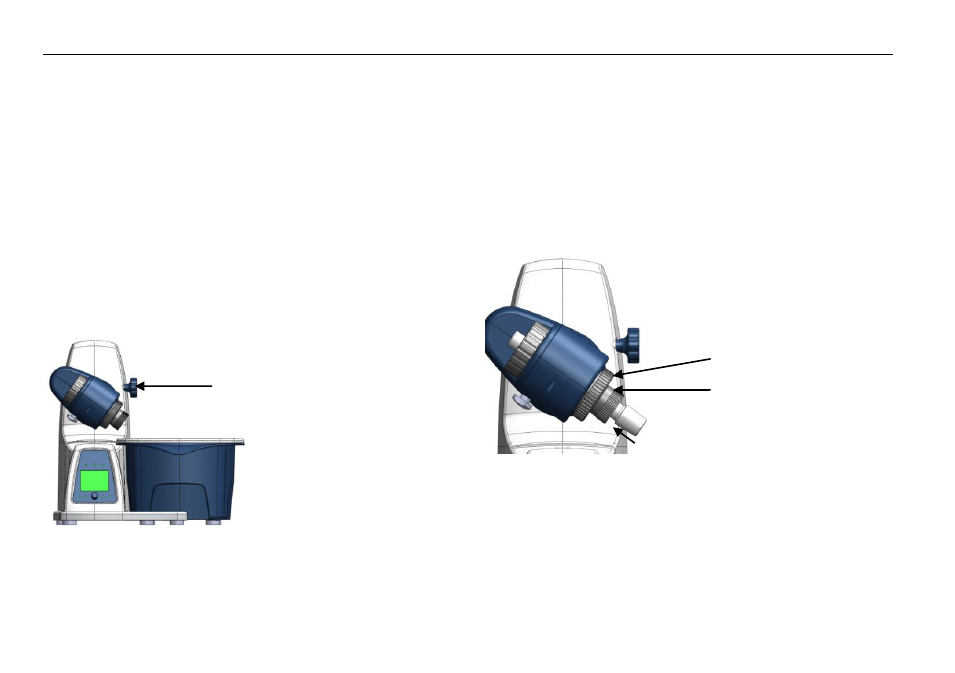

Remove the clamping device for the angle setting of
the rotation drive on the right side of the lift by
rotating the knurled screw (d) counter clockwise.
•
Set the drive at an angle of approx.30° (Figure 8)
•
Then secure the rotation drive from being accidentally
turned by tightening the knurled screw in a clockwise
direction.
Figure 8
•
Open the locking device on the drive head by turning
it 60° counter clockwise (e), (Figure 9).
•
Feed the steam pipe in until it stops.
•
Then lock the locking device by turning it clockwise
by 60°.
•
The plastic screw nut (f) helps loosen tight-fitting
piston ground-in connections (Figure 9).
- Hold the tight-fitting evaporator piston and
counter clockwise (e), and then turn the plastic
screw nut (f) until the evaporator piston neck.
Figure 9
Note: Prior to commissioning, hand-tighten the plastic
screw nut (f) left-aligned.
•
Installing condenser seal (Figure 10 and Figure 11).
d f
e
