Assembly of the PT plate stand
This stand is delivered with a base plate and a rod which is either 600mm, 800mm or
1000mm long. Assembly is very easy as you only have to screw in the rod into the plate
stand and secure it with the counter nut. Attach necessary boss heads such to the rod.

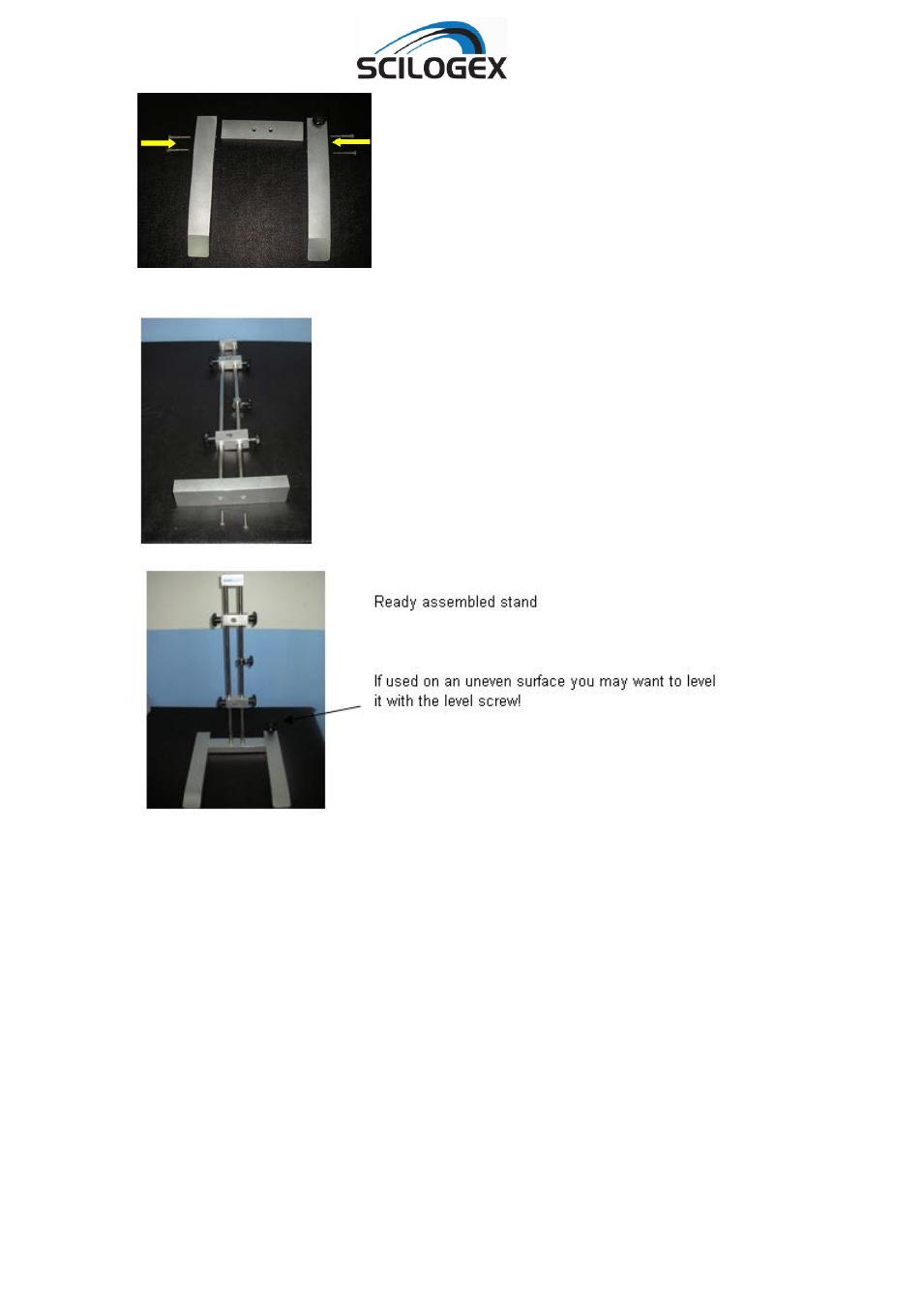

Once this bottom “H” has been fixed, take the
double rod and insert into the middle piece of
the foot stand. Turn it around and fix it with
the other allen key using the smaller screws
for it. Turn it around and fix the drive with the
support rod at the upper boss head and the
strap clamp at the lower boss head.
