Rear View Safety Inc. reserve the right to change or modify product specifications
or measurements without notice
.
Product Info
WARNING
n Make sure the monitor stand is
firmly fixed to secure location.
n
n
The monitor should be situated
away from direct sun light, heat,
water or moisture.
This product is made with precise
electronic components that should
be handled with care.
n
n
The rear view system is intented to be
used when the vehicle is in reverse.
Please do not watch movies or operate
the monitor while driving. It may result
in accident because of distraction.
Do not install the monitor where it may
obstruct drivers view or obstruct an air
bag device.
n Do not attempt to service this product
on your own. If the system has any
problem, please disconnect power to
the unit and contact customer service.
n Dropping the unit may cause possible
mechanical failure.
n Please take special care to the
wire positioning while installing the
rear view system in order to avoid
wiring damage.
Information
IN NO EVENT SHALL SELLER OR
MANUFACTURER BE LIABLE FOR
ANY DIRECT OR
CONSEQUENTIAL DAMAGES OF
ANY NATURE, OR LOSSES OR
EXPENSES RESULTING FROM
ANY DEFECTIVE PRODUCT OR
THE USE OF ANY PRODUCT.
SAFETY PRECAUTIONS
If you have any questions about
this product contact , :
Troubleshooting
Monitor will not power up /
no backlight on power button
• Check fuse
• Check 12v+ to monitor.
• Check ground connection.
No image on screen
• Verify camera is on correct camera input.
• Verify cable is connected to monitor.
• Verify camera is connected to cable.
• Connect known good camera and cable to monitor.
• Make sure monitor is powered up.
PLEASE NOTE THAT THE CAMERA AND MONITOR
BOTH NEED TO HAVE ITS OWN POWER SUPPLY.
RCA VIDEO CABLE MUST BE PLUGGED INTO
CAMERA AND MONITOR.

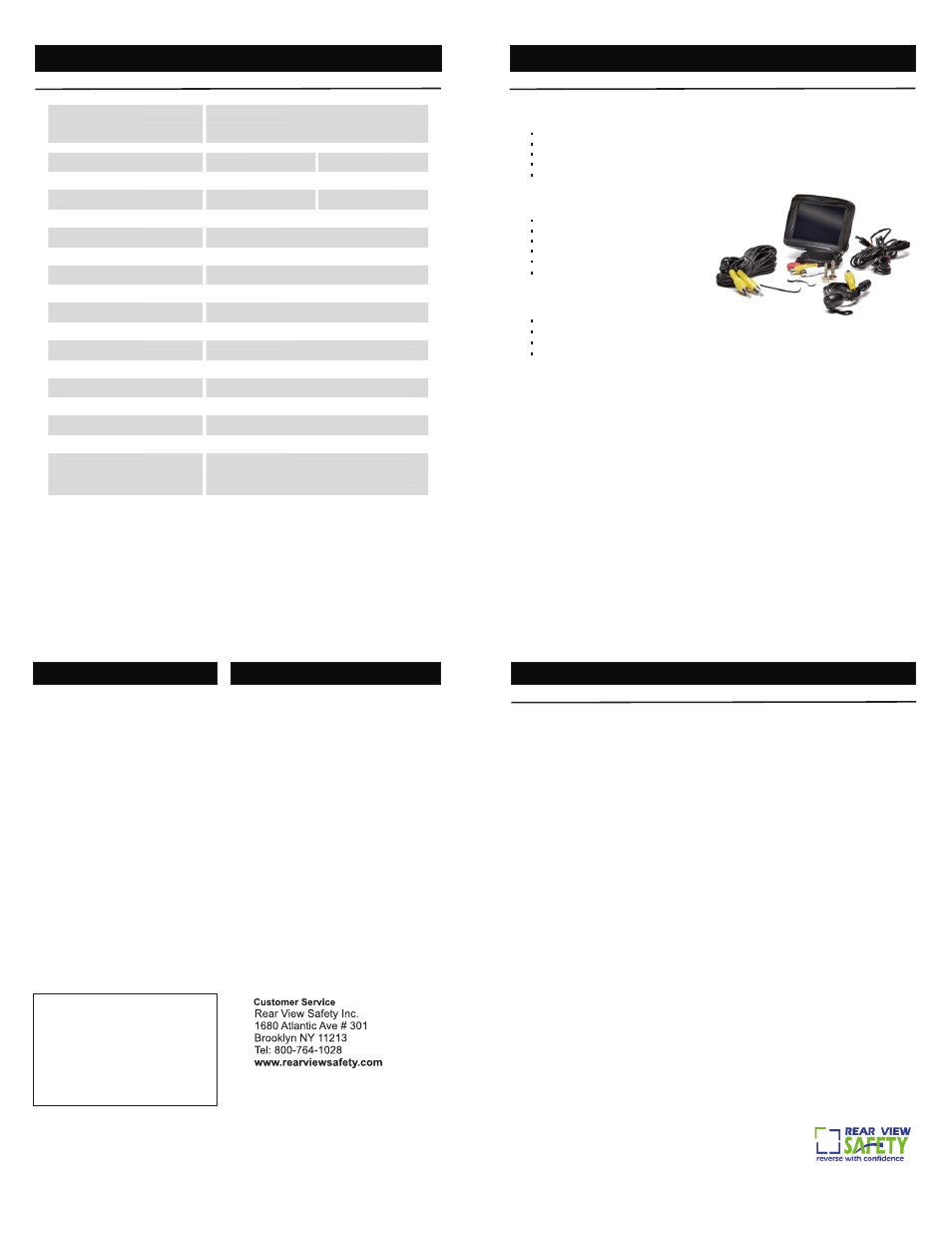

Product Info
Sensor
TV System
Effective Pixel
Electronic Shutter
Scanning System
Sync System
Resolution
Lens Angle
Sensor Area
Video Output
S/N Ratio
Water proof
Minimum Illumination
Operation Temperature
Storage Temperature
Other Items
Current Consumption
Power Supply
CMOS
PAL
648 x 488 pixel LCD screen
1/50-1/100,000 sec
2:1 Interlace
Internal
420 TV Lines
170
5.961mm X 4.276mm
1.0Vp-p 75 Ohm
More than 48db
Ip67
0.1Lux (0 Lux With LED)
-30 C~60 C (Rh95% MAX)
Automatic white balance,
Agc and BLC
DC 12V+10%
-20 C~60 C (Rh95% MAX)
NTSC
1/60-1/100,000 sec
o
No More 300mA
3.5” LCD color monitor
170° CMOS Camera with night vision
15' extension cable for camera
2 Power cables, for Camera and Monitor
Camera bracket for surface-mount installation
Product Includes:
Monitor Dimensions 3.3/4"(W) x 3"(H) x 3/4" (D)
This ingenious backup car system will take away the mystery of what's going on
behind your vehicle. The backup camera system displays the reverse image on
the monitor, duplicating and clarifying the view seen on the rear-view mirror. It's a
perfect solution to get rid of that poor rear-view visibility on any vehicle. The
system is complete with a color 3.5” LCD monitor, 170° CMOS Surface Mount
camera with night vision, and all necessary wires, connectors and mounts. The
system is weather proof, strong and reliable, shock resistant and comes with a
full-year warranty.
Features:
Sharp 648 x 488 pixel LCD screen
Waterproof IP67 rating
12V power supply
Night-vision camera
Small, compact size camera
Easy installation
Installation:
1 – 2 hours
Automotive electronic knowledge an asset
2 screw holes may be required for surface mount installation (camera bracket)
Need to run wiring from the back of the vehicle to the front of the vehicle
170 Camera o
RCA cable
3.5” LCD color monitor
Power cables
