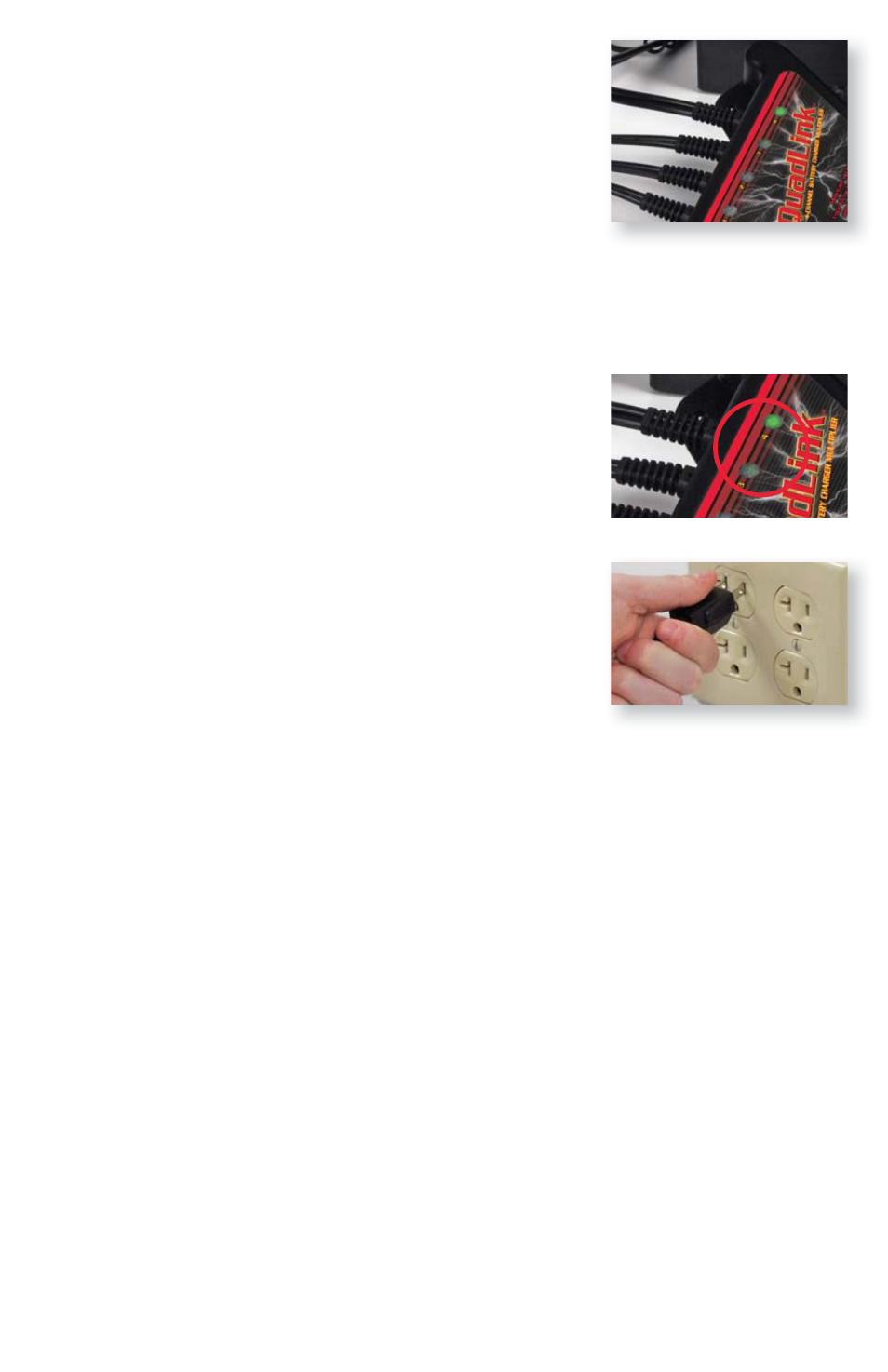

C. A blinking green LED light will indicate the fi rst battery
connected to the QuadLink. Once additional batteries are
connected, a solid glowing green LED light will verify
connection to all additional connected stations. Once the
charger is connected to the QuadLink and plugged into the
AC power source, the charging cycle begins. From this point
forward, the station or battery that is currently “live” or
being charged is indicated by a blinking green LED light.
D. Every 10 minutes, the QuadLink will switch to the next battery in line. If there is no
battery connected to any given channel, the channel will be skipped after a short qualifi -
cation process.
E. Cycle rotation will continue indefi nitely, maintaining the
charge of all 4 batteries for you automatically. The
QuadLink distributes your charger’s full power, moving
from battery to battery in 10-minute increments.
F. If you would like to remove a battery from the chain, it is
always best to unplug the QuadLink from the charger and
the charger from the AC power source fi rst. Once the battery
is disconnected and the units are plugged back in, the
QuadLink will reset and recognize the batteries in the circuit
and skip any open channels after a circuit verifi cation test.
G. If you replace or add a battery to an open channel, again it is always best to unplug
the QuadLink from the charger and the charger from the AC power source fi rst. Once
you have connected the new battery to the circuit and plugged the units back in, the
QuadLink will reset and recognize the additional battery in the circuit and begin the
process again.
Use Comments and Suggestions:
1. If you are putting a vehicle/battery away for an extended period, it is always best to give
the battery a good charge on its own for a few days and test it prior to putting it away for a
season or any extended period. This will assure that proper storage maintenance will occur
without a hitch.
2. If there is ever a power outage, it is likely that during the outage, the charger may and the
QuadLink will consume a small amount of power via LED light indication of the batteries’
state of charge and channel indication. This is common and will not cause noticeable dis-
charge of the batteries in the circuit unless the power is out for an extended period of time.
Note: If either AC input power to the charger or DC power from the charger to the QuadLink
is purposely disconnected for any extended period for any reason, disconnect the QuadLink
from the batteries in the circuit until power is restored. This will assure that the batteries are not
unintentionally discharged.
