© 2011, Pinnacle Products International, Inc. 4 HVF Air Circulator User’s Manual
NEVER LEAVE A FAN
UNATTENDED WHILE
OPERATING OR WHILE
CONNECTED TO A POWER
SOURCE
24” BARREL FAN
Installation and Assembly
1. Fully expand Pipe Frame (item 20) open, and tighten
Frame Brackets (items 21 and 22) with attached bolt .
Locate fan in safe, desired position on level ground, and
connect to approved power source.
Replacement Parts
Item # Description Part Number
1 Front Grille 95-043-0415
2 Fan Barrel 95-001-0400
3 Power Knob 95-027-0130
4 Power Knob Holder 95-031-0325
5 Capacitor 95-004-0235
6 Power Cord 95-026-0255
7 Motor 95-030-0535
8 Motor Mount Assembly 95-030-0555
9 Motor Cooling Fan 95-030-0556
10 Fan Blade Assembly 95-003-0625
11 Rear Grille 95-032-0275
12 Front Leg 95-009-0600
13 Horizontal Adj. Knob 95-015-0150
14 Spacer 95-050-0200
15 Outer Ring Frame 95-024-0320
Item # Description Part Number
16 Vertical Adj. Knob 95-015-0150
17 Wall Mount 95-078-0200
18 Handle Pad 95-007-0100
19 Spacer 95-050-0200
20 Handle Arm 95-006-0300
21 Rear Leg 95-009-0610
22 Large Base Cap 95-024-0410
23 Large Base 95-024-0400
24 Foot Pad 95-023-0240
25 Wall Bracket - L 95-077-0100
26 Wall Bracket - R 95-077-0110
27 Small Base 95-024-0500
28 Small Base Cap 95-024-0500
29 Wheel 95-024-0510
30 Lower Mount 95-024-0325

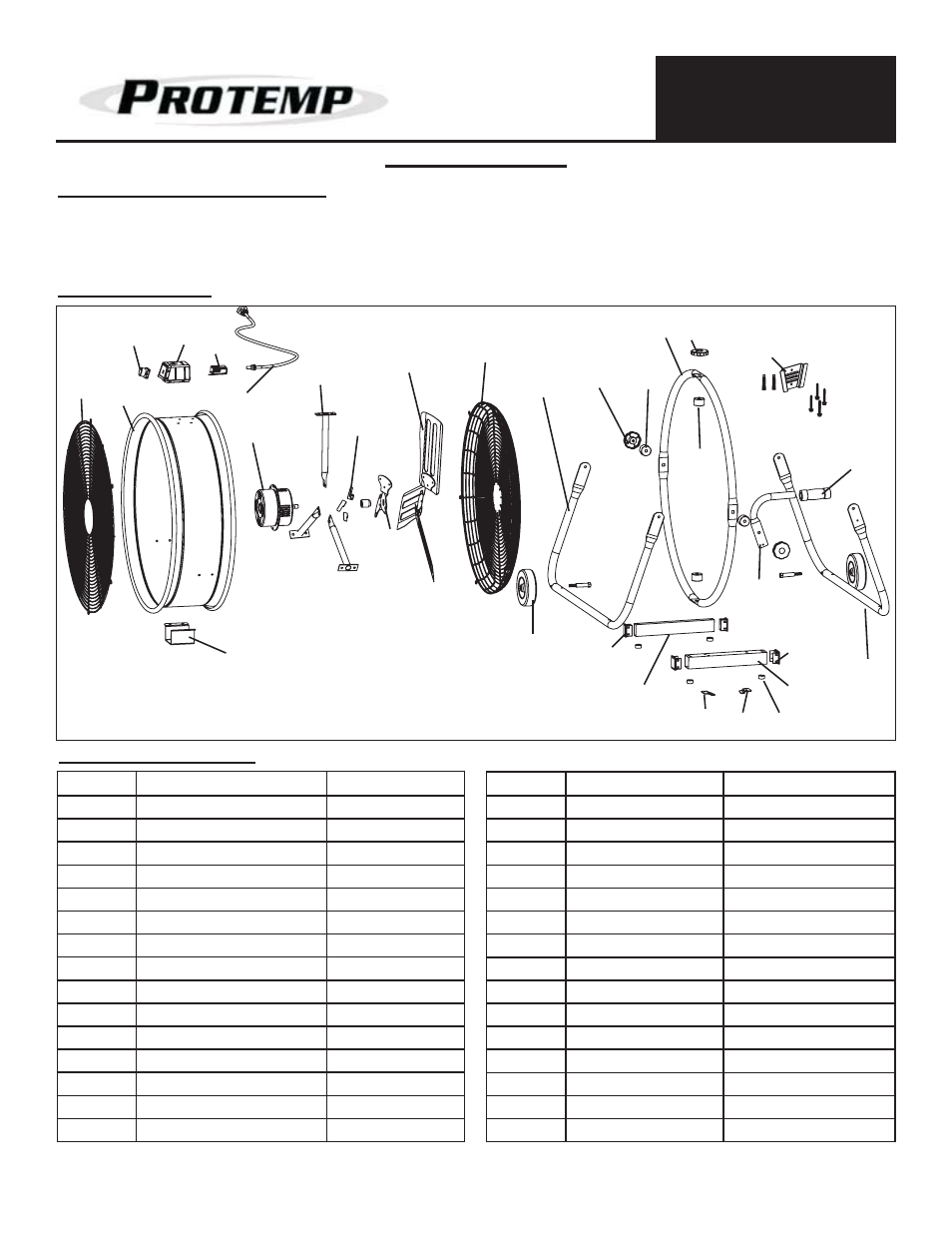

Exploded View
1
2
3 4 5
7
8
9
10
11
12
13 14
16
19
17
18
21
20
22
23
25 26
27
Figure 2: Exploded
View of CL-24O-DDF
28
24
29
30
15
6
