Pinnacle Products International, Inc. Propane Forced Air User’s Manual
Page 7
1
2
6
7
8
12
13
14
15
16 17
25
20
23
22
19
5
28
27
4
24
3
9
11
10
18
21
26

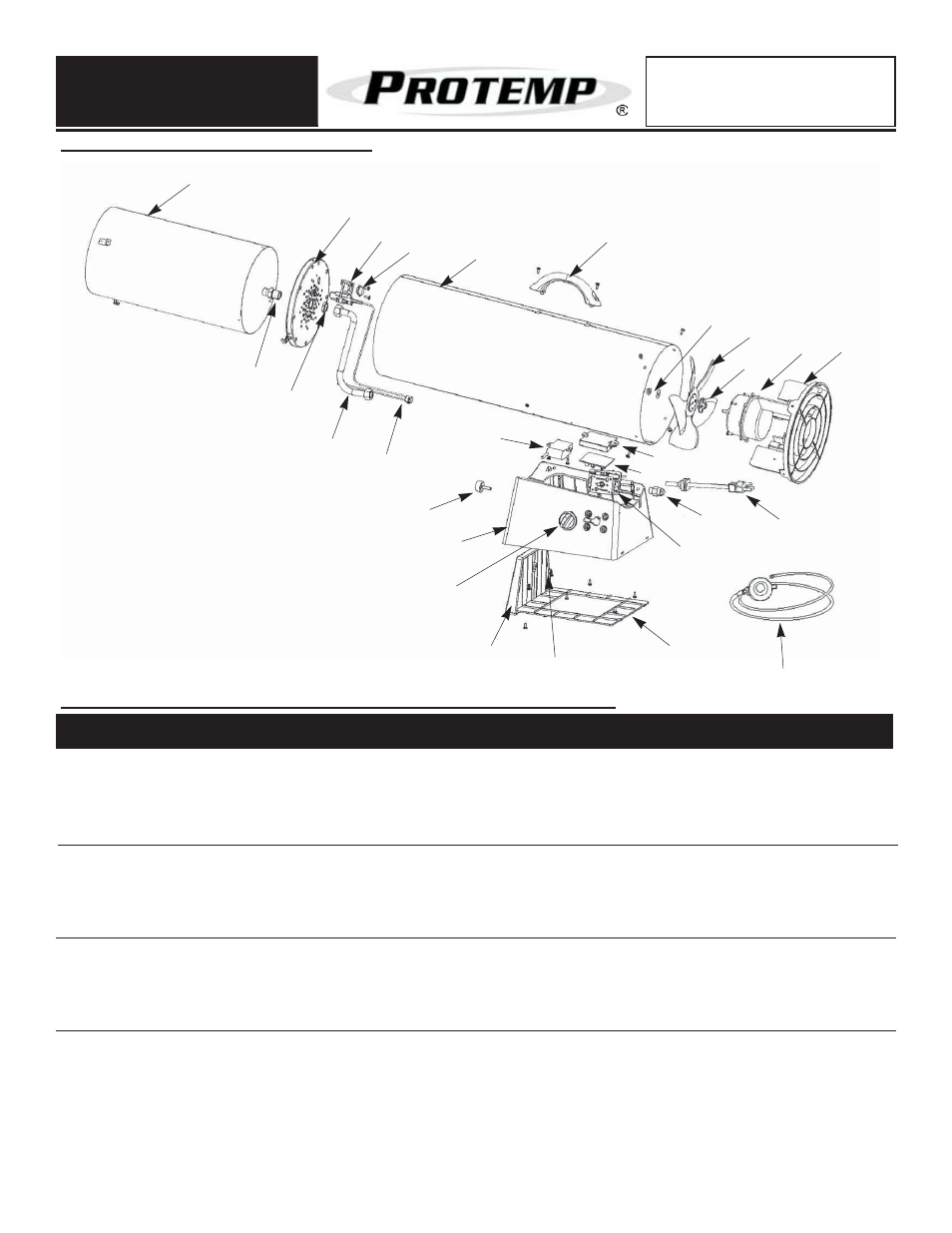

Figure 6. Exploded View - All Models
Exploded Drawing/Part Breakdown
11 Nozzle Nut 22-518-0001 22-518-0001 22-518-0001 22-518-0002 1
12 Handle 22-511-0004 22-511-0005 22-511-0005 22-511-0005 1
13 Flange Hex Nut 22-518-0003 22-518-0003 22-518-0003 22-518-0003 1
14 Fan 22-514-0001 22-514-0001 22-514-0002 22-514-0002 1
15 Cushion Pad 22-509-0001 22-509-0001 22-509-0001 22-509-0001 1
16 Motor Assembly 22-061-0015 22-061-0015 22-061-0016 22-061-0016 1
17 Guard 22-101-0003 22-101-0003 22-101-0004 22-101-0004 1
18 Round Bolt 22-503-0002 22-503-0002 22-503-0003 22-503-0003 1
19 Valve Assembly 22-011-0005 22-011-0017 22-011-0018 22-011-0008 1
20 Inlet Connector 22-507-0003 22-507-0003 22-507-0003 22-507-0003 1
21 Spark Module – 22-604-0005 22-604-0005 22-604-0005 1
22 PCB Assembly 22-521-0001 22-521-0002 22-521-0002 22-521-0002 1
23 PCB Case 22-506-0001 22-506-0001 22-506-0001 22-506-0001 1
24 Valve Knob 22-516-0001 22-516-0001 22-516-0001 22-516-0001 1
25 Power Cord Assembly 22-131-0001 22-131-0001 22-131-0001 22-131-0001 1
26 Thermal Switch Cable 22-601-0001 22-601-0001 22-601-0001 22-601-0001 1
27 Hex Nut 22-518-0004 22-518-0004 22-518-0004 22-518-0004 1
28 Regulator Assembly 22-041-0004 22-041-0004 22-041-0005 22-041-0005 1
Repair Parts List for Propane Construction Heater (Continued)
Always be sure to follow proper maintenance procedures. This should include cleaning the inside the heater
once a month, and checking the spark gap at least once a heating season.
Propane
Forced Air Heaters
NEVER LEAVE HEATER UNATTENDED
WHILE BURNING, CONNECTED TO A
POWER SOURCE, OR WHILE
CONNECTED TO A FUEL SOURCE
Reference Part Number for Models:
Number Description PT-40-GFA-A PT-60V-GFA PT-125V-GFA PT-150V-GFA-A Quantity
