Pro-Ject Audio Systems Phono Box S User Manual

Page 4

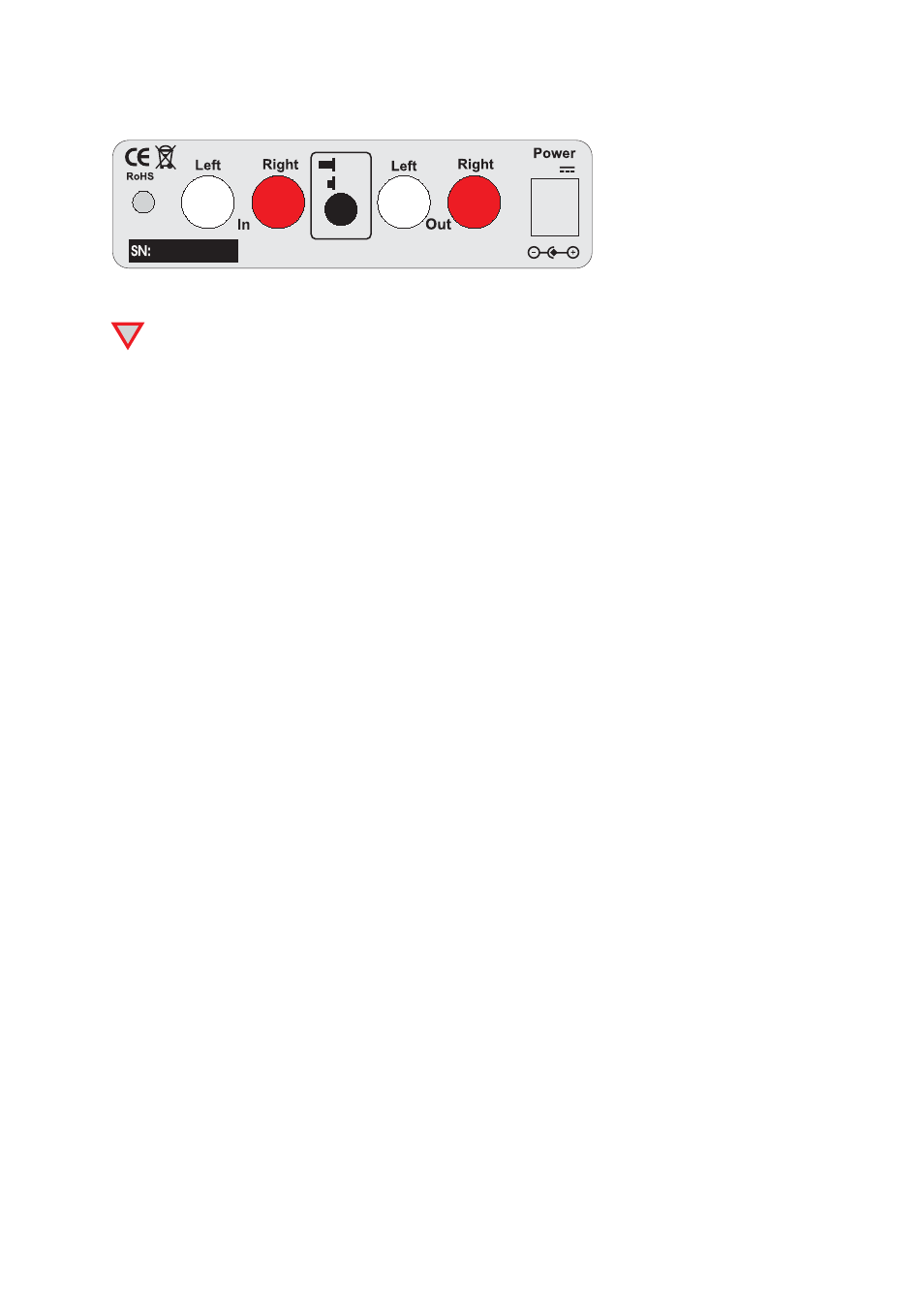

Connectors

Pro-Ject Audio Systems, Vienna, Austria

18V

OFF

Subsonic

Make all connections whilst the phono amplifier is disconnected from the power supply.
Take care to connect the left and right channels correctly. The right channel is usually marked red, the

left channel black or white.
Do not connect the phono amplifiers output to a phono input (sometimes labelled gram, disc or RIAA)
on the amplifier.
Never use any other power supply than the one supplied with the unit.

Connecting the record player

Connect the tonearm signal lead to the In of the phono amplifier. The earthing wire may be connected to the
screw terminal if you encounter hum problems when using the record player.

Connection to the amplifier

Connect the Out of the phono amplifier to a line input (such as AUX, CD, Tuner, Tape or Video) on your

amplifier.

Mains power connection

Connect the low voltage plug from the power supply to the Power 18V

socket of the phono amplifier before

connecting the power supply to the mains.

Stand-By

The button on the front panel of the unit alternately turns the power on or returns it to standby mode. The blue
LED above the stand-by push button shows that the unit is switched on.
