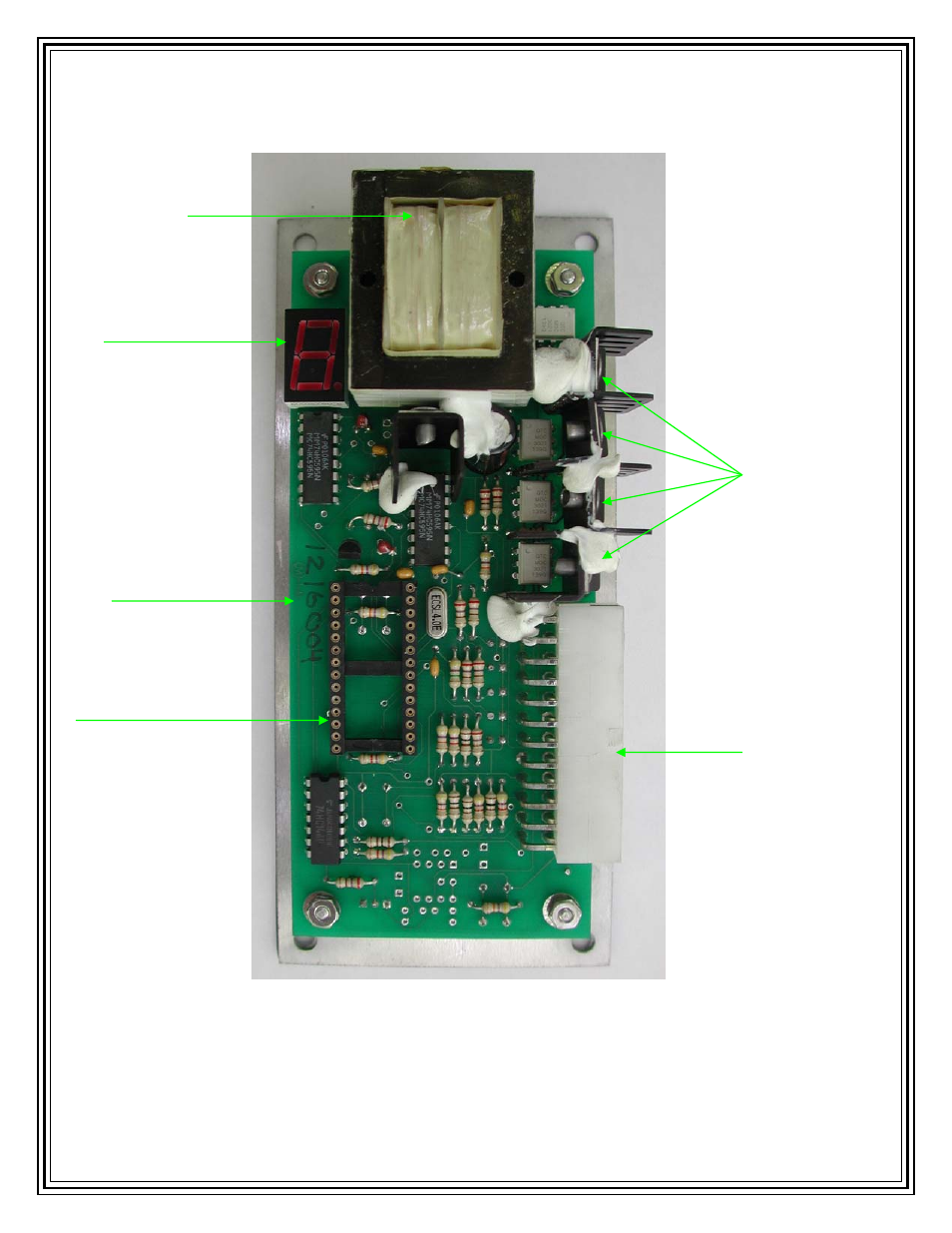

In order to utilize the full capabilities of the Control Board, the homeowner should be familiar with the
backside of the Control Board. FIGURE 7 provides additional information about the major components on
the component side of the control board.
AC Transformer
Converts 120VAC
To 9.6VAC for
Board operation.
7 Segment Display
Used for Providing
Trouble Codes
AC Motor &
Igniter Control.
Control Board
Serial Number
Personality Module
Socket
Molex Connector
used to interface
stove wiring harness
FIGURE 7: CONTROL BOARD COMPONENT SIDE
