6

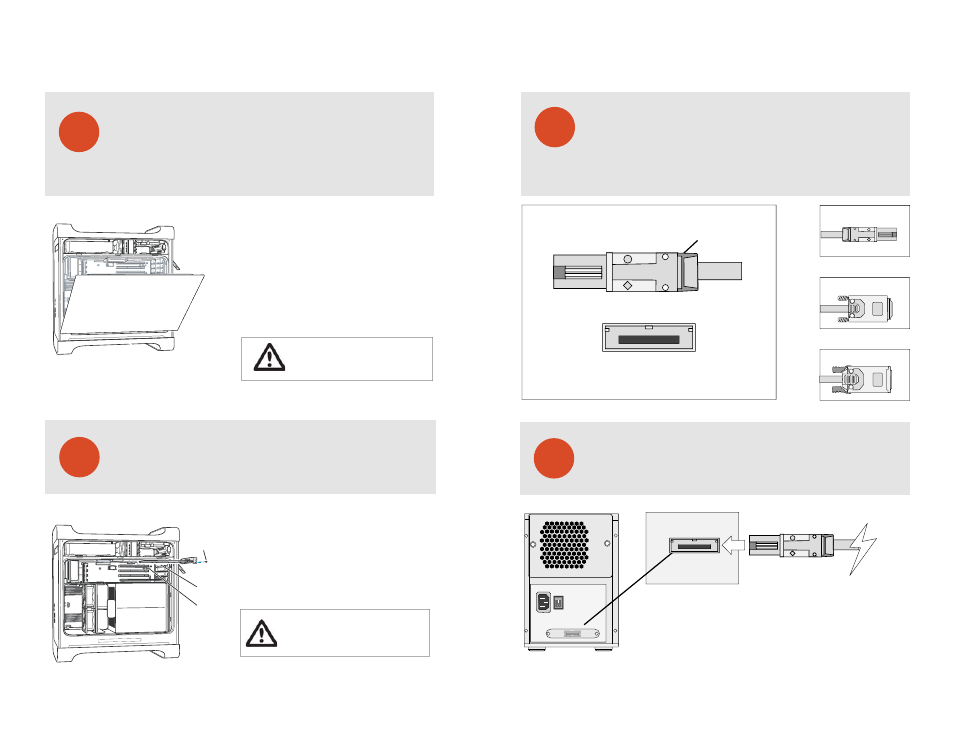

HBA/RAID Controller Installation
Your EB4-MS features a RAID-ready JBOD architecture. This provides the
best support for a wide range of host bus adapters & PCI RAID controllers.
Always follow your HBA/RAID controller’s installation procedure to ensure
proper operation.
WARNING: Allow a few minutes for the internal
computer compenents to cool down before
opening your computer system.
1. Touch the metal PCI slot covers on the back
of your computer to discharge any static electricity.
2. Unplug ALL cables from your computer, and remove
the side access panel according to your system type.
3. Apple G5 users must first remove the deflector cover
and place it on a clean, safe surface.
NOTE: Remember to replace the air deflector after you
have finished installing your HBA/RAID controller card.
7
Please follow your HBA/RAID controller’s driver installation notes to ensure
operation & hassle free configuration.
HBA/RAID Controller Installation - Cont’d
1. Remove the PCI slot cover plate from an available
PCI slot. Consult your HBA or video capture card
for recommended slot postions.
2. Install & secure your PCI controller card into the slot
and firmly press the card into place.
3. Close and replace the system panel. Port access opening
PCI slot
Reinstall the screw
to secure the card
in place.
WARNING: To minimize the chance of electrical
shock, always follow proper saftey rules when
working with electrical components.
EB4MS
8
Introduction to Multi-Lane Cable Types
Multi-Lane Interface Overview
Your EB4-MS is equipped with industry standard 4x SFF8088 (MiniSAS)
Multi-Lane interface ports. The correct cable type is detirmined by the
HBA or RAID controller you have seleceted. Please visit our website at
www.proavio.com to learn more about cable options for your HBA.
+
+
SFF8088 [Mini SAS]
+
+
SFF8470 [Screw Type]
SFF8470 [Latch Type]
+
+
9
Ensure that both connectors are properly secured & fastned. Most commom
issues are related to poor cable connection. Do not over tighten thumbscrews.
Connecting Your EB4-MS - Cable Connections
Figure 5.
Port 1 [Disks 1-4]
Quick start guide
EB4MS | Multi-Lane Storage Array for Digital Media Production PROAVIO TM
SFF8088 [Mini SAS]
SFF8088 [Recieving Connector View]
Release clip
Figure 4.
+
+
