Manual No. 4801-5202 rev 4-03 Page 4 of 4
• Tie the 5-conductor, pump, and motor cables to the cabinet to prevent movement of the cable
during operation.
• Replace the evaporative pads removed in Step 1 and secure the top of the PolarCool cabinet.
• Mount the External Control box in the desired location taking into account the distance between
the External Control Box and the PolarCool cabinet must be reached with the supplied 5-
conductor cable.

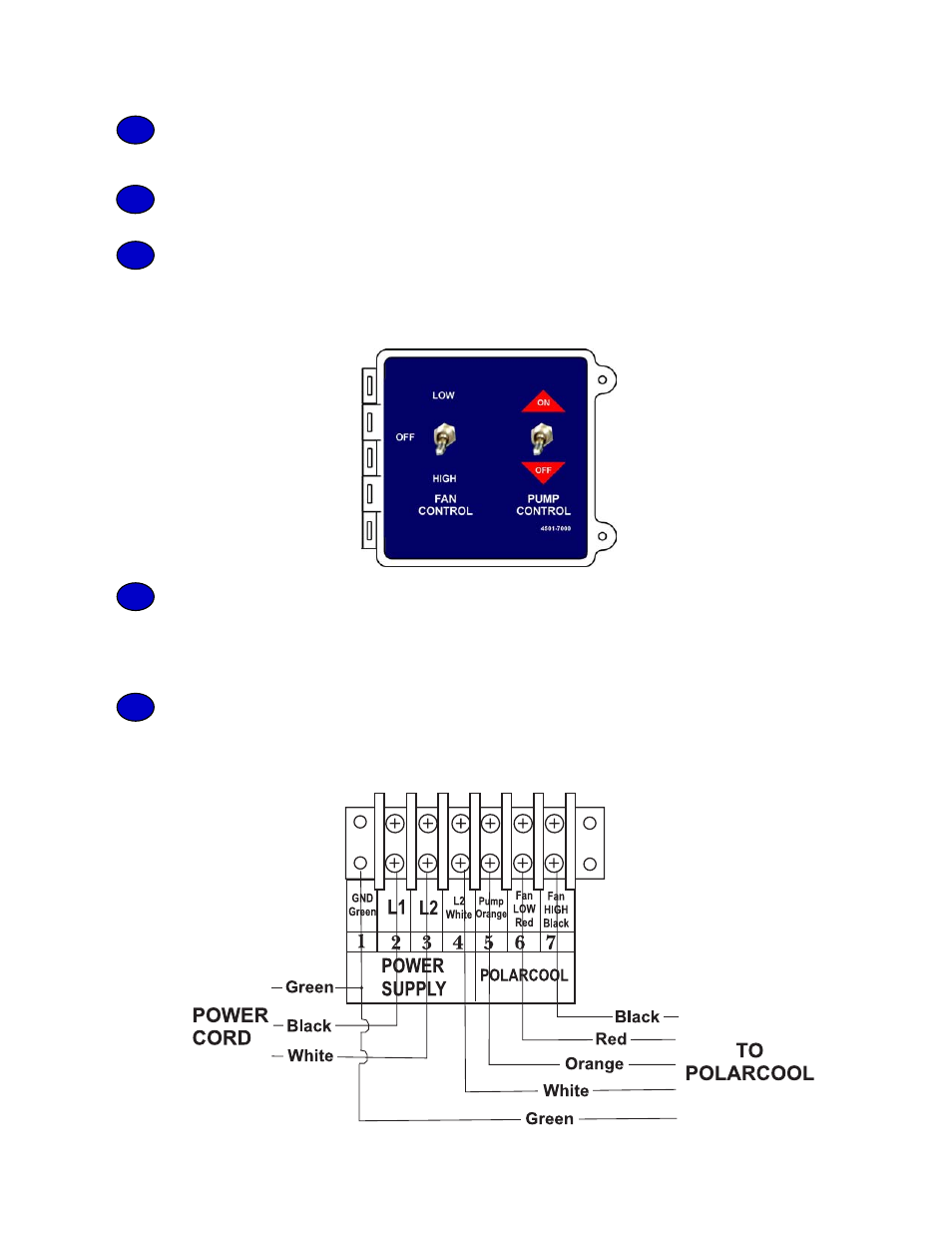

• In the External Control Box connect the 5-conductor cable to the lugs as shown in diagram
below.
• Then connect the power cord removed in Step 2 to the lugs as shown.
• Check the power cord for abrasions or cuts.
• Discard and replace if necessary.
• Installation of Dual-Speed External Control (6607-8072) complete.
4
5
6
7
8
External Control Box
Dual-Speed (6607-8072)
PolarCool External Control Box
Dual-Speed Connections
