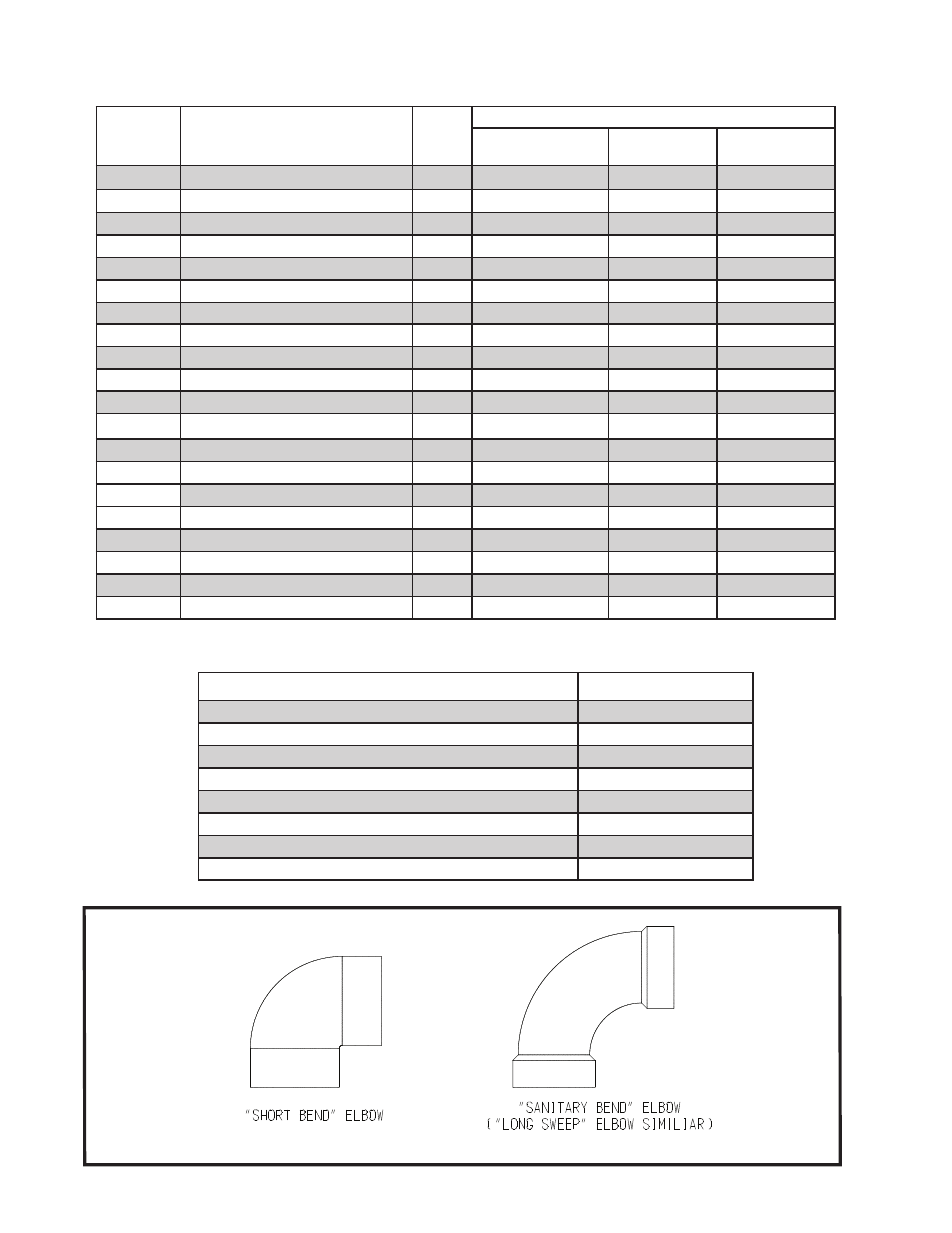

TABLE 1.6: CROWN CPVC/PVC VENT KIT CONTENTS
CROWN PN
DESCRIPTION
SIZE
QTY PER VENT KIT
PN 230595
(BWC070/090/120/151)
PN 230596
(BWC150)
PN 230597
(BWC225)
230840
CPVC/PVC VENT/INTAKE ADAPTOR
3”
1
0
0
230843
CPVC VENT ADAPTOR
3”
0
1
0
230844
CPVC VENT ADAPTOR
4”
0
0
1
230854
INTAKE ADAPTOR
4”
0
1
1
230841
VENT/INTAKE ADAPTOR GASKET
N/A
1
0
0
230855
FLUE GAS SAMPLE CAP
N/A
1
1
1
230823
30” STRAIGHT CPVC SECTION
3”
1
1
0
230824
30” STRAIGHT CPVC SECTION
4”
0
0
1
230813
90 DEG CPVC ELBOW
3”
1
1
0
230814
90 DEG CPVC ELBOW
4”
0
0
1
230803
PVC TEE
3”
2
1
0
230804
PVC TEE
4”
0
1
2
230833
RODENT SCREEN
3”
2
1
0
230834
RODENT SCREEN
4”
0
1
2
230865
IPS MULTI-PURPOSE 790 CEMENT
4 oz
1
1
1
230860
IPS P-70 PRIMER
4 oz
1
1
1
240550
TAPPED CONDENSATE TRAP PLUG
N/A
0
1
1
240560
66” OF 1/2” CLEAR PVC TUBING
N/A
0
1
1
240555
90° HOSE BARB
N/A
0
2
2
240557
1/2” HOSE CLAMP
N/A
0
2
2
TABLE 1.7: VENT/ AIR INTAKE FITTING EQUIVALENT LENGTH
VENT FITTING
EQUIVALENT LENGTH (ft)
3” 90 ELBOW (“SANITARY BEND”)
4.0
4” 90 ELBOW (“SANITARY BEND”)
5.5
3” 90 ELBOW (“SHORT BEND” )
10.0
4” 90 ELBOW (“SHORT BEND”)
13.5
3” 45 ELBOW
2.0
4” 45 ELBOW
3.0
3” COUPLING
0.0
4” COUPLING
0.0
FIGURE 1.8: ELBOWS
