Cub Cadet 930 SWE - Manual (Page 18)

Belt Replacement
Belt Removal Preparation
Remove the chute crank rod from the chute crank assembly 1.
by removing the hair pin clip shown in Fig. 7-1. Move the
chute crank rod away from the assembly as shown.
Remove the plastic belt cover on the front of the engine 2.
by removing the three self-tapping screws. See Fig. 7-2.
Loosen the bolt shown in Fig. 7-3 securing the belt 3.
keeper bracket and remove the other bolt. Push the belt
keeper bracket up off the engine pulley. See Fig. 7-3.
Auger Belt Replacement
To remove and replace your snow thrower’s auger belt,
proceed as follows:
Remove the bow tie clip and flat washer from the 1.
ferrule in order to disconnect the auger idler rod from
the brake bracket assembly. See Fig. 7-4.
NOTE: Make sure to maintain the location of the
ferrule on the idler rod.
Slip the auger control belt (the front belt) off the engine 2.
pulley.

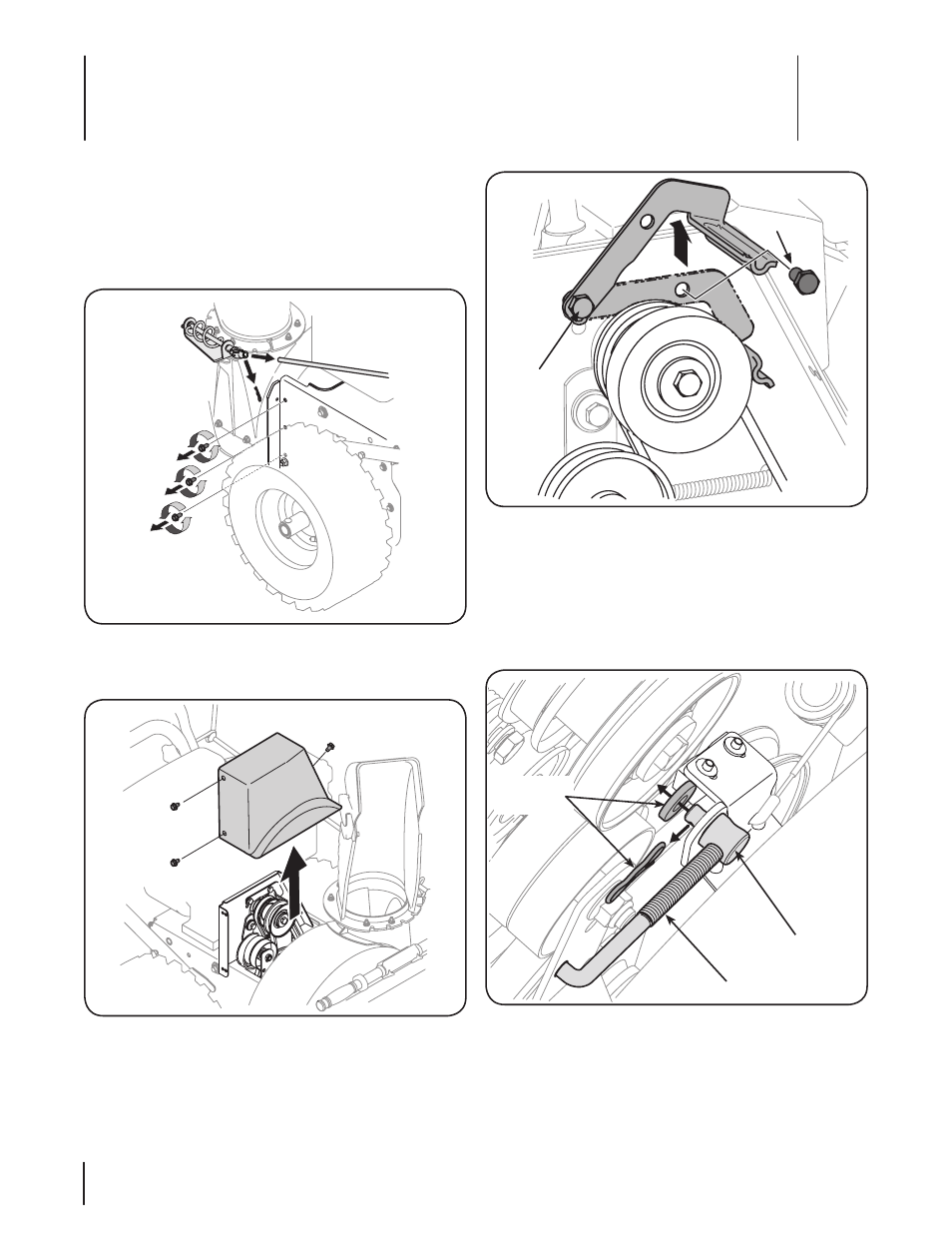

Figure 7-4
Figure 7-1
Figure 7-2
Figure 7-3
Loosen
Remove
Ferrule
Auger Idler Rod
Hairpin Clip
and Washer
Service
7
18
