IIT TE EM M Q QT TY Y P PA AR RT T N N0 0.. D DE ES SC CR RIIP PT TIIO ON N
1 1 C2010045 BURNER INSERT GEN STEAM 6.10/6.20/10.10 WELDED
2 1 C6015032 SEAL, BURNER ø 50 MM
3 1 C2615351 RESTRICTION FLANGE ø 210 RG128
4 1 C2010014 BURNER, ø 50 x150, 20 KW
5 1 C2614907 CLAMPING FLANGE, STEAM GENERATOR, BURNER, ø 50
6 1 C4018000 MONITORING ELECTRODE
7 1 C4018002 AUTO-IGNITION ELECTRODE
8 2 C6015037 SEAL, ELECTRODE
9 1 C5018006 BURNER BLOWER, RG128, 110V
10 2 C6015034 SEAL, FAN RG128/148
11 1 C6016000 VENTURI 40 KW
12 1 C6016009 GAS VALVE, HONEYWELL, 110V
13 1 C6017009 ORIFICE, ø 05.65 NAT GAS
14 1 C6016030 SEALING RING, GAS SCREEN
15 1 C2615367 FLANGE, BURNER
16 1 C5015004 INSPECTION GLASS, BURNER
17 1 C2614845 COVER, INSPECTION GLASS, BURNER
18 2 C6015039 SEAL, INSPECTION GLASS, BURNER
19 5 C8012001 SCREW, M5x12, FILLISTER HD, TORX
20 A/R C7014000 COPPER PASTE
21 1 C6016023 AUTOMATIC FIRING DEVICE, 110V, AUTO-IGNITION
22 1 C6016025 COVER, AUTOMATIC FIRING DEVICE
23 1 C2616516 GAS HOSE, 580 LG, PREASSEMBLED
24 1 111595 GASKET, CORK, BURNER VENTURI, COMBI
25 8 C8017010 FLANGE NUT
26 6 C8017008 NUT, LOCKING, SERRATED
27 1 300484 TERM, PUSHON, .110, 22-16AWG SEMI INSUL.
28 1 20351 TERM, SLIPON FULL INSUL .032X.25 TAB 22-18AWG
CLEVELAND RANGE, LLC
1333 East 179th St., Cleveland, Ohio 44110-2574
THIS DESIGN DESCRIBES A PROPRIETARY ITEM AND IS THE PROPERTY OF CLEVELAND RANGE. THIS DRAWING IS NOT TO BE COPIED OR USED WITHOUT THE APPROVAL OF CLEVELAND RANGE.
TOLERANCES
(UNLESS OTHERWISE
NOTED)
DO NOT SCALE
PRINTED DRAWING
DRAWN BY DATE
TITLE
REV SHEET OF DRAWING NO. SIZE ANGULAR
`
`
DECIMAL
0.030
1∞
ASSEMBLY, BURNER INSERT, GEN, GAS, 6.20/10.10, NAT
SFriske 6/17/2005
D B C2314900
1 1
11 C2010045 BURNER INSERT GEN STEAM 6.10/6.20/10.10 WELDED
2 1 C6015032 SEAL, BURNER ÿ 50 MM P3
3 1 C2615351 RESTRICTION FLANGE ÿ210 RG128
4 1 C2010014 BURNER, ÿ 50 x150, 20 KW, P3
5 1 C2614907 CLAMPING FLANGE, STEAM GENERATOR, BURNER, ÿ50
6 1 C4018000 MONITORING ELECTRODE P3
7 1 C4018002 AUTO-IGNITION ELECTRODE P3
8 2 C6015037 SEAL, ELECTRODE P3
9 1 C5018006 BURNER BLOWER, RG128, 110V P3
10 2 C6015034 SEAL, FAN RG128/148 P3
11 1 C6016000 VENTURI 40 KW
12 1 C6016009 GAS VALVE, HONEYWELL, 110V, P3
13 1 C6017004 ORIFICE, ÿ5.50
14 1 C6016030 SEALING RING, GAS SCREEN, P3
15 1 C2615367 FLANGE, BURNER
16 1 C5015004 INSPECTION GLASS, BURNER P3
17 1 C2614845 COVER, INSPECTION GLASS, BURNER P3
18 2 C6015039 SEAL, INSPECTION GLASS, BURNER P3
19 5 C8012001 SCREW, M5x12, FILLISTER HD, TORX
20 A/R C7014000 COPPER PASTE
21 1 C6016023 AUTOMATIC FIRING DEVICE, 110V, AUTO-IGNITION, P3
22 1 C6016025 COVER, AUTOMATIC FIRING DEVICE
23 1 C2616516 GAS HOSE, 580 LG, PREASSEMBLED
24 1 111595 GASKET, CORK, BURNER VENTURI, COMBI
25 8 C8017010 FLANGE NUT, M5, A4, P3
26 6 C8017008 NUT, LOCKING, SERRATED, M3 A2 P3
27 1 300484 TERM, PUSHON, .110, 22-16AWG SEMI INSUL.
28 1 20351 TERM, SLIPON FULL INSUL .032X.25 TAB 22-18AWG
ITEM QTY PART N0. DESCRIPTION
(NOT SHOWN)
(NOT SHOWN)
(NOT SHOWN)
(NOT SHOWN)
10
26
26
17
18
16
18
6
8
1
2
15
20
25
4
5
21 23 9
22
12
13
14
11
19
24
20 25
3
10
26
7
8
27 28
21
C2314900 B
0706

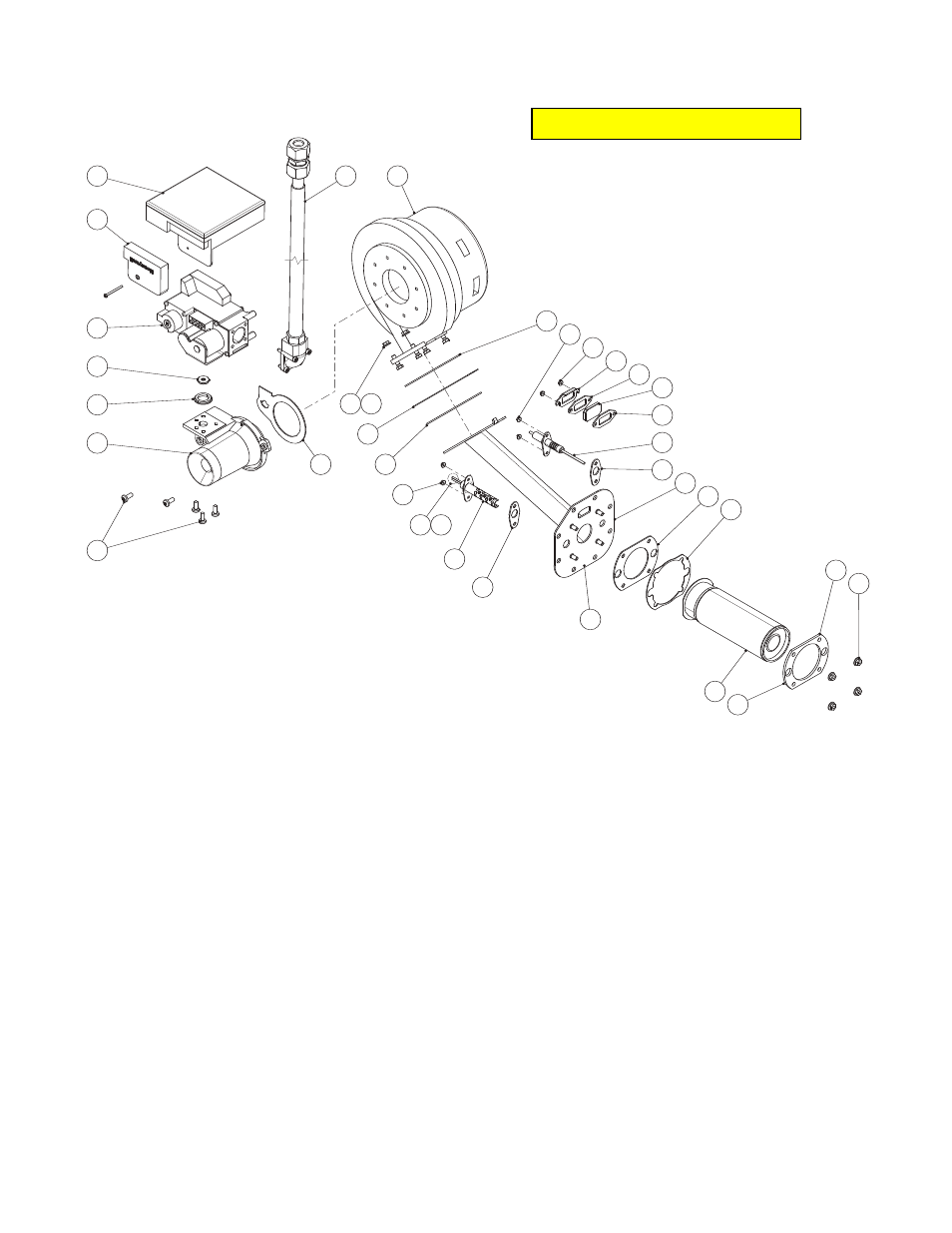

ASSEMBLY, BURNER INSERT, STEAM GENERATOR, NAT GAS
OGB 6.20 & 10.10 MODELS
55
Burner Intake Hose C701210023675
