- 9 -
GENERAL GLASS INFORMATION
Only glass approved for use in these
products may be used for replacement.
1. The use of substitute glass will void all product
warranties.
2. Care must be taken to avoid breakage of the glass.
Under no circumstances should this fireplace
be operated without the front glass or with a
broken glass. Replacement of the glass (with
gasket) as supplied by the manufacturer
should be done by a licenced qualified
service person.
OPERATING INSTRUCTIONS
LOUVRE REMOVAL
A232

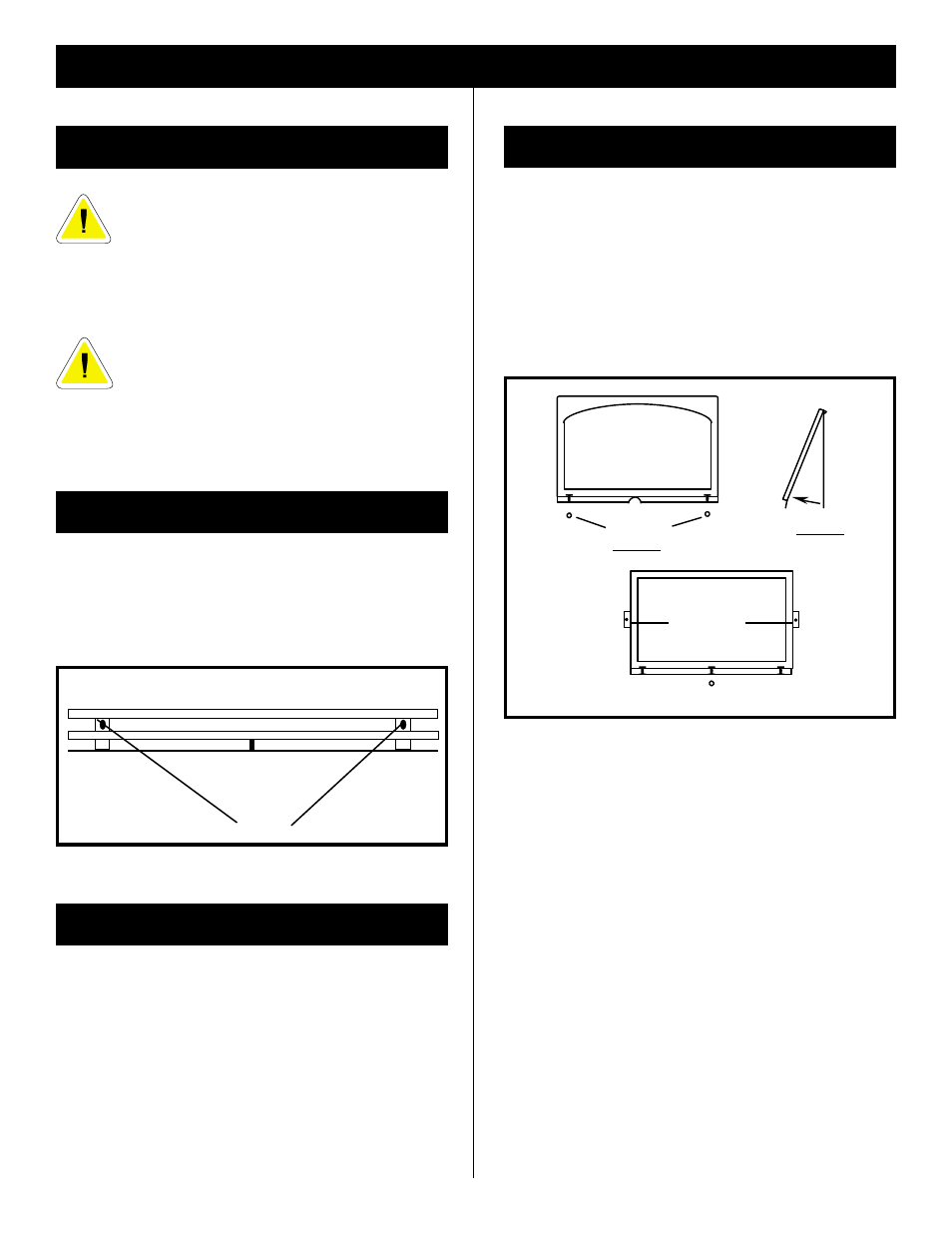

To remove louvres first remove the two (2) screws (Fig. 17)
fastening the louvre assembly to the fireplace. Lift the
louvre assembly straight out sliding the back guides out of
the fireplace body. (To reinstall, reverse).
A232
1.
Remove the two (2) outer 3/8" nuts holding the frame
window brass trim in place. (Fig. 18)
2. Remove the frame window brass trim by moving it
straight forward.
TRIM REMOVAL
GLASS REMOVAL
A232
1 . Remove frame window brass trim (See Trim Removal
section)
2. Remove remaining bottom 3/8" nut fat the bottom of
the frame window.
3. Remove 3/8" nut from each side of the frame window
(Fig. 18).
4. Remove frame window by pulling it forward and up.
Fig. 18
OUTER NUTS
DRAWING 1
GLASS
FRAME
DRAWING 2
BOTTOM NUT
Side Nuts
Fig. 17
Front View
Screws
