COOK CHILL SYSTEMS
Cook/Chill Systems
SECT.
XIV
PAGE
53
0907

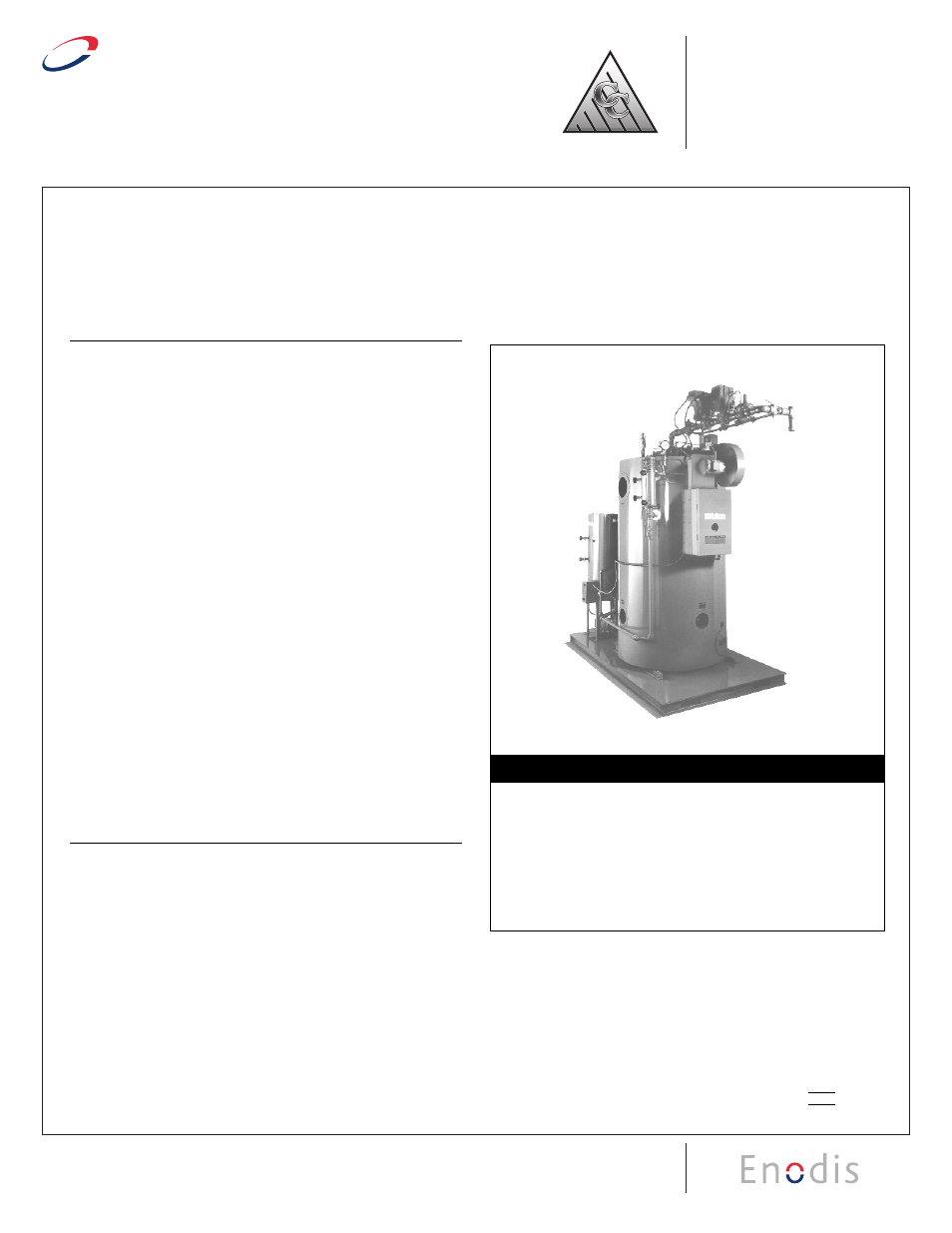

GAS FIRED STEAM BOILERS MODELS: GFB-6 GFB-15 GFB-30 GFB-60
GFB-10 GFB-20 GFB-50
Cleveland Standard Features
■ Complete skid-mounted and piped, gas fired Steam Boiler with
Vertical Return System and Blow Down Separator
■ Available for Pressure Ratings from 15 to 150 psi (specify
required operating pressure)
■ Vertical Tubeless design
■ Fully insulated Boiler with top mounted, down-fired burners
■ High Temperature Insulation assists thermal efficiency of 80%
■ Spinning Cyclonic Flame travels down the entire length of the
Combustion Chamber
■ Top Flame Retainer increases occupancy time of flue gases to
complete combustion process
■ Operating Pressure Control and High Limit Pressure Control
with Manual Reset
■ Water Column with Water Gauge Assembly
■ All necessary valves are included
■ Automatic Water Feed System with probe type Water Level
Controls and single phase Motor for Pump
■ Steam Outlet conveniently located at top of Boiler
■ Control Panel factory mounted and wired, ready for power con-
nection
■ Built and stamped to A.S.M.E. Code
■ Registered with the National Board of Boiler & Pressure Vessel
Inspectors
■ Accepted for use in U.S.D.A. Inspected Facilities
Options & Accessories
❐ Stainless Steel outer Jacket
❐ Automatic Boiler Blow-down Controls
❐ Applicable Controls to meet the various special insurance,
local, state or federal code requirements
❐ Electric heated Steam Boilers
❐ Oil-fired Steam Boilers
❐ Cooling Kit for boiler drain
❐ Aquastat automatic drain cooling kit
❐ Larger models availabe on request
Shall be CLEVELAND Model GFB -____, gas-fired, vertical, tube-
less LARGE STEAM BOILER System, _____H.P. (horse power);
Complete with Power Burners; Skid mounted and piped with
Vertical Condensate Return System and Blow-Down Separator
Package; Factory assembled as a self-contained unit, in accor-
dance to U.L. requirements, and A.S.M.E. Section 1 (one) Code;
Guaranteed production of _______ pounds of Steam per hour at
212˚F.
Short Form Specifications
