Warning caution warning warning, Keyless entry system models 40 and 65
Door Jamb
Face
Keyboard
1
3
5
7
9
2
4
6
8
*

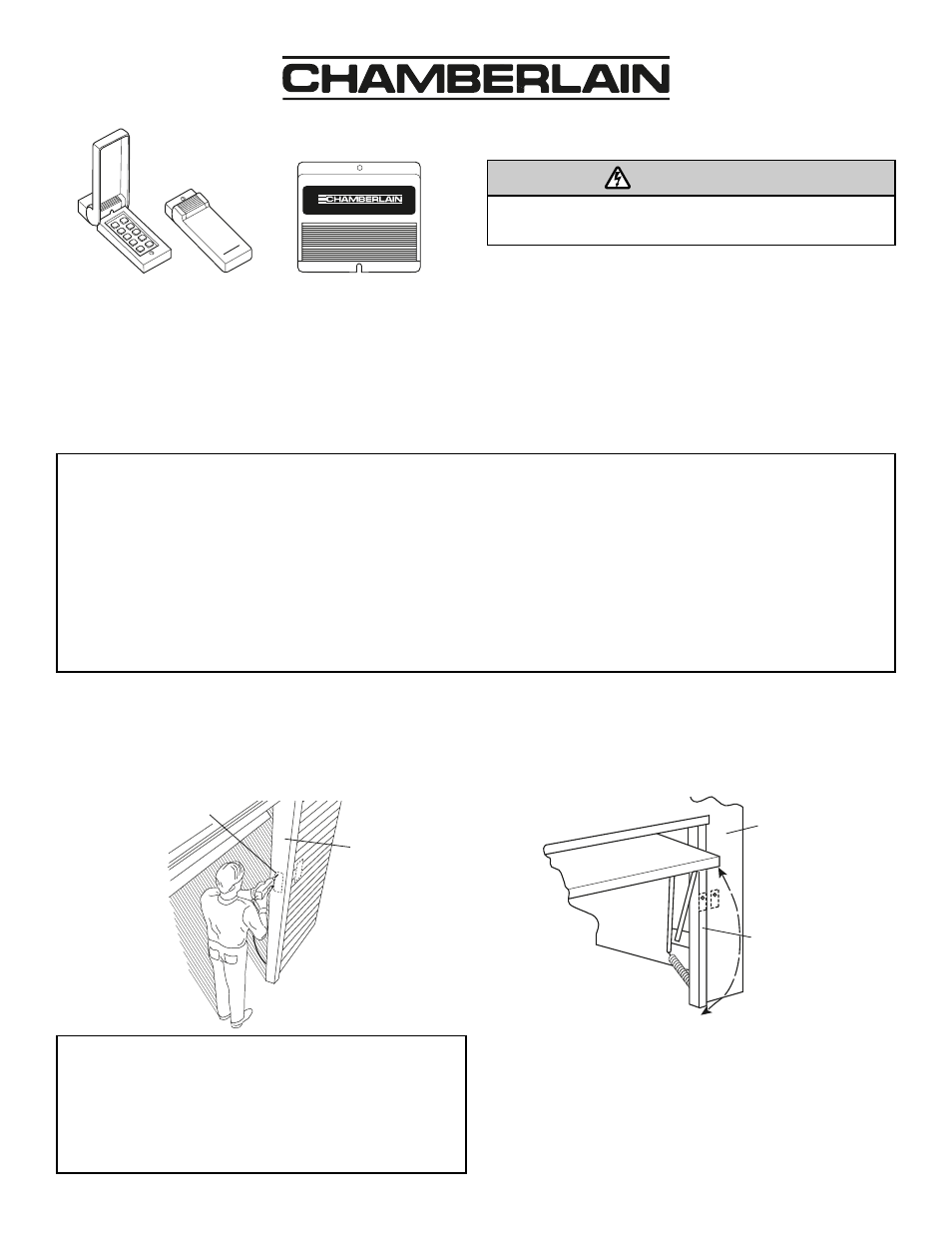

The Keyless Entry System consists of a keyboard and a console. The keyboard sends a coded signal from outside the garage. The
console fastens to an inside garage wall. It receives the 4-digit programmed coded signal and starts the door opener.
The Keyless Entry System will work with most Genie “Push Twice to Operate" openers if you press any other digit after you
enter the 4-digit programmed code.
NOTE: Cable connector hole is located on left side of console. If possible, install keyless entry system on left side of garage
(determented by facing garage from outside). If installed on right side of garage, cable must be routed over or under console.
KEYBOARD
CONSOLE
FEATURES OF THE OF KEYLESS ENTRY SYSTEM
Personalized Code:
10,000 possible combinations. Code can
be changed easily if desired.
Operation:
Opener activates when programmed code is
entered on the keyboard.
The user has 10 seconds from the time the first number is
pressed to enter the 4-digit code.
If incorrect numbers are accidentally pressed, a 5 second
interval is necessary before starting over.
Power Supply:
Operates from the garage door opener power
with a battery back-up for code memory and lighted keyboard.
Unit will not operate without battery.
Installation:
Simple to Install in 5 easy steps.
Console:
Provides an additional push button control to operate
door from inside garage.
Keyboard:
The garage door can be operated after a valid code
entry by pressing any single key as long as the keyboard light
remains on.
Keyboard Illuminates and remains lit for 10 seconds when
ANY
number is pressed. In darkness this feature allows user to
press any number before entering the 4-digit code.
IMPORTANT NOTE: When Illumination is needed, avoid
pressing keyboard area which contains the first code number.
STEP 1—SECTIONAL DOORS:
Draw two intersecting lines on
garage jamb face - horizontally at eye level and vertically as
close to centerline as possible. Make sure there is at least 1-1/4"
clearance on each side of the vertical Line. Drill a 1" diameter
hole through the jamb at marked location.
Refer to Illustration on Side 2 if your garage has a
built-up jamb.
STEP 1—ONE-PIECE DOORS:
Install the keyboard on the
exterior front wall of a FRAME garage. Position it away from the
door opening to avoid injury as door swings out and up. Drill a 1"
diameter hole through wall at eye level. Refer to note below; then
proceed to Step 2.
PARTS LIST
Console Assembl . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41D2995
Keyboard Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . .41D2994
9 Volt Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10A15
2 Strand Bell Wire . . . . . . . . . . . . . . . . . . . . . . . . . . . .219A276
Transformer Kit (inc. bell wire) . . . . . . . . . . . . . . . . . . .Model 95
N
OTE: If garage Is constructed of material other than wood
(brick, stone or aluminum siding), install keyboard on door jamb
with this important exception: Locate keyboard on outside edge
of door jamb to avoid injury as door swings out and up.
NO USER SERVICEABLE PARTS.
For service Information call Toll Free:
1-800-528-2817
Keyless Entry System
Models 40 and 65
®
Garage
Exterior
Door Jamb
Edge
To avoid SERIOUS INJURY or DEATH from electrocution, disconnect
power to opener BEFORE proceeding.
WARNING
CAUTION
WARNING
WARNING
