24
Dutchwest Non-Catalytic Convection Heater
30003850
MHSC reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, without
notice.

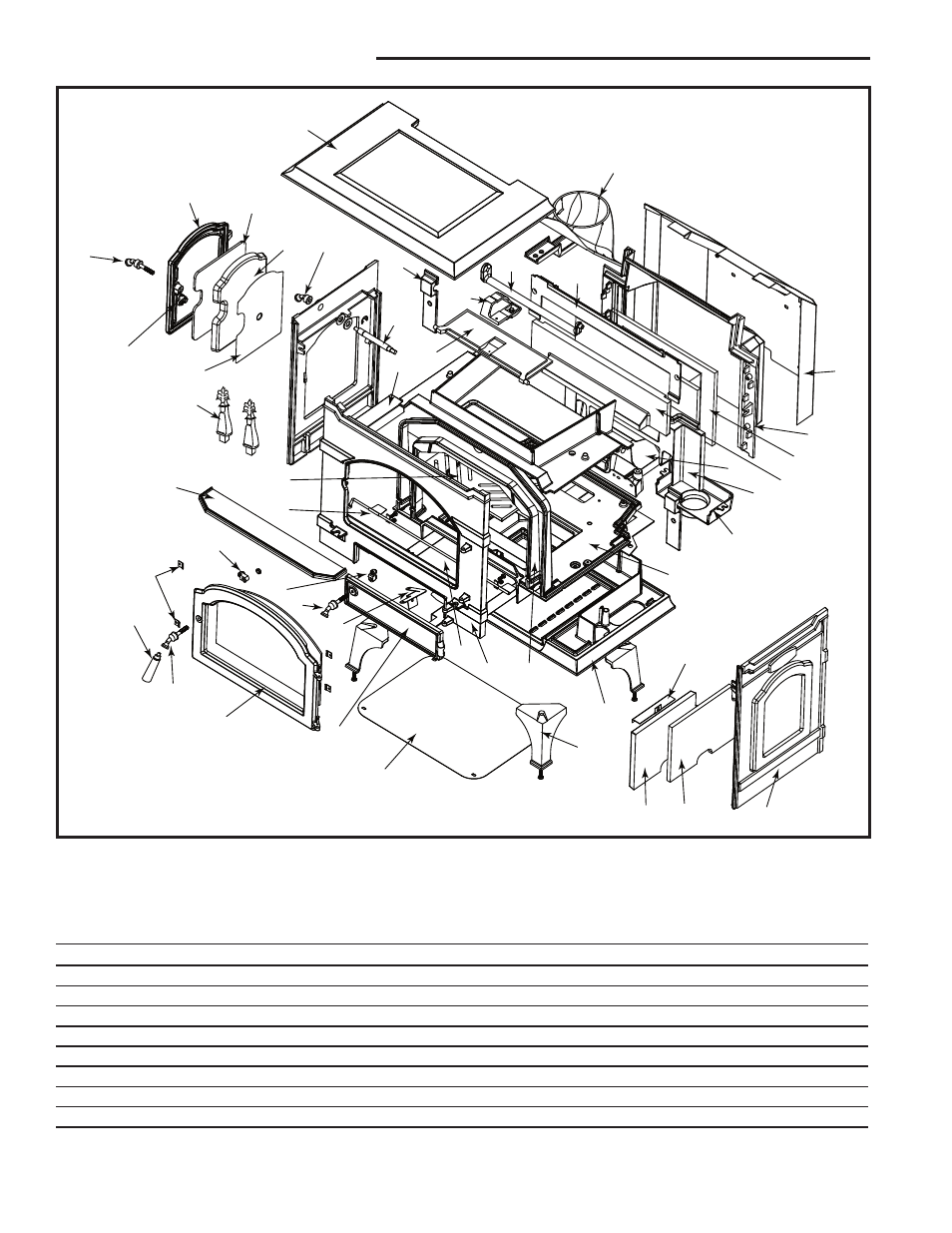

Dutchwest Convection Heater
Model 2478CE
29
26
27
32
37
21
19
12
38
41
24
25
16
30
37
23
42
39
35
1
14 13 4
43
2
6
9
10
17
11
7
3
34
20
22
18
33
44
45
46
8
47
40
36
47
41
31
28
15
48
Ref. Description 2478CE
1. Bottom 30002075
2. Inner Bottom 30002076
Primary Air to Inner Bottom Gasket (1/4” Rd Fiberglass) 1203560
3. Inner Back 30002077
4. Right Side 30002082
5. Left Side 30002083
6. Outside Air Bracket 30002205
7. Fountain Assembly 30002100
