Bottom View

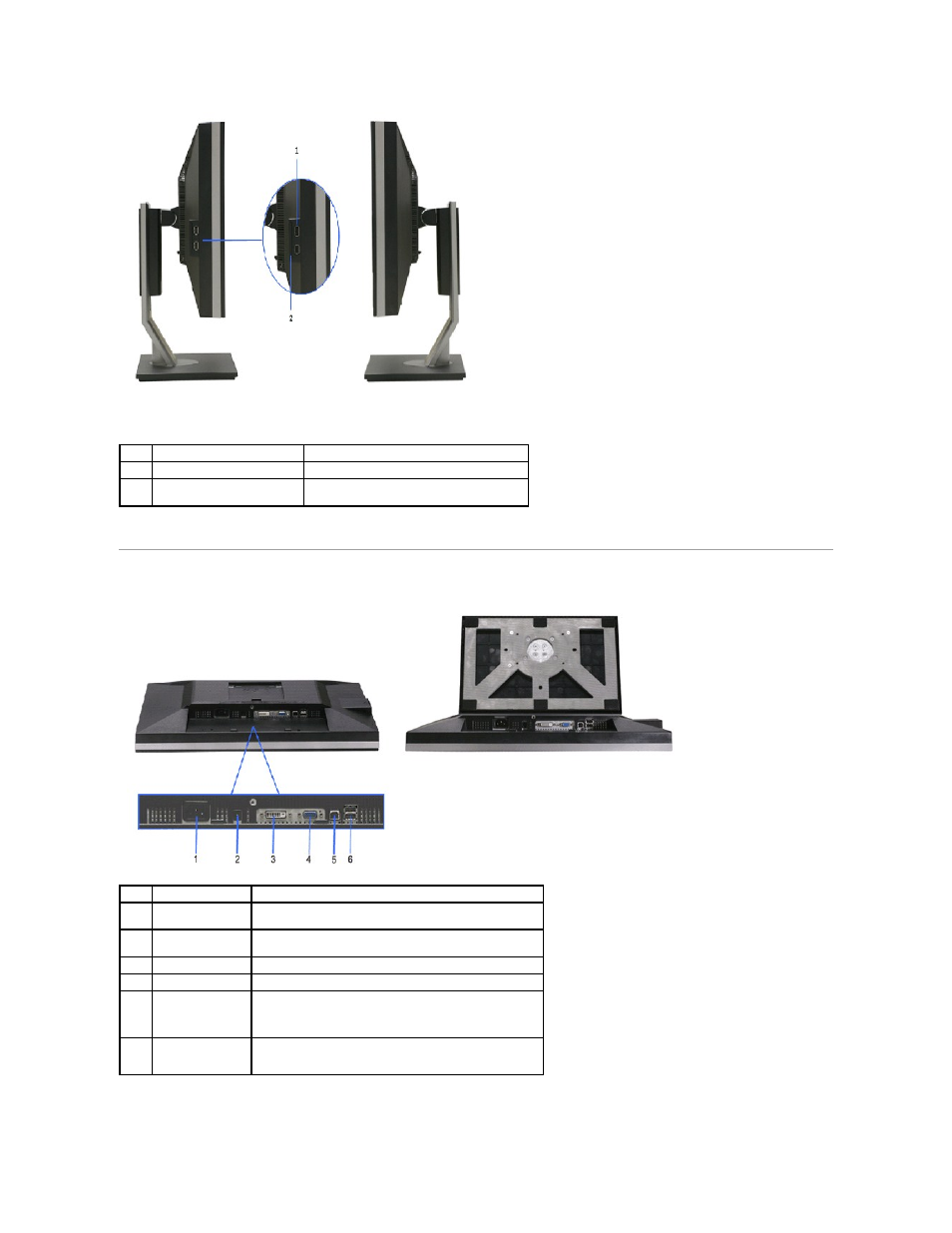

Left view Right view
Label Description Use
1 USB downstream ports Connect your USB devices.
2 Label card
Provide clean monitor back view when reference
to labels is not required.
Bottom view Bottom view with monitor stand
Label Description Use
1
AC power cord
connector
Connect the power cable
2
DC power connector
for Dell Soundbar.
Connect the power cord for the soundbar (optional)
3 DVI connector Connect your computer DVI cable
4 VGA connector Connect your computer VGA cable
5 USB upstream port
Connect theUSB cable that came with your monitor to the
monitor and the computer. Once this cable is connected you
can use the USB connectors on the side and bottom of the
monitor.
6
USB downstream
ports
Connect your USB devices. You can only use this connector
after you have connected the USB cable to the computer and
USB upstream connector on the monitor.
