Setting the maximum resolution – Dell E2210 Monitor User Manual

Page 23

See

Solving Problems

for more information.

Setting the Maximum Resolution

To set the Maximum resolution for the monitor:

Right-click on the desktop and select Properties.

Select the Settings tab.

Set the screen resolution to 1440x900 (E1910) or 1680x1050 (E2210).

Click OK.

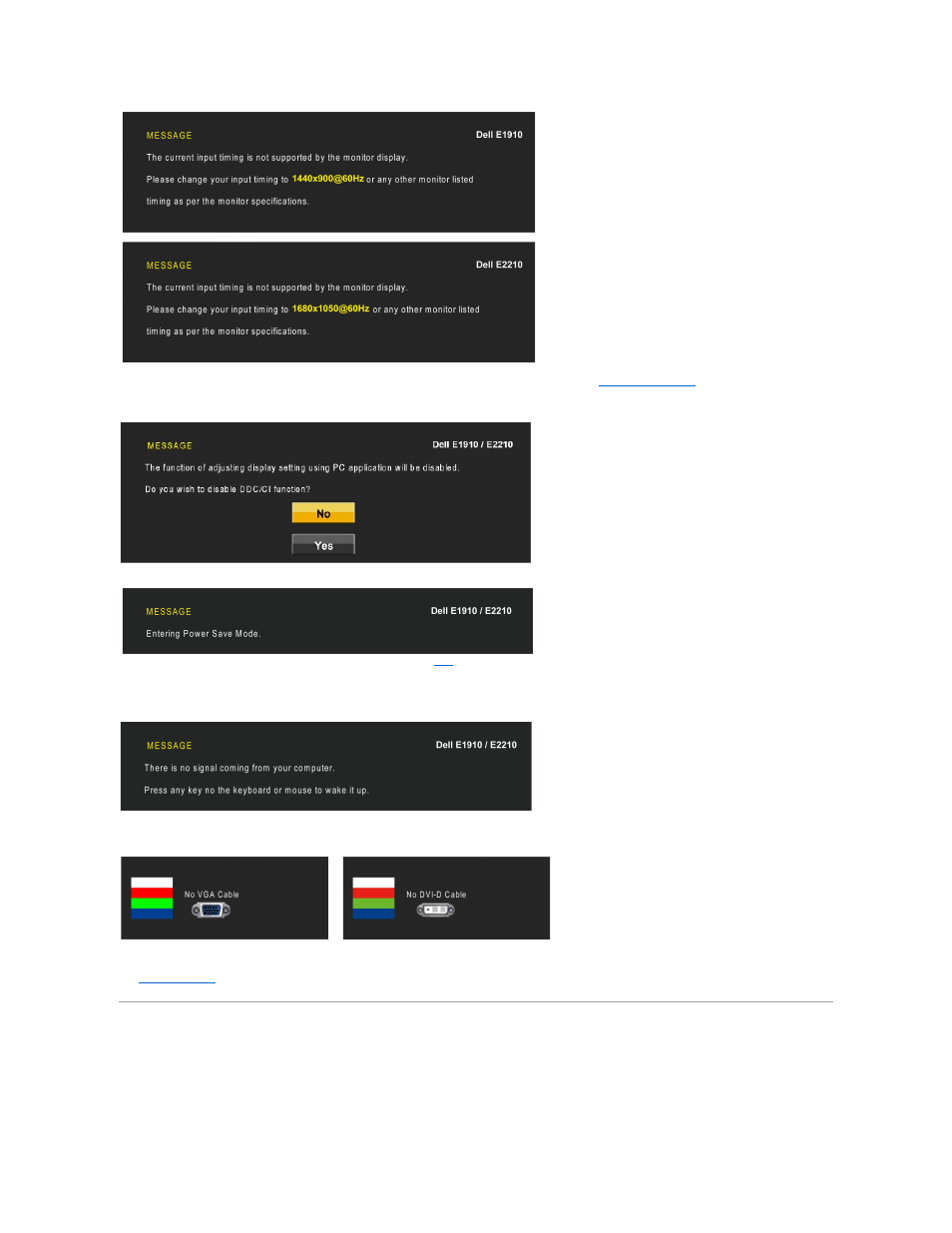

This means that the monitor cannot synchronize with the signal that it is receiving from the computer. See

Monitor Specifications

for the

Horizontal and Vertical frequency ranges addressable by this monitor. Recommended mode is

1440x900 (E1910)/1680x1050 (E2210).

You will see the following message before the DDC/CI function is disabled.

When the monitor enters the Power Save mode, the following message appears:

Activate the computer and wake up the monitor to gain access to the

If you press any button other than the power button, the following messages will appear depending on the selected input:

If VGA or DVI cable is not connected, a floating dialog box as shown below appears.
