Osd warning messages – Dell S1909WFP Monitor User Manual

Page 20

Text mode
Original mode

OSD Warning Messages

LCD Conditioning

Factory Reset

Back

If an image appears to be stuck on the monitor, select LCD Conditioning to help eliminate any image retention. Using the LCD Conditioning feature may take
several hours. Severe cases of image retention are known as burn-in, the LCD Conditioning feature does not remove burn-in.

Reset all OSD settings to the factory preset values.

Push

to go back to or exit the main menu.

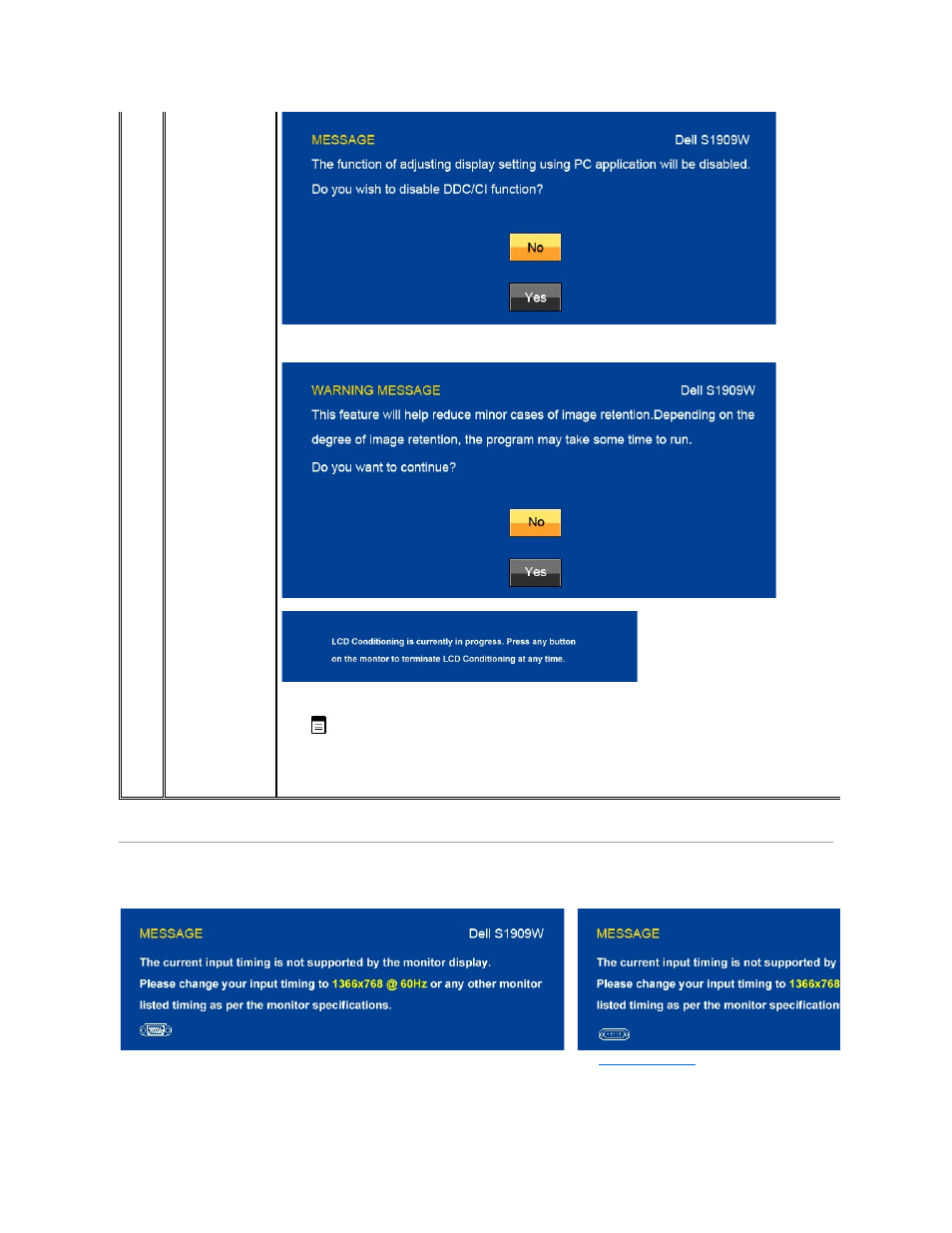

When the monitor does not support a particular resolution mode you will see the following message :

This means that the monitor cannot synchronize with the signal that it is receiving from the computer. See

Monitor Specifications

for the Horizontal and Vertical frequency ranges addressable by this

monitor. The recommended mode is 1366 x 768 .

When monitor enters Power Save mode, the following message appears :
