WS4369 and WS4469
Operating Instructions and Parts Manual
2
3
4
5
6
7
1

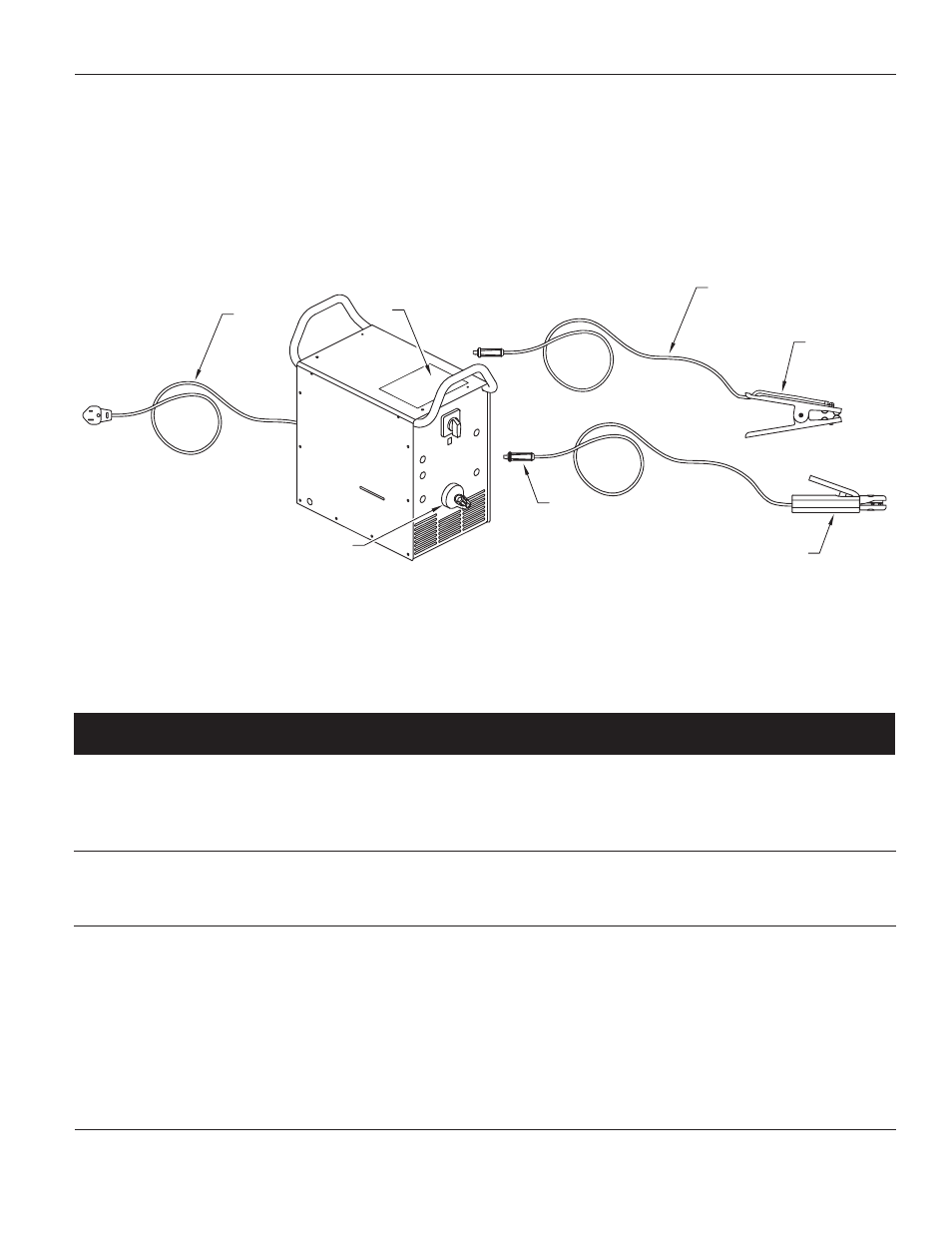

figure 11
For replacement parts or technical assistance,
call 1-800-746-5641
1 Decal, Warning DK689175AV 1
2 Connector, Dinse WC000200AV 2
3 Cordset, Power – 230V, 50A (NEMA 6-50P),
7 ft (213 cm), 12AWGX3C, Type SJT * 1
4 Cable, Welding – 6 AWG (15 mm 2 ) * 2
5 Clamp, Work – 250A WC100100AV 1
6 Holder, Electrode – 300A WC200200AV 1
7 Crank Kit (includes crank, knob, post, and pin) WC707645AV 1
8 s Cart, Welder (Optional Accessory) WT720000AJ Optional
* Standard hardware item, available at local hardware or welder supply store.
s Not shown
Replacement Parts list
Ref. Part
no. Description number Qty.
Please provide following information:
- Model number
- Serial number (if any)
- Part description and number as shown in parts list Address parts correspondence to:
Campbell Hausfeld
Attn: Customer Service
100 Production Drive
Harrison, OH 45030 USA
