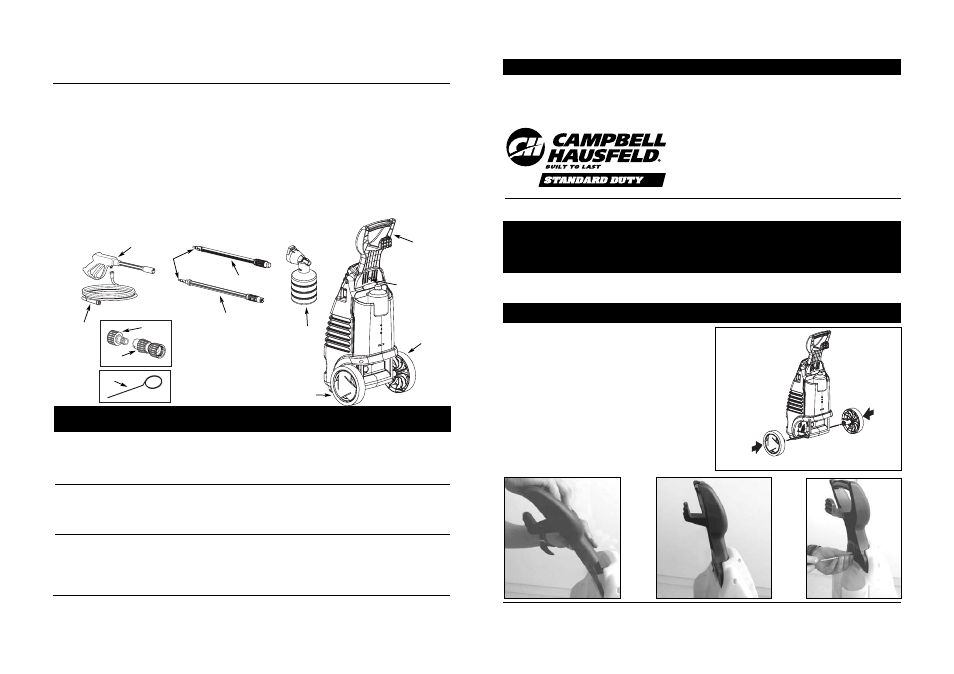

Instrucciones de Montaje y Lista de Piezas PW1510
Electric Pressure
Washer
Please read and save these instructions. Read carefully before attempting to assem-
ble, install, operate or maintain the product described. Protect yourself and others by
observing all safety information. Failure to comply with instructions could result in
personal injury and/or property damage! Retain instructions for future reference.
IN466200AV 12/05 © 2005 Campbell Hausfeld
Specifications
PW1510 2250 1500 psi 1.5 GPM 13 Amps 120V 100˚F 26 lbs.
Assembly Instructions
Assembly Instructions and Parts List PW1510
1. Assemble wheels by pushing wheels
into mounting holes, as shown in
Figure 1.
2. Insert handle into back of unit at an
angle, as shown in Figure 2.
3. While pressing down on handle,
push handle fully forward, as shown
in Figure 3.
4. Attach handle to unit with enclosed
screw, as shown in Figure 4.
Figure 1
NOTE: REFER TO PRODUCT MANUAL
FOR ALL SAFETY INSTRUCTIONS
For parts, product & service information
visit www.chpower.com
Max Pressure Motor Maximum
with Power Inlet
Cleaning Standard Maximum (Single Water Unit
Model Power Lance Capacity Phase) Voltage Temp. Weight
1 Lanza regulable PM344000SV 1
2 Lanza turbo PM022621AV 1
3 Manguera PM243600AV 1
4 Pistola PM037203AV 1
5 Adaptador de manguito PM022100AV 1
6 Conector rápido PM020600SV 1
7 Limpiador de puntas PM008500AV 1
8 Rueda PM270030SV 2
9 Mango PM344010SV 1
10 Tornillo PM344020SV 1
11 Anillo en O PM232200SV 1
12 Aplicador de detergente PM231600SV 1
Sírvase proporcionar la siguiente información:
-Número de modelo
-Número de serie (si lo hubiera)
-Descripción y número del repuesto, según se indica en la lista de
repuestos.
Dirija toda la correspondencia a:
Campbell Hausfeld
Attn: Customer Service
100 Mundy Memorial Drive
Mt. Juliet, TN 37122 U.S.A.
Figure 2 Figure 3 Figure 4
1
8
4
2
3 5
6
7
12
11
10
8
9
No. de Número del
Ref. Descripción Repuesto Ctd.
