The P-0921 provides communication between two different Channel Vision
door intercoms and any phone in the house. When a visitor presses the
doorbell button the phones in the house will respond with a distinctive ring.
The home owner can then speak to the visitor by answering any of the
ringing phones in the house.
Features:
! Supports 2 Channel Vision door intercom stations
! Rings the phones and when the doorbell button is pressed
! Integrated door chime contacts for triggering a traditional doorbell
! Programmable auxiliary dry contact closure
! Page output for whole-house paging system
! Can work with or without an active telephone line
! LED status indicators
! Quick and easy installation
Telephone service input/output. Use either the RJ-45 or screw terminals.
CHIME 1 and 2 are dry contacts which close whenever the
corresponding doorbell button is pressed.
Unlock Door 1 and 2 allows a door strike relay to be triggered
when these terminals are shorted by the press of a button.
Door 1 and 2 are connections for Channel Vision
Door stations.Use either RJ-45 or screw terminal
connections.
Other Telephone Entry Components
Door-Intercom Units:
Your telephone entry system will require at least one of the following
compatible door-intercom stations. These door intercoms are constructed
of 1/4” solid brass and are offered in 9 different finishes to match the most
popular door hardware. They can be ordered with or without a hidden
camera for covert surveillance. Both color and black & white camera
options are available.

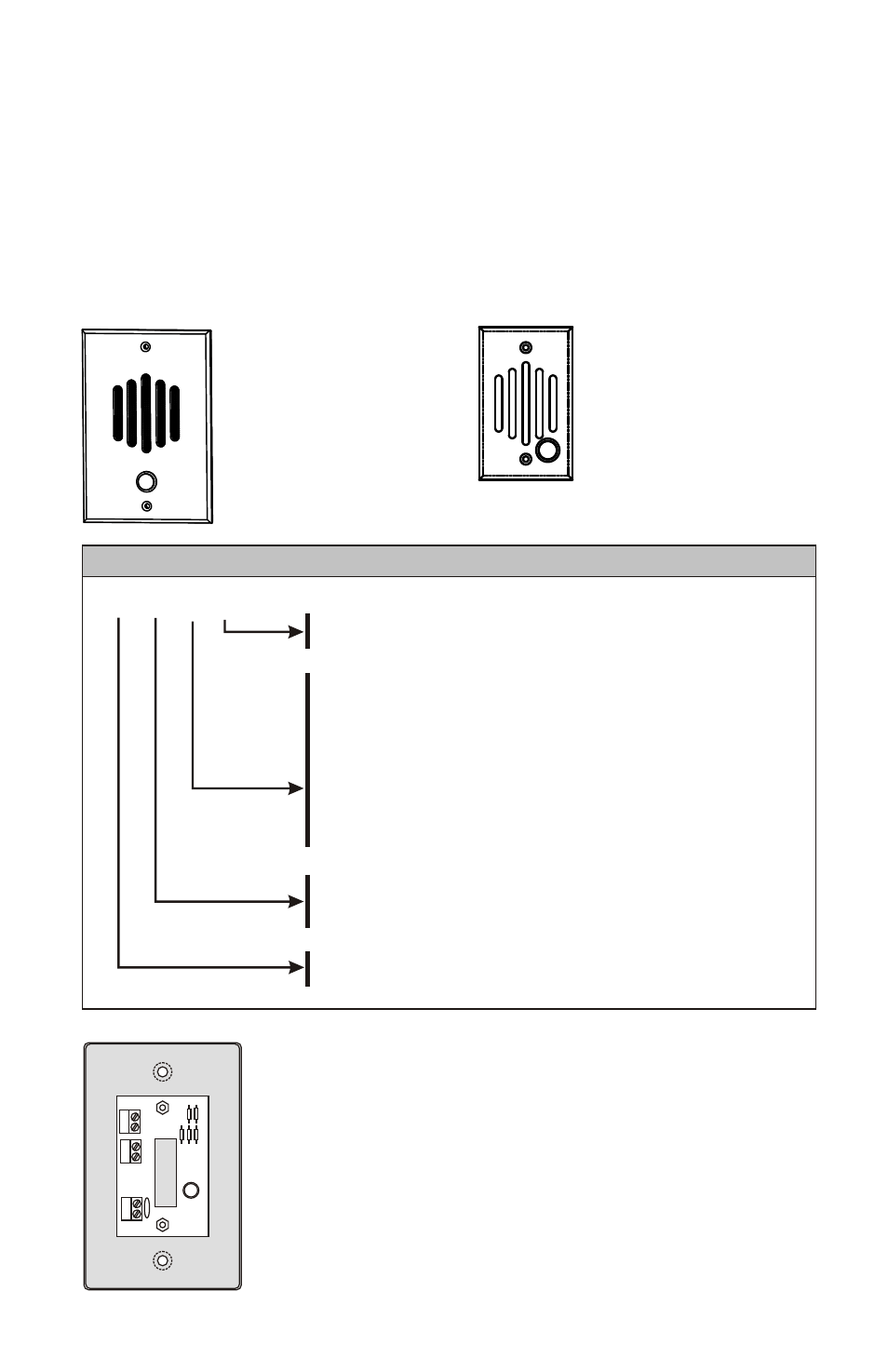

IU Intercom... is a
single gang unit,
measuring 4-1/2” tall by
2-3/4” wide, perfect for
locations where the
larger DP intercom unit
is not desirable.
TE110DS... is a dry contact relay that can be
connected in-line between the P-0921 and the door
intercom station. It is activated by the same
commands that control STRIKE 1 and STRIKE 2.
DP Intercom... is a
large unit, measuring
6-1/2” tall by 4-3/8”
wide, that was
designed to look
good in large-scale
entry ways.
Part numbering: DP and IU Intercom Options
XX-0212_
Blank
Channel Vision compatible (C-0920/P-0920/P-0921)
P
Panasonic compatible
212
White
222
Polished Brass
232
Antique Brass
242
Chrome
252
Oil Rubbed Bronze
262
Antique Copper
272
Satin Silver
282
Black
302
Satin Nickel
0
No camera
5
Black and white camera
6
Color camera
DP
Large size (6-1/2” x 4-3/8”)
IU
Single-gang size (4-1/2” x 2-3/4”)
Enables operation
when no active CO
line is present
Selects the activation
key (either # or *)
AUX contact closure can be configured to
close when STRIKE 1 is active OR when
PAGE is active
Audio page output
for whole-house
paging systems
