CONNECTING TO GAS SUPPLY

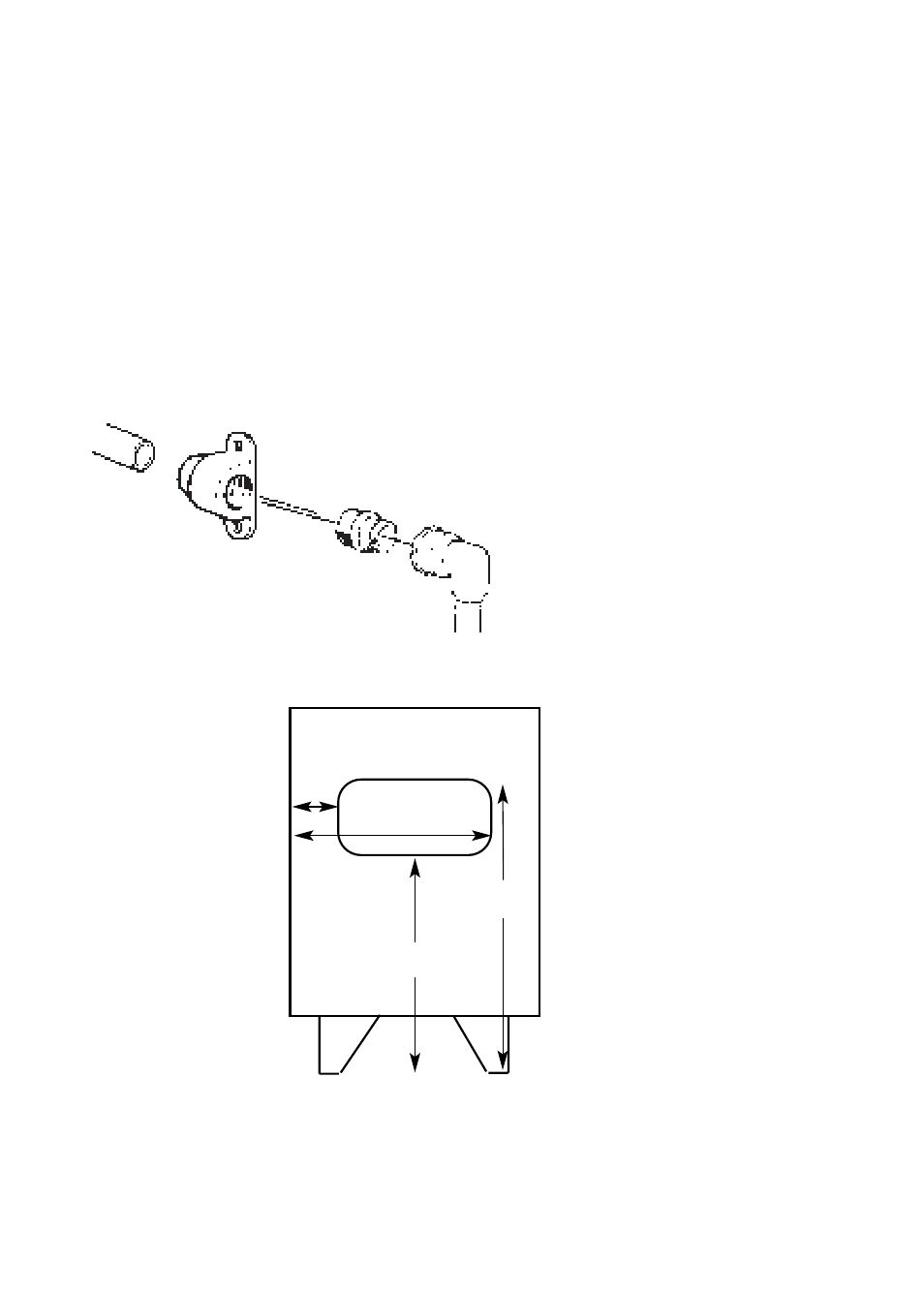

The appliance is designed to be connected with an approved flexible connection to BS 669.
A length of 1.25 to 1.55m is recommended. An adaptor backplate should be fitted in the area
shown to allow the appliance to be pushed fully back into the space between the cabinets. The
flexible hose should be fitted such that it does not pass through a space where it is likely to
become trapped or damaged.
The temperature rise of areas at the rear of the appliance that are likely to come into contact with
the flexible hose do not exceed 70˚C.
INSTALLATION INSTRUCTIONS
22
140mm
500mm
460 mm
640mm
Dimensions are with the feet
adjusted to their minimum
level.
