Installation: Step One
Locate the incoming CATV or antenna feed and existing splitter.
(Usually found on the side of the house, in the attic or near the electrical and phone service box)
Remove the lock screw located on the bottom of the channel
injector and slide the cover off. Use the mounting holes as shown to
affix the channel injector to the wall next to the splitter.
Disconnect the incoming CATV or antenna feed from the existing
splitter and attach it to the channel injector as shown.
Now attach the supplied coax jumper back to the existing splitter
and tighten all connections with a 7/16” wrench.
3
© 1999

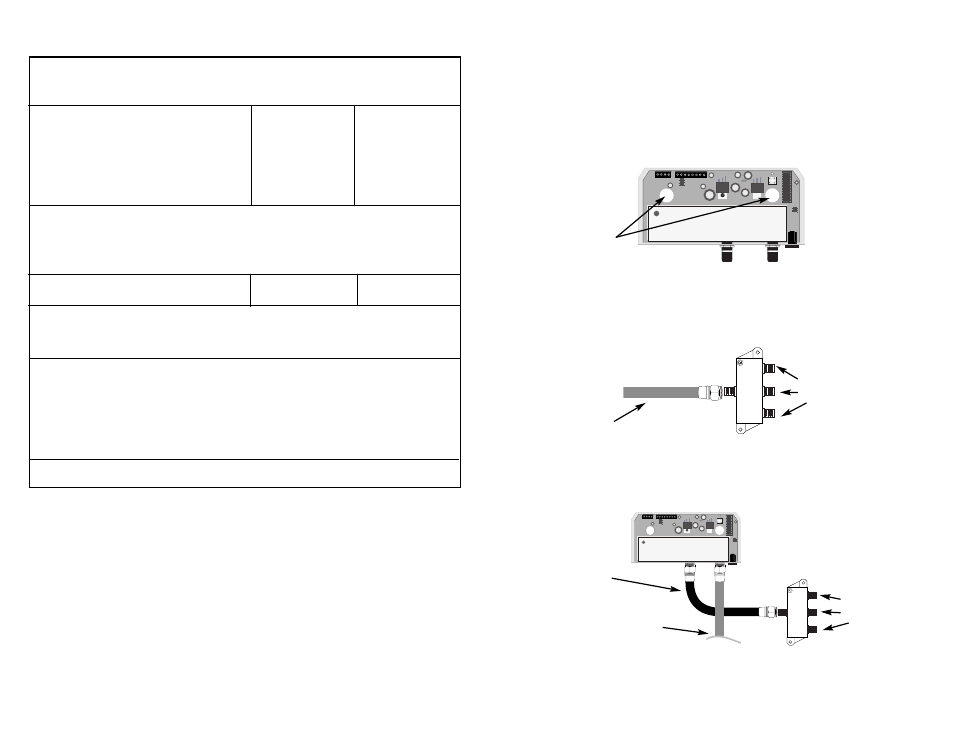

Use mounting
holes on the
bottom plate to
attach channel
injector to the
wall
Incoming CATV or
antenna coax
Out
to TVs
© 1999
Incoming CATV or
antenna coax
Supplied coax
jumper goes back
to splitter
Out
to TVs
After
Before
Mount the
injector within
4” of the splitter
Mount the
injector within
4” of the splitter
Specifications: typical @ 25°C ± 5° C
9511 (B&W) 9511PAL(AUS) 9521 (Color)
HHR/BID HHR/BID
lens viewing angle 78°
resolution: horizontal 525 lines 525 lines 525 lines
vertical 350 lines 350 lines 350 lines
standard lens cover: smoked
minimum light level 2 lux 2 lux 8 lux
video input format EIA CCIR NTSC
input signal 1.0 V peak-to-peak @ 75 Ω
signal-to-noise ratio >45 dB
white balance automatic
electronic shutter speed automatic: 1/60 to 1/50,000 second
tuning range UHF 14 to 64 21 to 62(28 to 67) 14 to 64
CATV 65 to 125 A 65 to 125 A
power supply included with product
mains power 105 to 125 210 to 250 105 to 125
output of power supply 15VDC 600mA
general
injector module camera module
width x height x depth 6.5” x 3.5” x 1.25” 2.75” x 4.5” x 3”
(16.3cm x 9cm x 3.2cm) (6.9 cm x 11.4cm x 7.6cm)
shipping weight 2 lbs (0.9 kg)
operating temperature –4°F to 131°F (–20°C to 55°C)
A excluding channels 95 through 99
