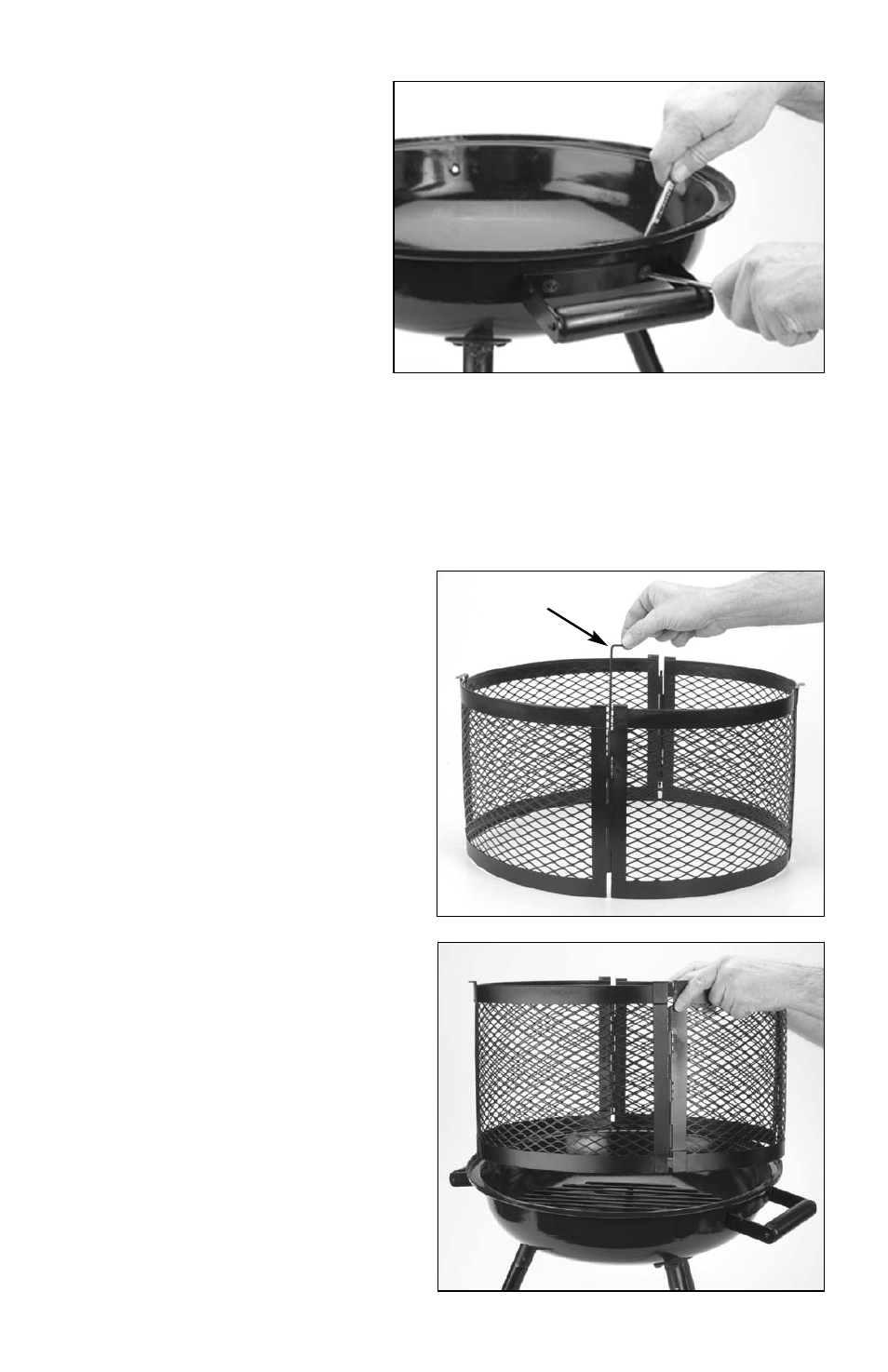

Attach Handles to Firebox
with 2 bolts, washers & nuts.
Place washer between nut
and firebox. Be careful not to
overtighten bolts as this
could crack the porcelain
finish on the Firebox.
5.
Attach Handle to Lid with 2 bolts, washers & nuts.
Again, be careful not to overtighten bolts as this could crack the
porcelain finish on the Lid.
6.
Assemble Damper to Lid with 1 bolt & nut.
7.
Assemble Screen Assembly by
inserting Hinge Pin into hinges of
mating sections.
Hinge Pin
8.
Place Charcoal Grate into
Firebox; place Screen Assembly
along top edge of Firebox & place
Lid on top of Screen Assembly.
You are now ready for use as
either a Fireplace or Charcoal Grill.
