ST-200 User Manual 7 Revision: 2004-11-02/11:23

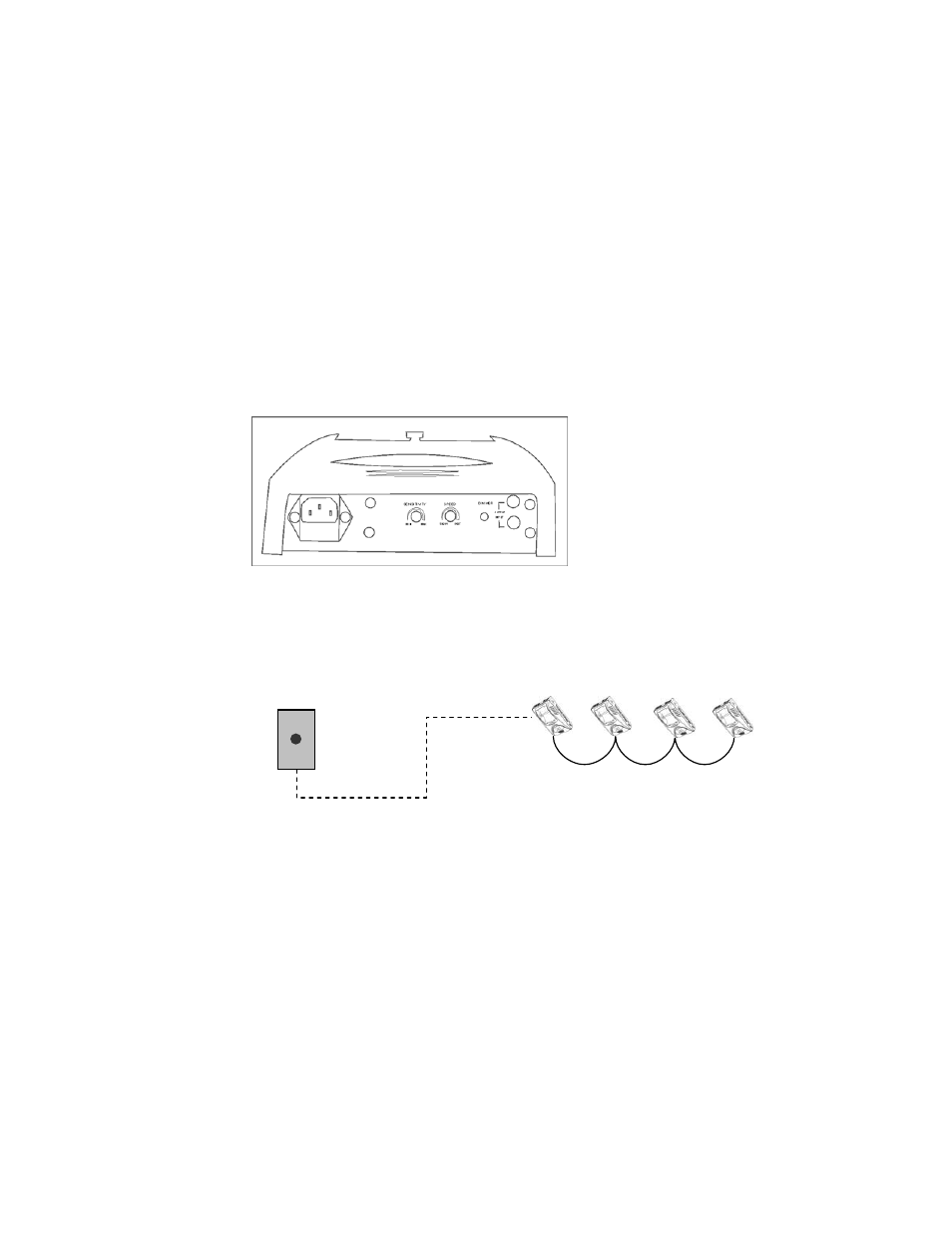

Optional Controller
Daisy Chain Connection
O
PERATING
I
NSTRUCTIONS
Operating Modes
•
A stand-alone mode will listen to sound and strobe to the beat.
•
Master/Slave output provides for unison triggering of chained strobes.
S T A N D A L O N E
The Stand Alone mode is activated automatically when the fixture is absent of a CH-751 or a SC-
1000M controller. The strobe speed, strobe intensity and the microphone sensitivity can all be
adjusted and they are located on the bottom of the ST-200.
U N I S O N S T R O B E
The Unison strobe mode will allow you to link additional units in a daisy chain fashion. Simply connect
each fixture in a daisy like fashion using a ¼” MONO phone cable.
