70 Series DVD player 6
Video C Connections
The DVD77 is equipped with Composite (CVBS), S-Video (SVHS), SCART
(RGB and CVBS) and Component Video (YC
b
C
r
) connections. Progressive
Scan is only available from the Component video output. With the
exception of the SCART output, these outputs are picture only.
It is only necessary to use one of the picture connections at any one
time.
Audio C Connections
Digital ooutputs - The DVD77 is equipped with an optical and a coaxial
digital output. These allow for a digital soundtrack on a DVD disc to be
sent to a suitably equipped AV receiver for decoding and amplification.
Both outputs perform the same function- simply choose the type that
best suits your needs.
Power Rating: 100-240V AC 50/60Hz
DVD77 70 Series DVD Player
Risk of electric shock
Do not open Caution
Risque de choc electrique
Ne pas ouvrir Avis
Vorm offnen des gerates
Netzstecker ziehen Achtung
Max Power Consumption : 40W
Manufactures under license from Dolby
Laboratories. "Dolby" and the double -D
Symbol are trademarks of "Dolby" Laboratories.
Confidential Unpublished Works. 1992 -
1997 Dolby Laboratories. All rights reserved
POWER
SCART OUT (COMPOSITE/RGB)
CLASS 1 LASER PRODUCT LUOKAN 1 LASERLAITE
KLASS 1 LASERAPPARAT
Optical Coaxial
Digital
Audio Out
Component
S-Video
Video
Video Out
Cb/Pb
Cr/Pr
Y
Audio Out
2-CH Out Front Surr Centre
Sub
5.1 Channel DVD Audio/Surround Out
L L L
R R R
PCM/DTS/DOLY DIGITAL
www.cambridge-audio.co.uk
This product complies with DHHS rules 21 CFR,
Chapter 1, Subchapter J Part 1040 at date of
manufacture
Apparatus claims of US patent nos. 4,631 603;
4577,216; 4,819,098 and 4,907,093 licensed
for limited viewing only
"DTS" and "DTS Digital Out" are trademarks of
Digital Theatre Systems Inc.
AC
CAUTION: SERIAL
NUMBER REMOVED
c

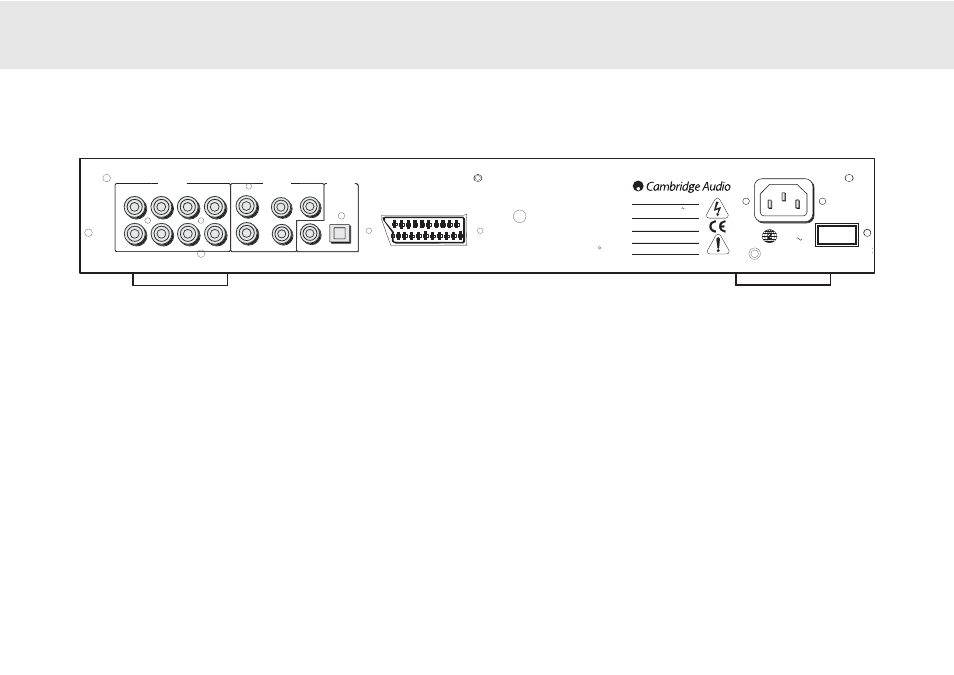

REAR PANEL CONNECTIONS DVD77
Analogue ooutputs -The DVD77 is equipped with a conventional stereo
RCA (phono) out that outputs stereo audio for connection to a
conventional stereo amplifier. It also has a six channel decoded output
in Dolby Digital 5.1 format that enables connection to a suitable 6
channel amplifier. A DVD Audio disc will only output through the 5.1
analogue outs. See An Introduction to DVD Audio on page 3 and
page 21.
Note: A DTS encoded disc will only output the DTS soundtrack through
the digital outputs for external decoding.
AC ppower ssocket
Once you have completed all connections to the amplifier, plug the AC
Power Cable into an appropriate mains socket.
70 S Series
