Chapter 3. Installing the CS7000 Controller
____________________________________________________________________________________________
December 2005
Page 3-9

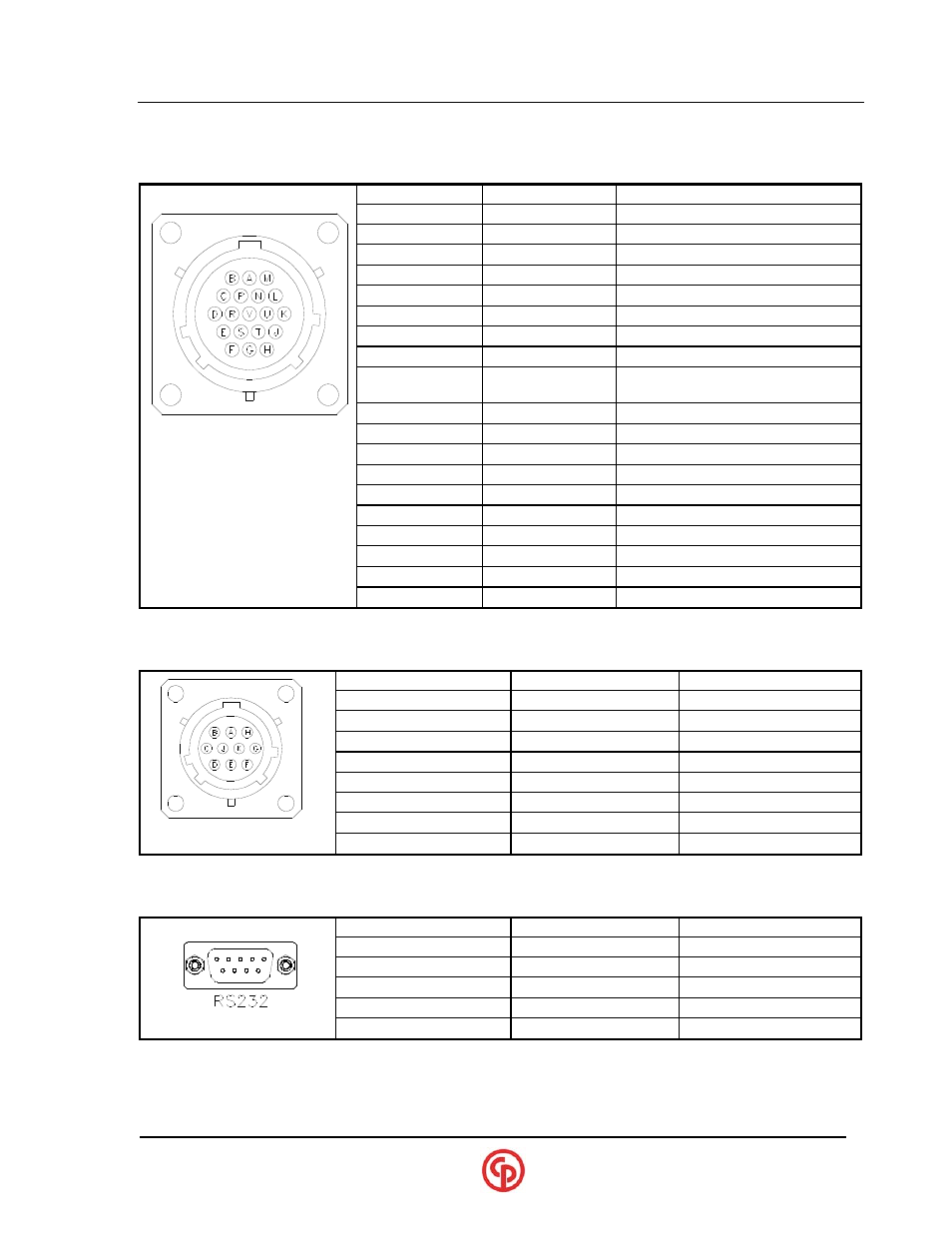

I/O Connector – Front View
Pin Designation Wire Color (Ref) Function
A BLK CYCLE ON INPUT
B WHT FORWARD/REVERSE INPUT
C GRY DISCRETE INPUT #7
D YEL DISCRETE INPUT #8
E RED LIMIT SET SELECT B0 INPUT
F GRN LIMIT SET SELECT B1 INPUT
G ORN LIMIT SET SELECT B2 INPUT
H BLU +24V INPUT
J WHT/BLK DISCRETE OUTPUT #1
(FINISHED)
K WHT/RED DISCRETE OUTPUT #2 (ACCEPT)
L WHT/GRN DISCRETE OUTPUT #3 (REJECT)
M WHT/YEL DISCRETE OUTPUT #4
N WHT/BLU DISCRETE OUTPUT #5
P WHT/GRY DISCRETE OUTPUT #6
R WHT/GRN SYNC IN/OUT
S WHT/BRN OUTPUT COMMON
T BU +24V
U BRN DISCRETE OUTPUT #7
V VIO SYNC COMMON
TCM (IN and OUT) Network Connectors – Front View
Pin Designation Wire Color (Ref) Function
A BRN/WHT TXD+ OUT
B WHT/BRN TXD- OUT
C ORN/WHT RXD+ IN
D WHT/ORN RXD- OUT
E GRN/WHT CLK+ OUT
F WHT/GRN CLK- OUT
G BLU/WHT SHIELD COMMON
H GRN SHIELD
RS-232 Connector – Front View
Pin Designation Wire Color (Ref) Function
2 BLU RXD
3 GRN TXD
5 BLK GND
7 RED RTS
8 YEL CTS
