Configurar Toque de Laser em seu Projetor
5
Parte D: Conecte os Cabos
Necessários

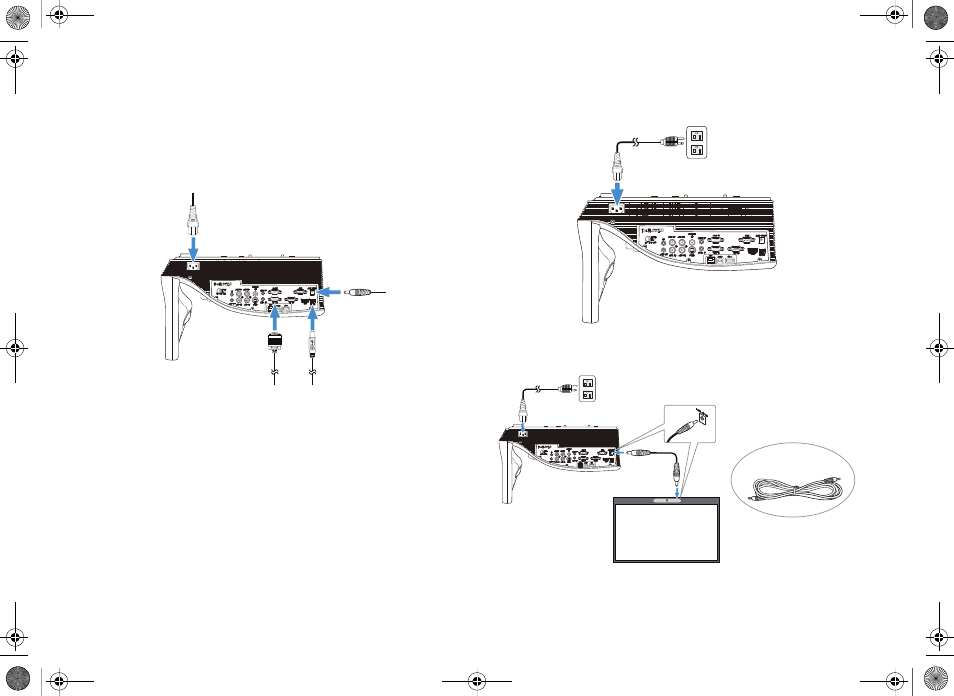

4 Conecte o cabo de alimentação, os cabos
de vídeo, Mini-USB, e DC-DC ao projetor.
5 Conecte o cabo de energia à tomada de
energia.
6 Conecte o cabo DC para DC ao kit de
cortina laser.
Cabo DC para DC de
2m
S520 Laser Touch QSC_A02-DAO.book Page 5 Wednesday, May 14, 2014 7:14 PM
