© 2008, CyberData Corporation, ALL RIGHTS RESERVED 930180E Quick Reference Quick Reference 930180E © 2008, CyberData Corporation, ALL RIGHTS RESERVED

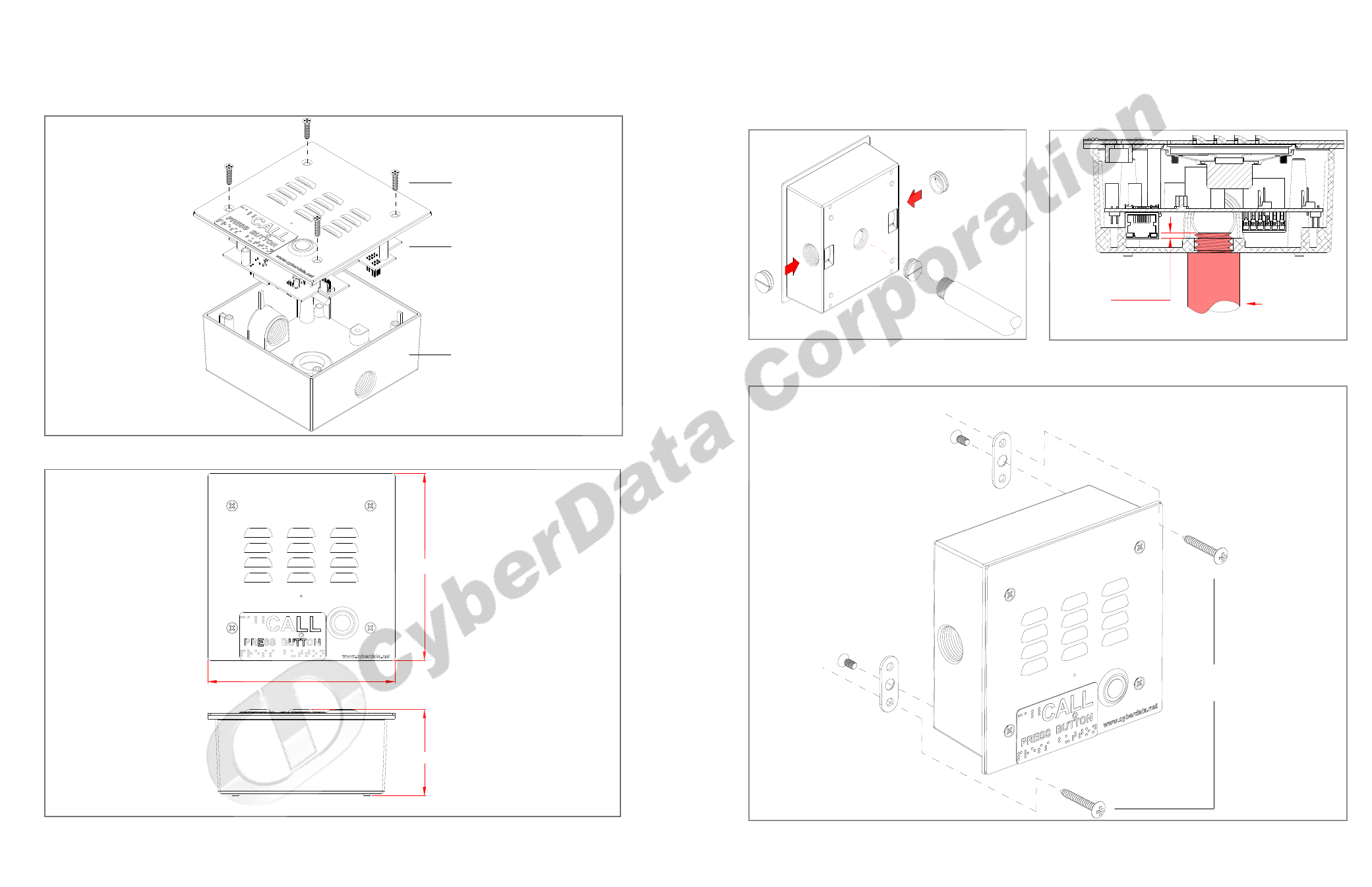

Cable Entries and Conduit Restrictions
The VoIP Intercom has three possible cable entries. If you are using the center entry, refer to the drawing on the right that
shows the entry restrictions.
Mounting and Screws
OR
CONDUIT
HOLE PLUG
(1/2”)
Not to Exceed 0.1"
CONDUIT
1/2"
Mounting Screw
Not Provided
Plate (2 x)
Flush Mounting
Flat Head Phillips
Machine Screw (2 x)
Intercom Assembly
To mount the intercom, use methods compliant with local electrical codes.
Intercom Dimensions
Mounting
Face Plate
2 Gang Box
and
PCB Assembly
Screw (4x)
2.3 [59]
5.0 [127]
5.0 [127]
inches [millimeter]
