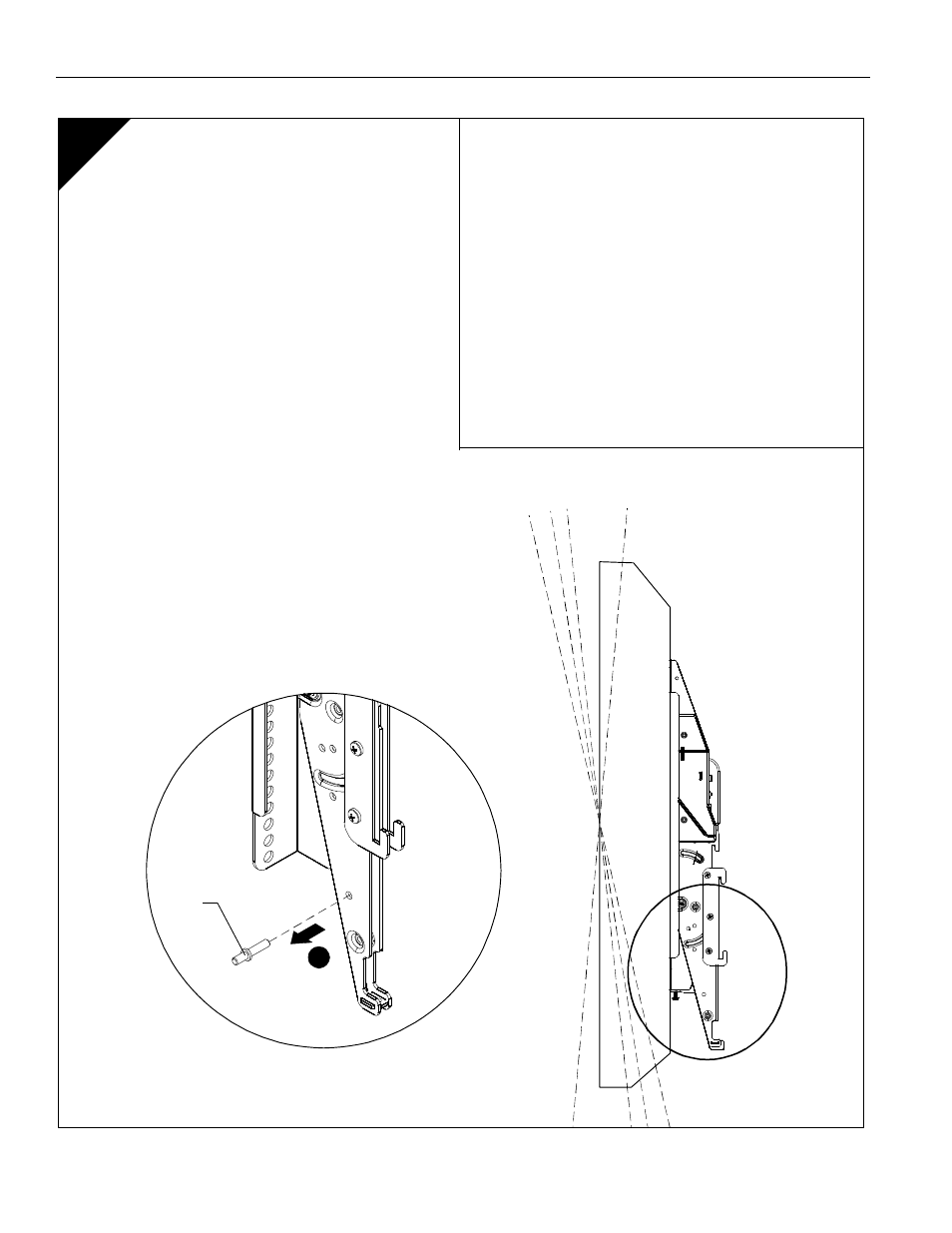

Setting Preset Position
1.
Remove pin (C1) from STORE opening.
2.
Insert pin into appropriate opening dependent on tilt angle
desired:
•
Insert pin into "P1" for maximum preset tilt angle of
approximately 6°.
•
Insert pin into "P2" for maximum preset tilt angle of
approximately 9°.
•
Insert pin into "STORE" for full tilt angle of 13°.
•
Insert pin into "UP" to lock the display in the up position
(approximately 5°).
STORE
P2 P1
UP
P1
UP P2
STORE
1
C1
