Cooper Bussmann BU-905U-L-T Transmitter Quick Start Guide

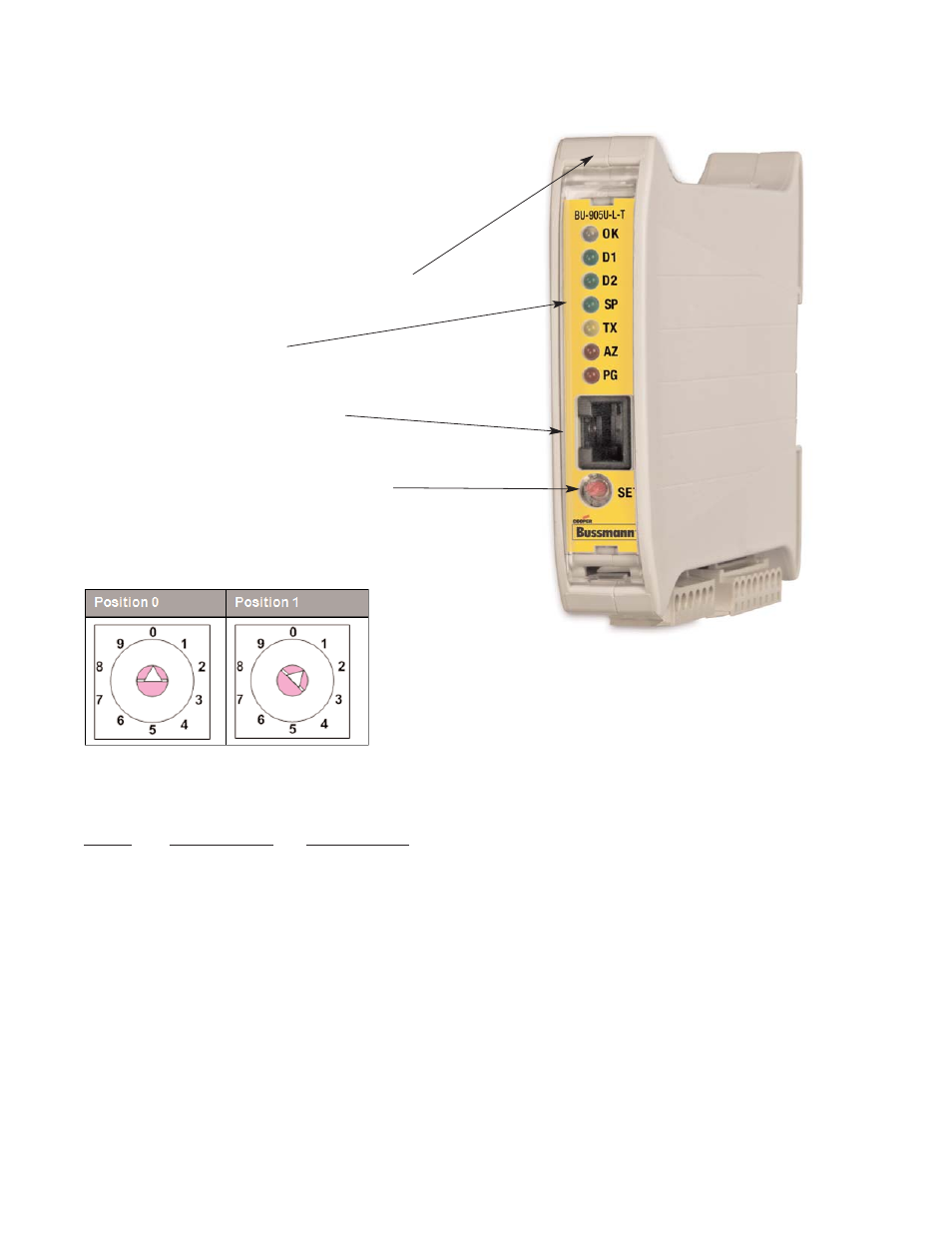

Front Panel Components
The triangle on the rotary switch indicates the current position, for
example:
NOTE: To avoid damaging the rotary switch, use a screwdriver to change the position.
The rotary switch uses the following setpoint levels:
Position
Lower Level (mA)
Upper Level (mA)
1
4.8
6.4
2
6.4
8.0
3
8.0
9.6
4
9.6
11.2
5
11.2
12.8
6
12.8
14.4
7
14.4
16.0
8
16.0
17.6
9
17.6
19.2
SMA Antenna Connector at Top of Unit
Indicator LEDs
RS232 Configuration Port
Rotary Switch for Setpoint Settings
