English - 6

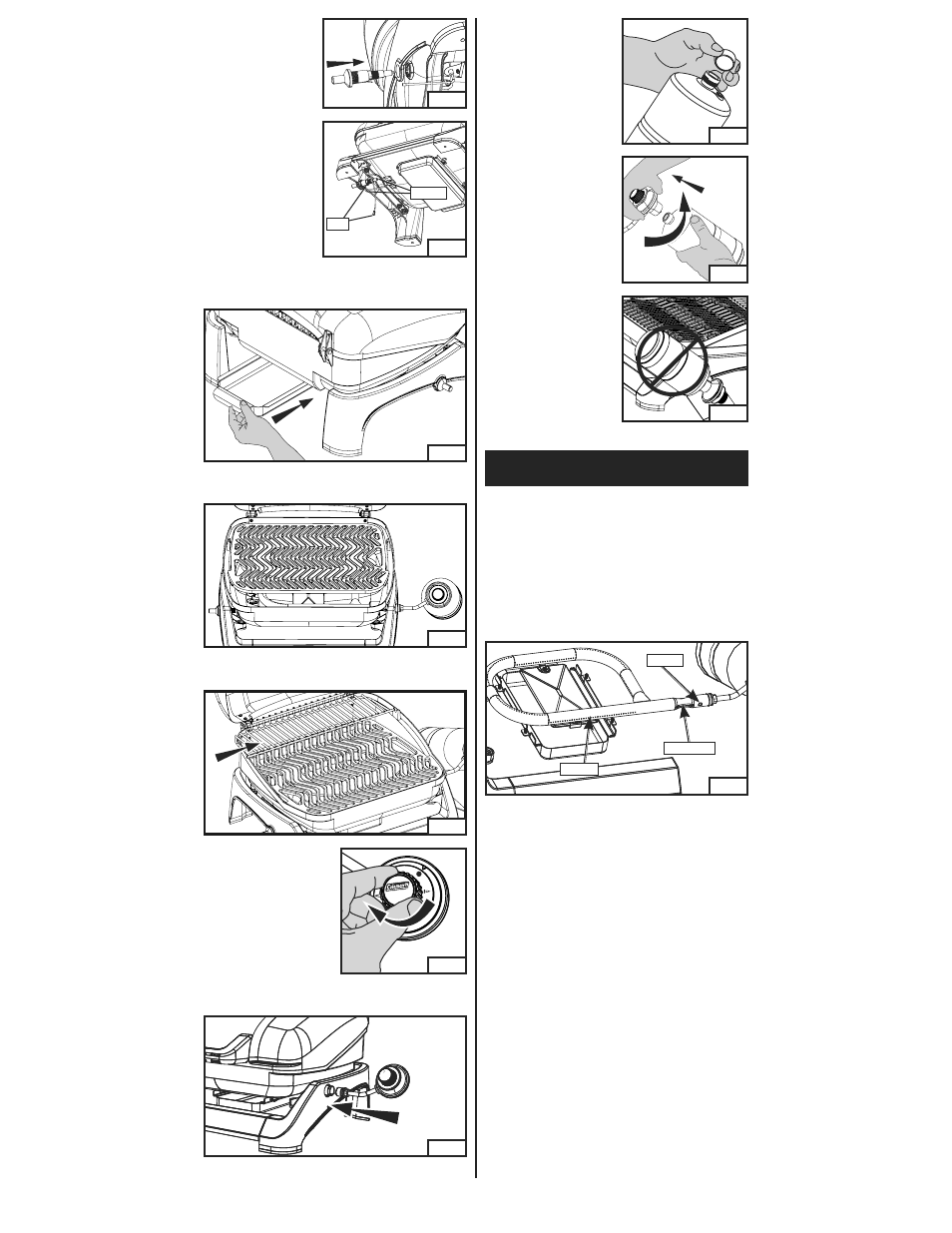

■ Screw propane
bottle into
regulator hand
tight. (Fig. 11)
■ Remove
protective cap
from top of
propane cylinder.
Save cap for use
in storing.
(Fig. 10)
■ Check and clean the burner/fuel
tubes for insects and insect nests.
A clogged tube can lead to a fire
outside the appliance.
Burner and Orifice
Fig. 11
Fig. 10
■ Never operate
grill with propane
cylinder in an
inverted position.
(Fig. 12)
■ Proper location of the burner with
respect to the orifice is important.
To verify the proper installation of
the burner tube, remove the cooking
surface and the cooktop. The burner
tube, fuel tube, and orifice (on the
regulator) should be positioned as
shown in Fig. 13.
■ Turn off regulator
valve. (Fig. 8)
■ Install grease tray into position below
the grill from the back side. (Fig. 5)
■ Assemble the
igniter through
the hole in the
left side of the
grill. (Fig. 3)
■ Install the cooking surface. (Fig. 6)
■ Install the warming rack. (Fig. 7)
■ Firmly snap regulator into grill. (Fig. 9)
Fig. 3
■ Plug the round
electrical
connector to
the round jack,
and the flat
one to the flat
jack. (Fig. 4)
Round
Flat
Fig. 4
Fig. 5
Fig. 6
Fig. 7
PUSH
to Turn On & Off
LO
W
OFF
HIGH
Fig. 8
Fuel Tube
Orifice
Burner
Fig. 13
Fig. 12
Fig. 9
