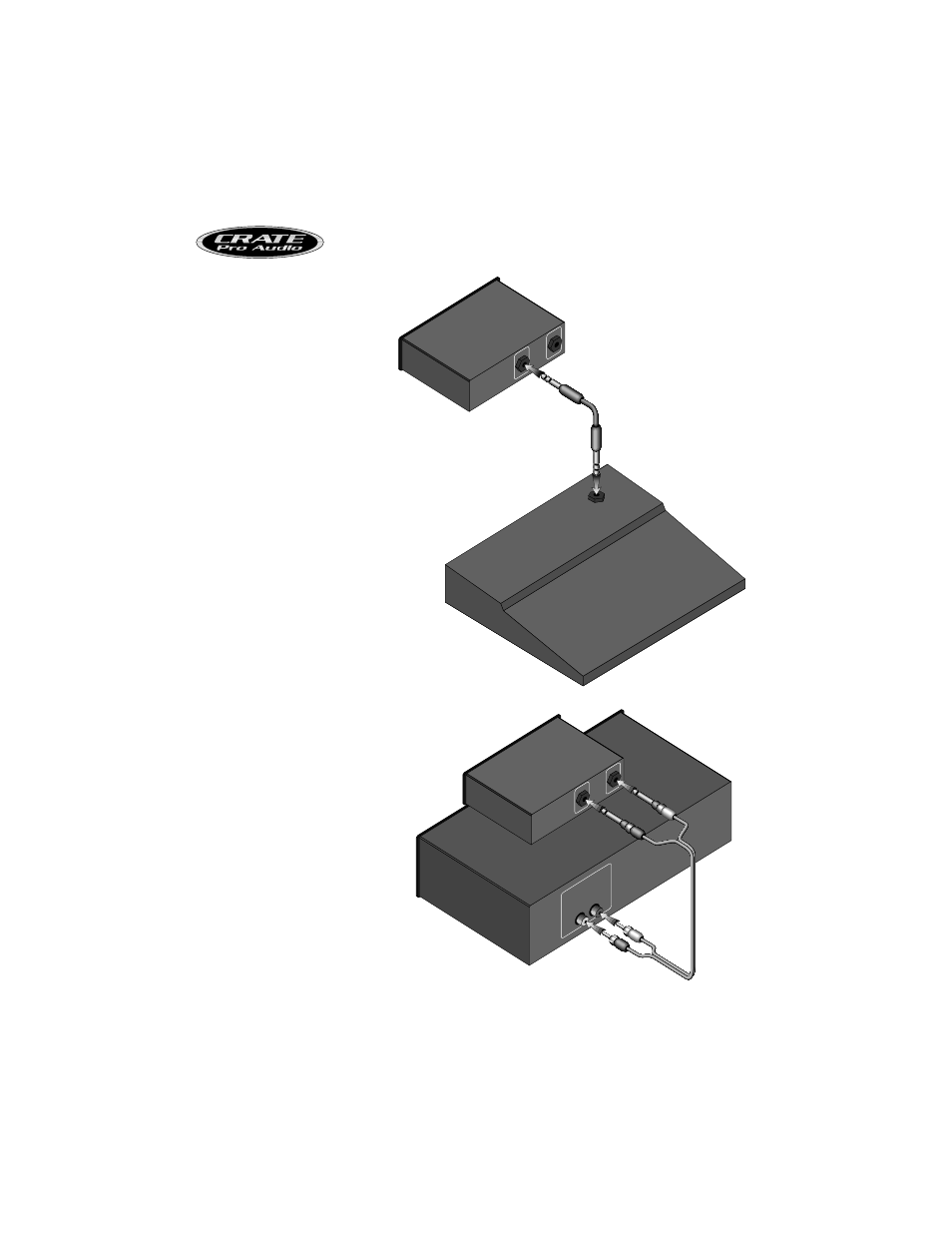

Applications:
Connecting to a
Stereo Headphone Jack
Connect the
Headphones output
jack of a mixing board
(or other source) to the
Left/Stereo jack of the
SM5-HP using a
shielded stereo (T/R/S)
1/4” signal cable.
Applications:
Connecting to the Stereo
Outputs of a Recorder
Connect the left and
right Line Out jacks of
a recorder (or other
source) to the Left and
Right jacks of the
SM5-HP using shield-
ed RCA cables and
RCA-to-1/4” (mono)
adapters.
LE FT
(STEREO)
RI G HT
(MONO)
HEADPHONES
LEFT
(STEREO)
L
R
LE FT
(S TE RE O )
RI G HT
(M O NO )
RIGHT
LEFT
LINE OUT
SM5-HP
Five Channel Headphone Amplifier
