14
Vermont Castings Defiant
DE FIANT
48"
(1220mm)
48"
(1220mm)
48"
(1220mm)

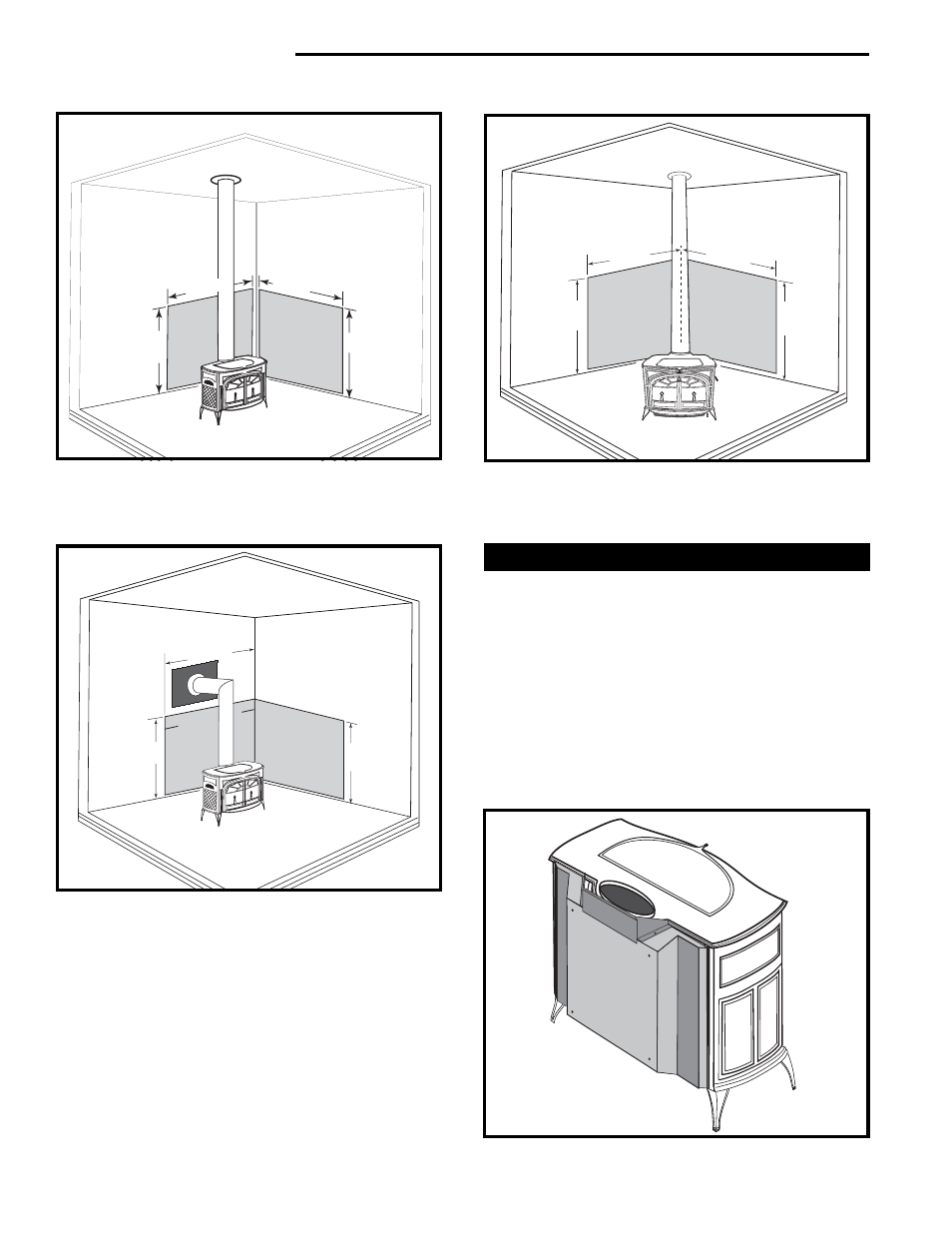

Fig. 13 Parallel installation with rear wall pass-through, two
wall shields. Reduced clearances to both rear and side walls.
Wall shields may meet at corner if desired. Wall pass-through
must comply with codes.
Refer to “Special Installations.”
ST498
48"
(1220mm)
48"
(1220mm)
48"
(1220mm)
48"
(1220mm)
ST499
Fig. 14 Corner installation, vertical chimney connector, two
wall shields. Reduced side clearances. Wall shield MUST
meet at corner.
Stove Heat Shields
The Vermont Castings Defiant Rear Heat Shield,
shown below, is one way to reduce the clearance to
the rear wall. The rear heat shield can be installed in
any setting. However, since the chimney connector
also radiates heat toward the wall, you should use a
chimney connector shield whenever you use the rear
heat shield.
Clearance reductions with the rear heat shield
apply only to the wall to the rear in parallel installations.
Neither the side clearance requirement nor the clear-
ance requirement in corner installations may be re-
duced.
DE
FIA
NT
Fig. 15 The rear heat shield installed on the Defiant Stove.
ST500
IN TREPI D II
48"
(1220mm)
48"
(1220mm)
48"
(1220mm)
48"
(1220mm)
Fig. 12 Parallel installation, vertical chimney connector, two
wall shields. Reduced clearances for both rear and side walls.
Wall shields may meet at corner if desired. Shielding for
connector is centered behind connector.
ST497
