CDA CYLINDER EXTRACTORS EVCK4 - Manual (Page 10)

9
Mounting your extractor

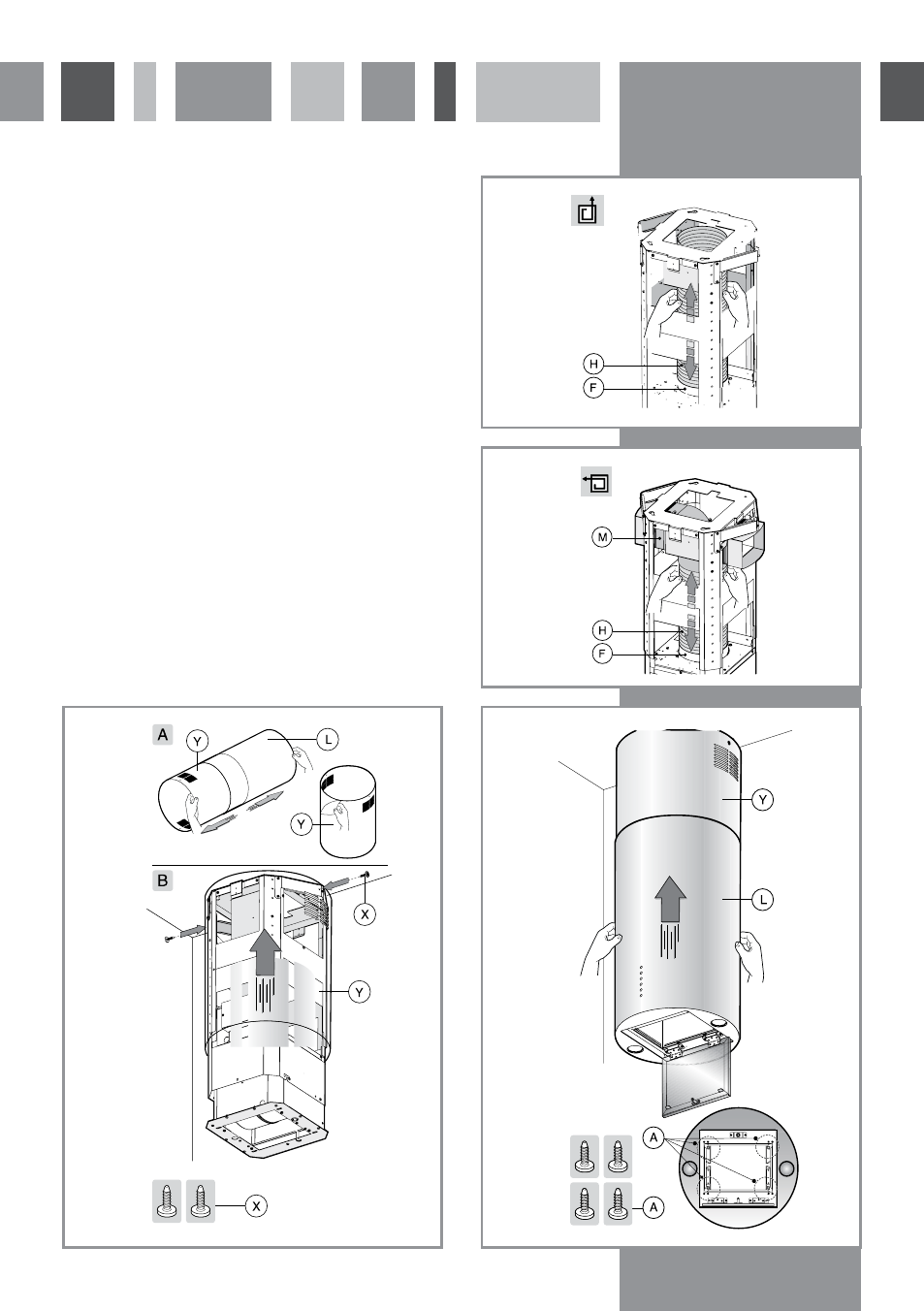

9. Assemble the ventilation duct(H), as shown in the
diagrams below dependanyt on whether you are
extracting air to the outside (Fig 12) or re-circulating
(Fig 13), in which case you will need to purchase an
optional accessory T-piece(M) from CDA. Ensure that the
duct adapter (F) is securely connected to the duct pipe or
T-piece in order to minimise noise.
10. Separate the two decorative sections and mount the
upper section(Y) into position, then fix it to the frame
with the 2 supplied screws(X).
11. Carefully slide the lower section (L) over the upper
section (Y) and secure into position using the 4 machine
screws (A) as shown in Fig 15.
Fig. 12
Fig. 15
Fig. 13
Fig. 14
