PV722E User’s Manual
32
Other Modes(VGA)
640*350
@70Hz
640*480
@70Hz
800*600
@70Hz
1024*768
@72Hz
1152*864
@60Hz, 70Hz, 72Hz
1280*720
@60Hz
1280*960
@60Hz, 70Hz, 72Hz, 75Hz
1280*1024
@72Hz
1280*1024
@70Hz

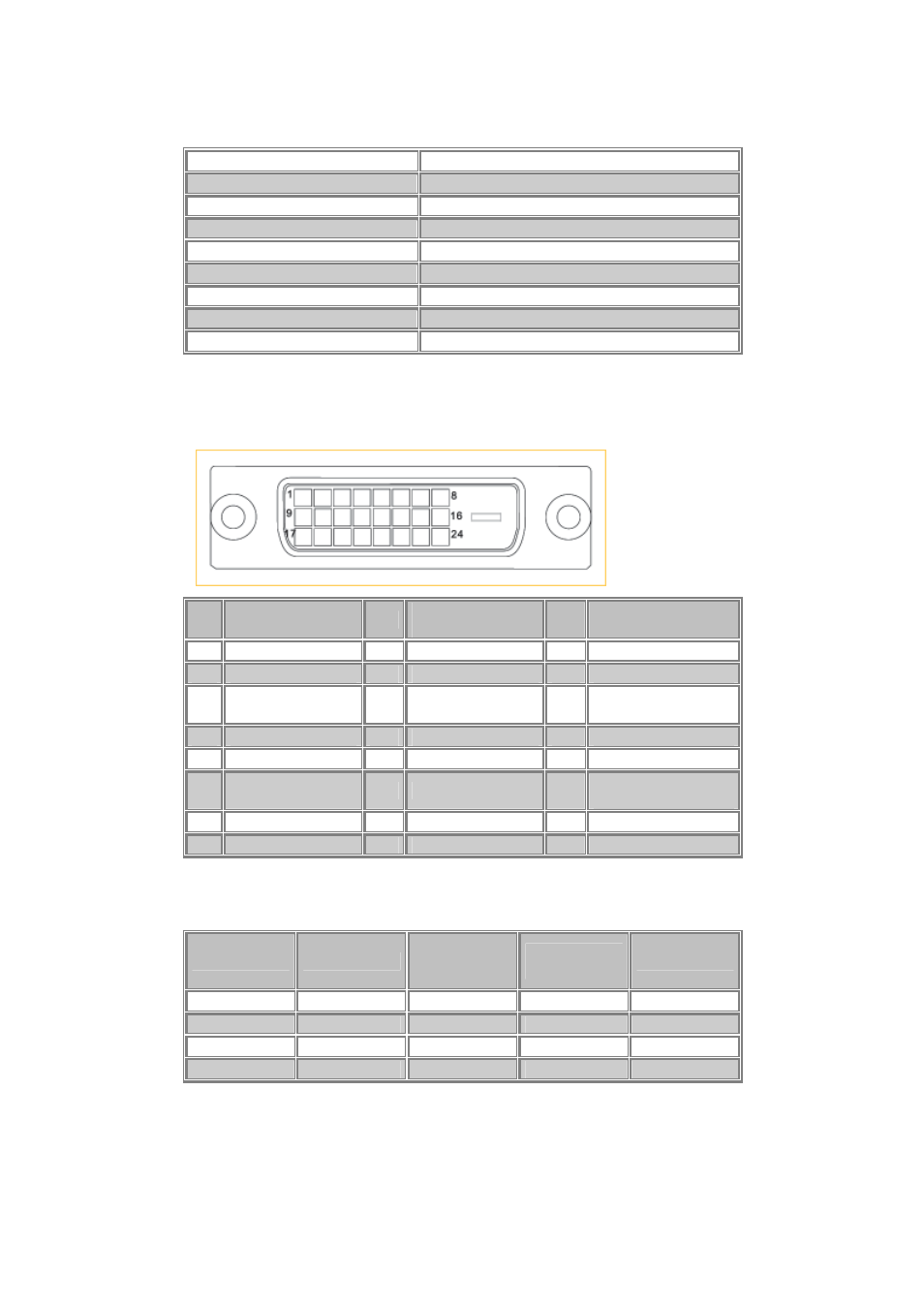

Pin Assignment (DVI)
DVI Connector
Pin
Signal
Assignment
Pin
Signal
Assignment
Pin Signal Assignment
1
T.M.D.S. Data 2-
9
T.M.D.S. Data 1-
17
T.M.D.S. Data 0-
2
T.M.D.S. Data 2+
10
T.M.D.S. Data 1+
18
T.M.D.S. Data 0+
3
T.M.D.S. Data 2/4
Shield
11
T.M.D.S. Data 1/3
Shield
19
T.M.D.S. Data 0/5
Shield
4
T.M.D.S. Data 4-
12
T.M.D.S. Data 3-
20
T.M.D.S. Data 5-
5
T.M.D.S. Data 4+
13
T.M.D.S. Data 3+
21
T.M.D.S. Data 5+
6
DDC Clock
14
+5V Power
22
T.M.D.S. Clock
Shield
7
DDC Data
15
Ground (for +5V)
23
T.M.D.S. Clock+
8
No Connect
16
Hot Plug Detect
24
T.M.D.S. Clock-
DVI Modes
Resolution
VCLK(MHz)
Horizontal
Frequency
(KHz)
Refresh Rate
(Hz)
Standard
640*480
25.175
31.469
59.940
IBM VGA
800*600
40.000
37.879
60.000
VESA
1024*768
65.000
48.363
60.000
VESA
1280*1024
108.000
63.981
60.000
VESA
