Remote turn on
Remote turn on
Mode switch
Line level
inputs from head unit
Stereo RCA cable from RS LINE OUT
to highs amp LINE IN
CPR Remote
Control
Woofer
1 ohm
minimum
High frequency speakers
Ground
Ground
O
p
tio
n
a
l
C
a
p
a
c
ito
r
Fuse at battery

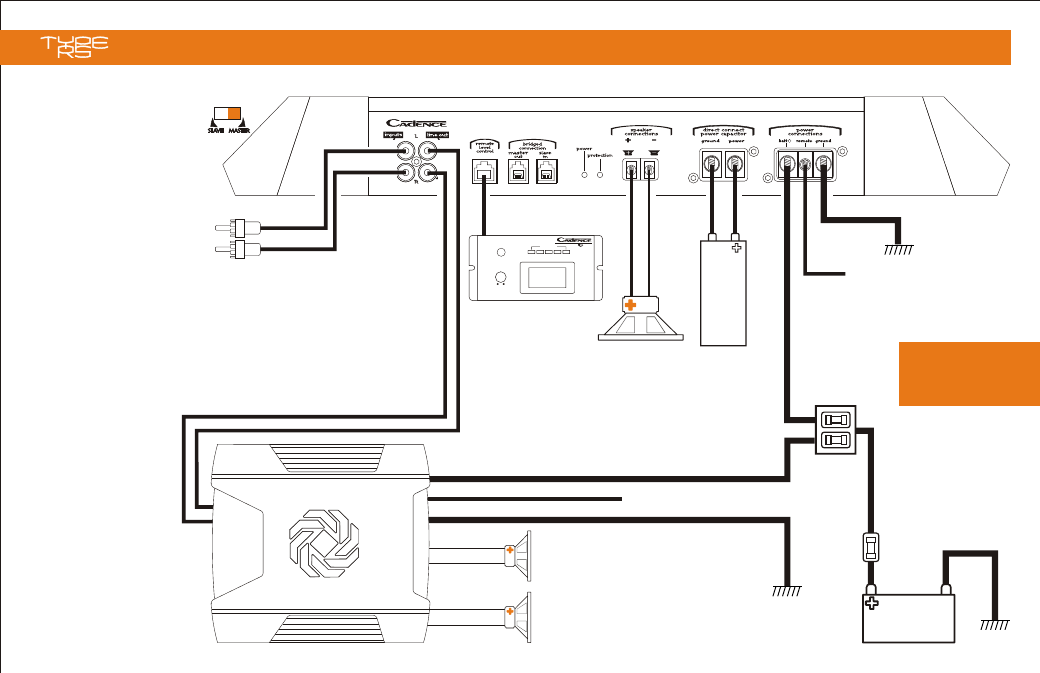

BASIC SINGLE RS AMPLIFIER INSTALLATION WITH A 2ND AMPLIFIER FOR THE HIGHS
7
BURST
LEVEL
FULL POWER
FULL
POWER
-50 dB
POWER
PR
PR
BATTERY
VOLTAGE
Distribution
block
Master fuse
at battery
Battery
2 CHANNEL
HIGH FREQUENCY AMPLIFIER
NOTE:
Set the HIGHS amplifier
crossover to HIGH PASS
Boom
!
