Connecting IDE 5.25” CD / DVD Page 8
5.25” CD / DVD
Mechanism
The 5.25” IDE CD/DVD drive has two connectors on the rear. The larger, 40
pin connector is IDE DATA while the smaller, 4 pin connector is for
Drive Power. Plug in the DrivePower connector. This connector has cut
corners and must be installed with the correct orientation. Make sure the
power switches are in the off position and
that the LED’s in the switch box are not
illuminated.

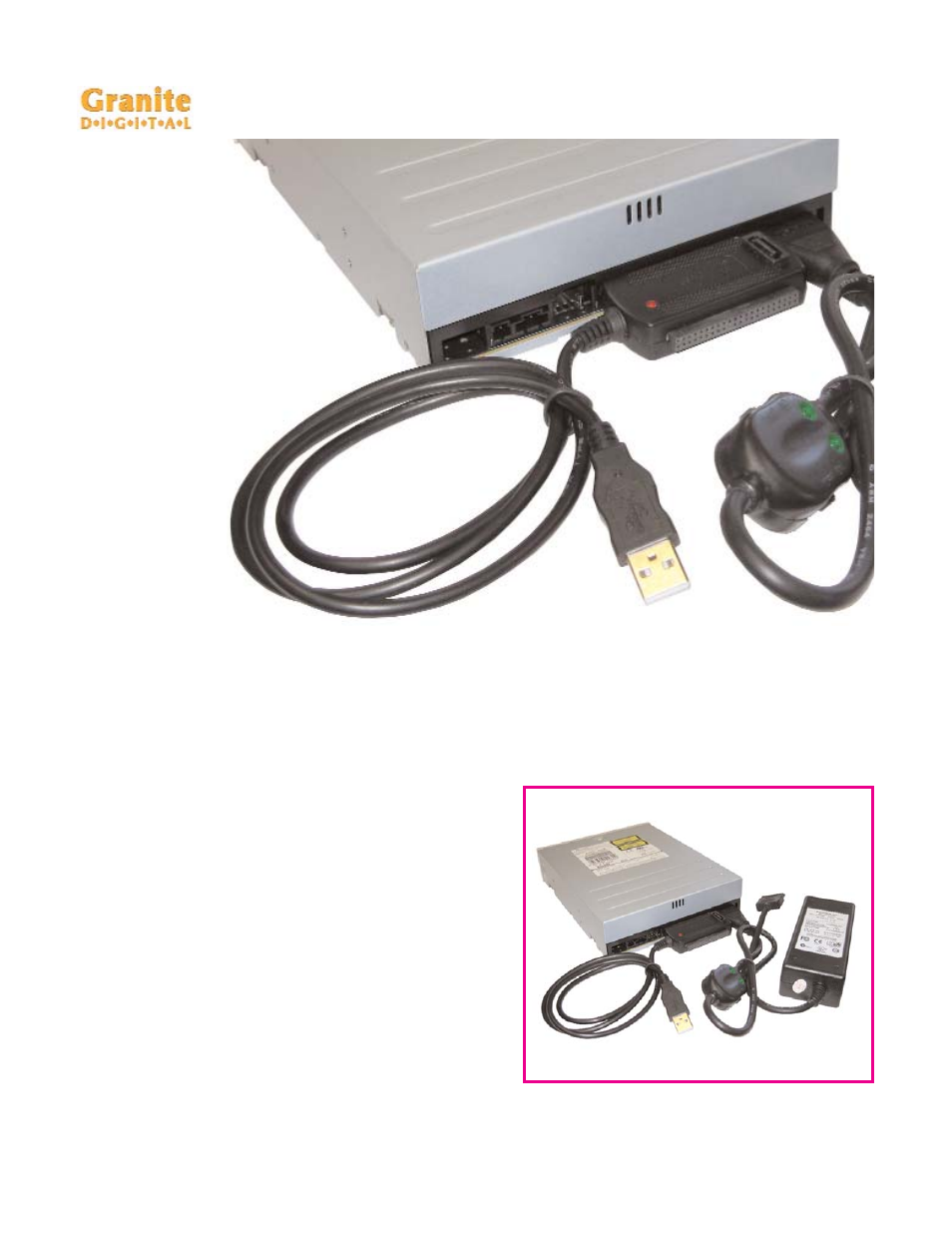

Next plug in the larger IDE Data
connector located on the Bridge Adapter.
This 40 pin connector is keyed and can
only be inserted in one direction. Plug
the USB Connector into the computer
and turn the power switch on.
5.25” IDE
CD / DVD
Mechanisms
