CAUTION
Do not scratch the camera lens when
cleaning dirt or snow from the lens.
SAA2776

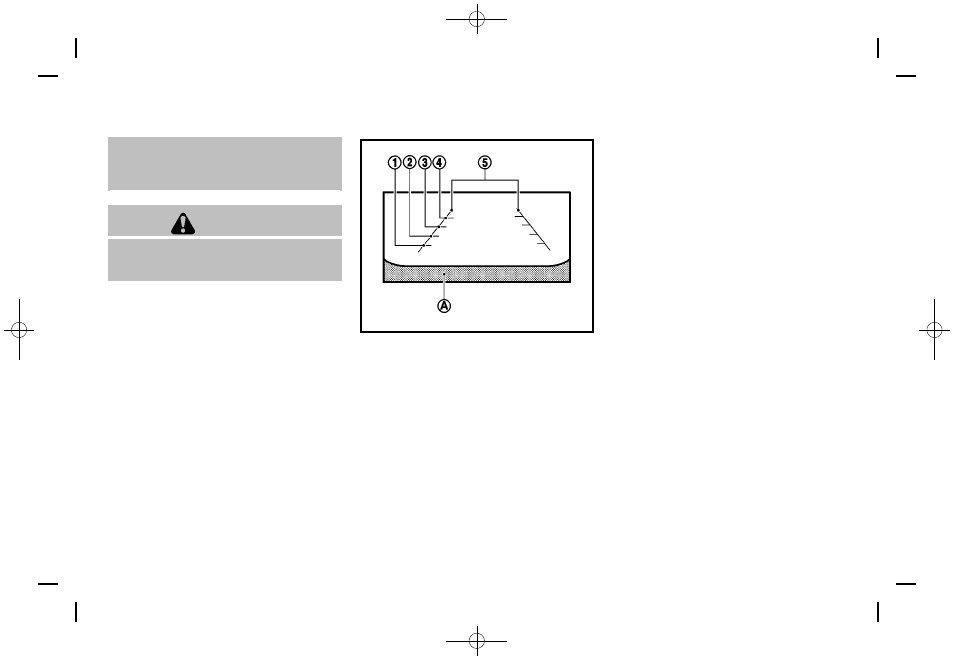

HOW TO READ THE DISPLAYED
LINES
Guiding lines which indicate the vehicle width
and distances to objects with reference to the
bumper line
*
A are displayed on the monitor.
Distance guide lines:
Indicate distances from the vehicle body.
. Red line *
1 : approx. 1.5 ft (0.5 m)
. Yellow line *
2 : approx. 3 ft (1 m)
. Green line *
3 : approx. 7 ft (2 m)
. Green line *
4 : approx. 10 ft (3 m)
Vehicle width guide lines *
5 :
Indicate the vehicle width when backing up.
DIFFERENCE BETWEEN PREDICTIVE
AND ACTUAL DISTANCES
The distance guide line and the vehicle width
guide line should be used as a reference only
when the vehicle is on a level, paved surface.
The distance viewed on the monitor is for
reference only and may be different than the
actual distance between the vehicle and dis-
played objects.
