HOW TO READ THE DISPLAYED
LINES

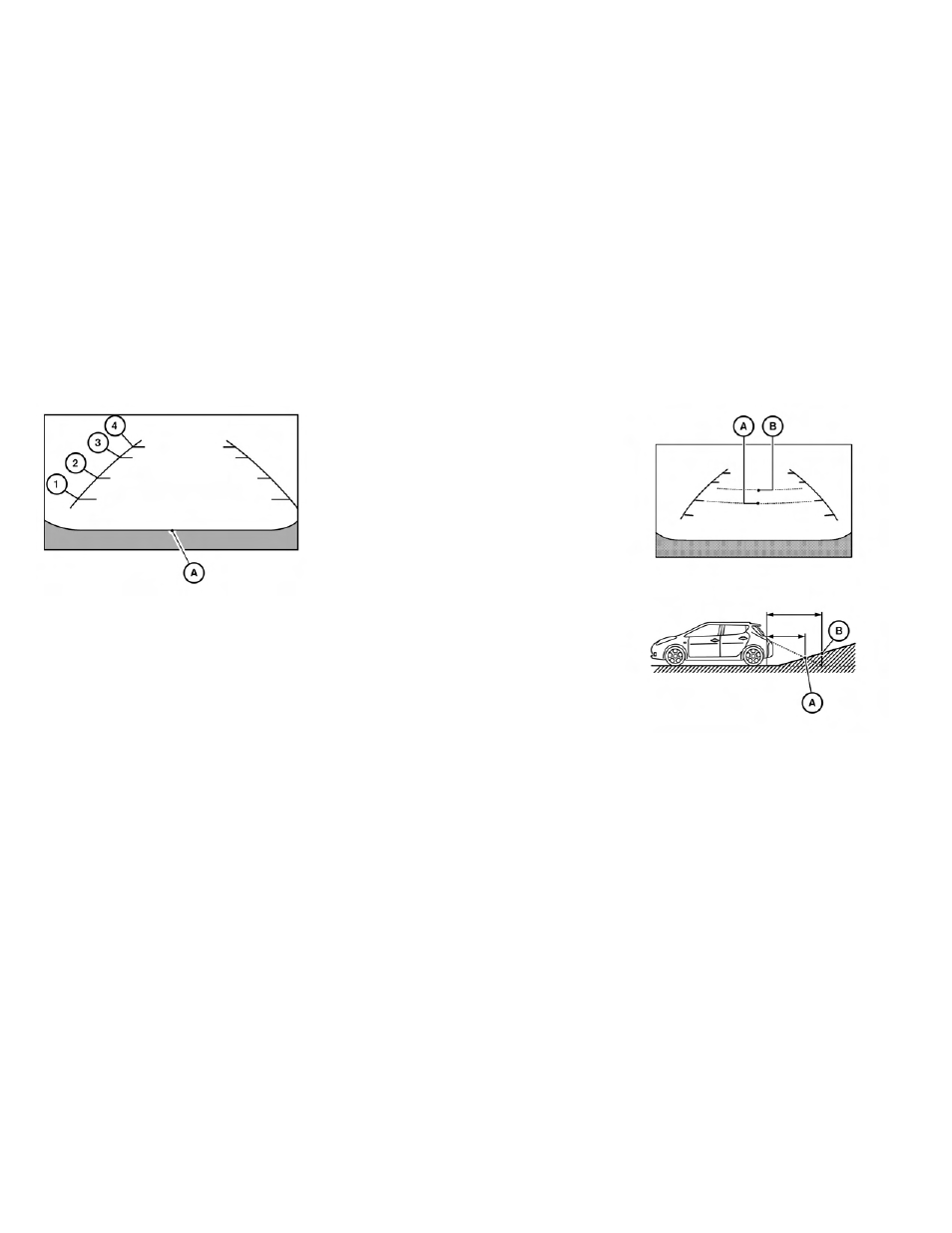

Guiding lines which indicate the vehicle width
and distances to objects with reference to the
vehicle body line
᭺
A are displayed on the monitor.
Distance guide lines:
Indicate distances from the vehicle body.
• Red line
᭺
1 : approx. 1.5 ft (0.5 m)
• Yellow line
᭺
2 : approx. 3 ft (1 m)
• Green line
᭺
3 : approx. 7 ft (2 m)
• Green line
᭺
4 : approx. 10 ft (3 m)
DIFFERENCE BETWEEN
PREDICTED AND ACTUAL
DISTANCES
The distance guide line and the vehicle width
guide line should be used as a reference only
when the vehicle is on a level, paved surface. The
distance viewed on the monitor is for reference
only and may be different than the actual distance
between the vehicle and displayed objects.
Backing up on a steep uphill
When backing up the vehicle up a hill, the dis-
tance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
For example, the display shows 3 ft (1.0 m) to the
place
᭺
A , but the actual 3 ft (1.0 m) distance on
