NISSAN 2013 LEAF - First Responder's Guide User Manual

Page 22

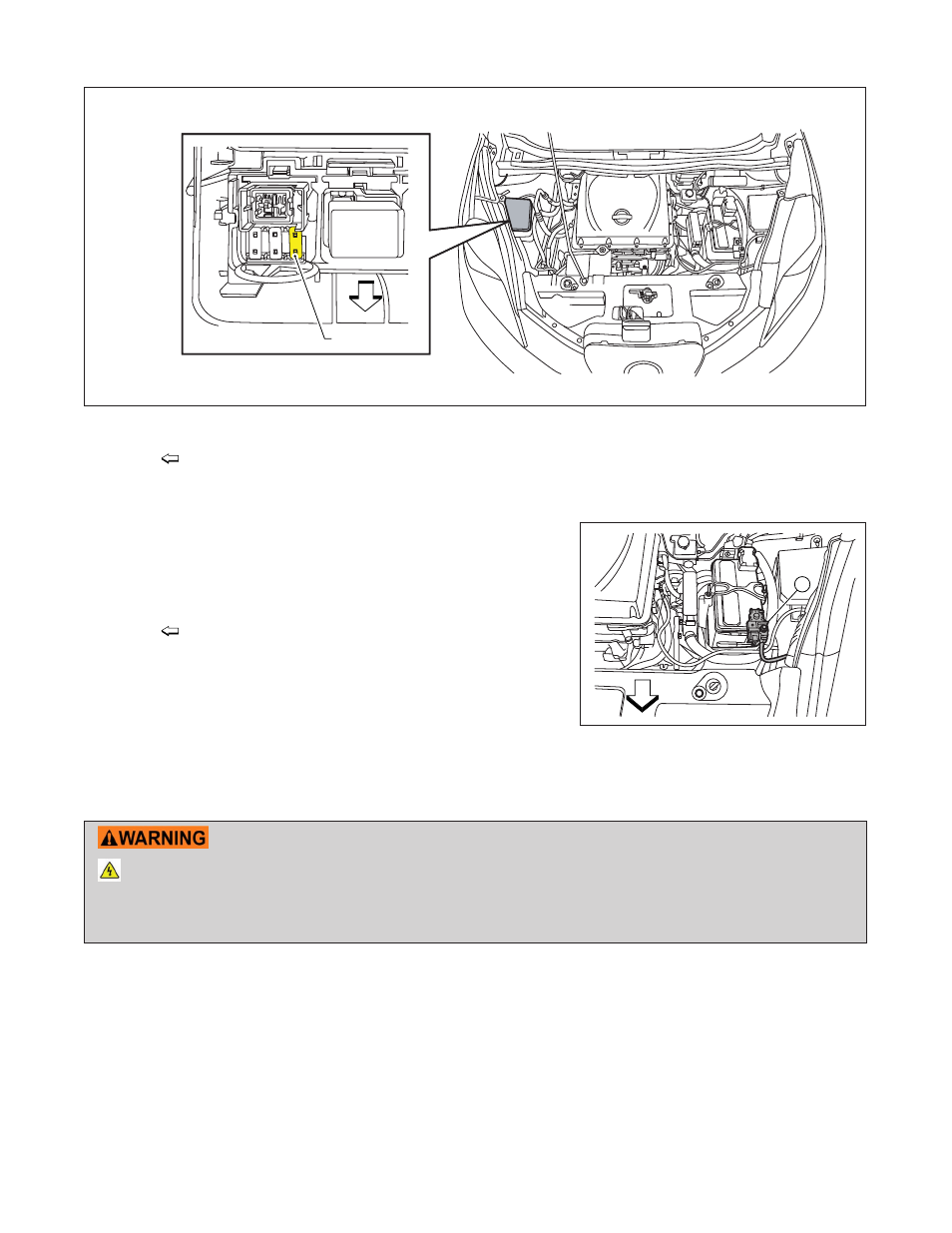

4. Remove the fuse box cover and remove the 20A VCM fuse.

NOTE:

: Arrow in illustration depicts vehicle front direction.

5. If you cannot identify the above fuses, remove all fuses in the fuse boxes.
6. Disconnect the negative (-) 12V battery cable (1).

Insulate the negative (-) battery cable terminal with
insulated tape.

NOTE:

: Arrow in illustration depicts vehicle front

direction.

7. Wait at least ten (10) minutes for complete discharge of the high voltage capacitor after

the fuses are pulled.

8. Perform the first response action.

To avoid unintended reinstallation and risk of electrical shock and severe personal

injury or death, the rescuer should carry the fuses on his/her person and cover the fuse box
with insulated tape.

20A VCM (Yellow)

AAYIA0054GB

AAYIA0149ZZ
