2-1.1 Li-ion Battery Pack Specifications
Li-ion battery voltage 403.2V
Number of Li-ion battery modules in the pack 48
Li-ion battery dimensions 61.8 x 46.8 x 10.4 in. (1570.5 x 1188 x 264.9 mm)
Li-ion battery weight 648 lbs (294 kg)
2-2 High Voltage Safety Measures
Circuit insulation The high voltage positive (+) and negative (-) circuits are insulated
from the metal chassis.
Reducing the risk of electrocution The high voltage components and harnesses have insulated cases or
orange-colored coverings which provide insulation and easy identifica-
tion.
The high voltage battery case is electrically connected to the vehicle
ground. This connection helps protect the vehicle occupants and
emergency responders
from high voltage electrical shock.
Identification The high voltage components are labeled “WARNING” similar to label
shown below. All high voltage harnesses are coated in orange.

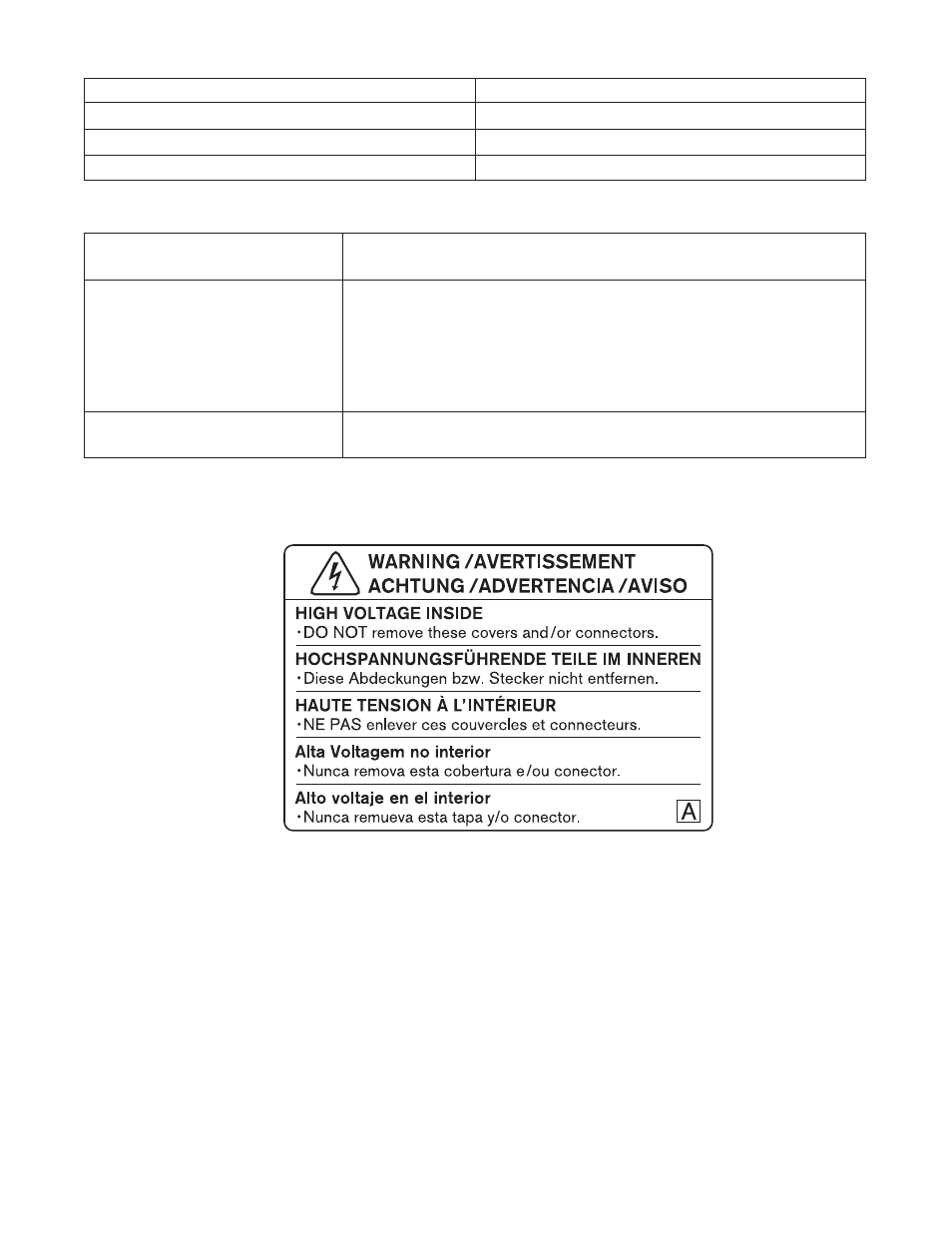

2-2.1 Warning Label
AAYIA0027GB
