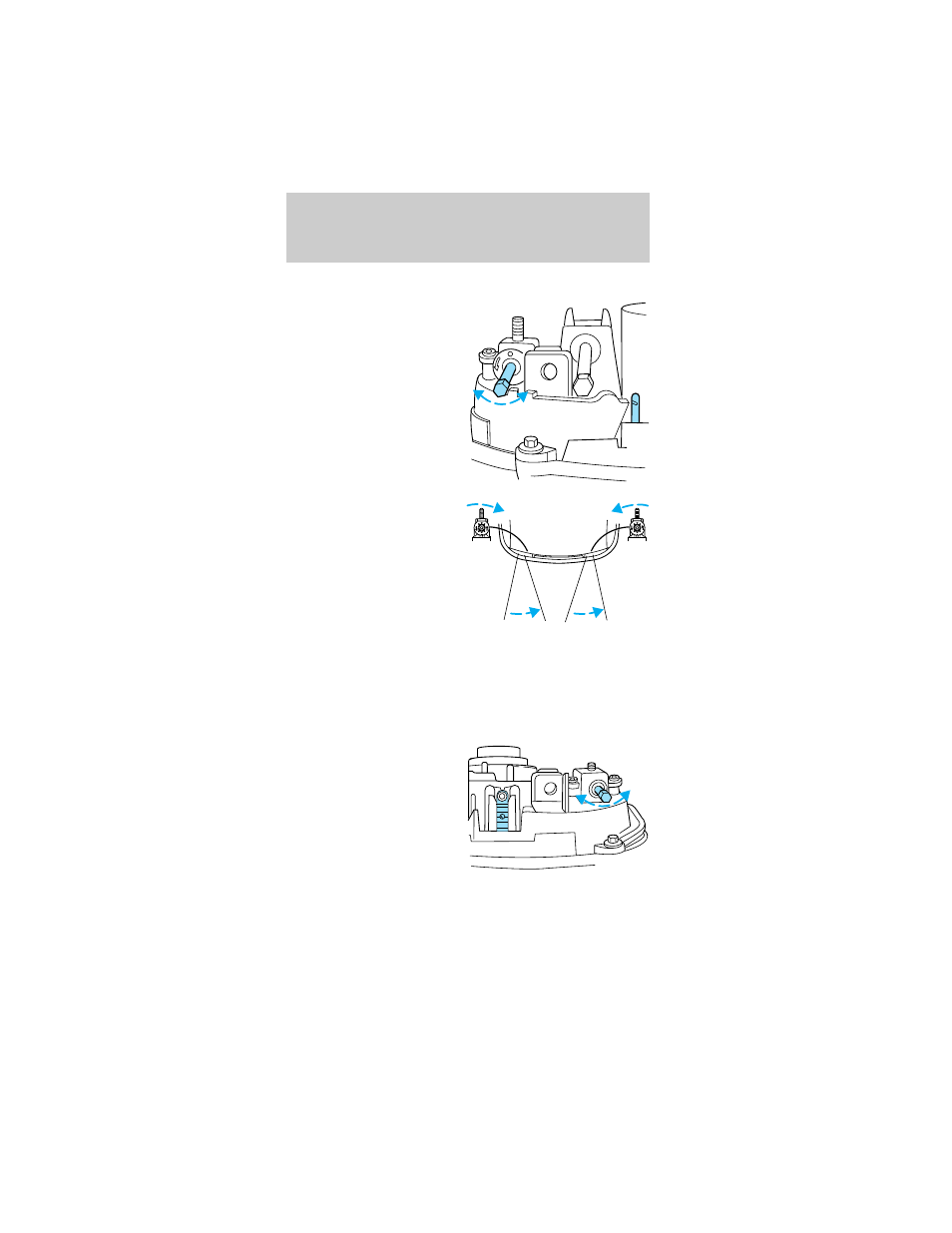

Horizontal aim adjustment
1. Park the vehicle on a
level surface.
2. With the hood open,
locate the horizontal
indicator and adjusting
screw. Remove the
protective cap to
access the 7 mm
adjusting screw head.
3. Turn the horizontal
adjusting screw in the
direction of the arrow
to change the
horizontal aim as
shown.
4. Use a 7 mm wrench
or socket to turn the
horizontal adjusting screw until the “0” reference
mark on the view dial is aligned with the rearward
facing tab (as shown) on the plastic housing.
Vertical aim adjustment
1. Park the vehicle on a level surface.
2. With the hood open,
locate the bubble level
vertical aim indicator.
It is visible when
viewed from above
center rear of the
headlamp. Locate the
vertical adjusting
screw, located on the
outboard side of the headlamp adjacent to the
headlamp upper outboard attachment.
