Always replace the cover to the Power Distribution Box before
reconnecting the battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Battery section of the Maintenance and care chapter.

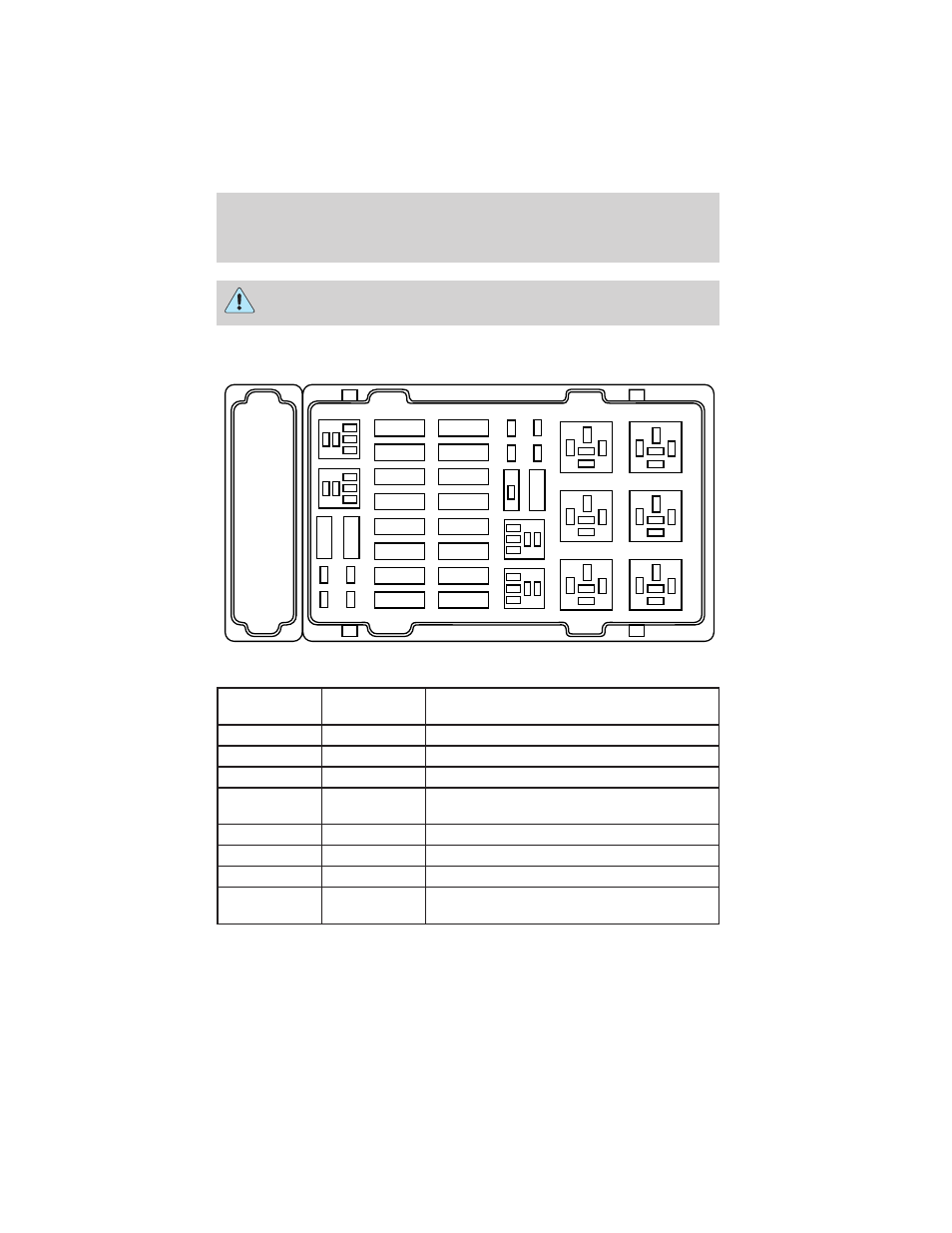

The high-current fuses are coded as follows.
Fuse/Relay
Location
Fuse Amp
Rating
Power Distribution Box Description
1 — Not Used
2 — Not Used
3 — Not Used
4 10A* PCM Keep Alive Memory, Instrument
Cluster, Voltmeter
5 10A* Right Trailer Turn Signal
6 10A* Left Trailer Turn Signal
7 — Not Used
8 60A** I/P Fuses 5, 11, 23, 38, 4, 10, 16, 22, 28,
32
AB
3 2
1
46 57
15
14
13
12
11
10
9
8
23
22
21
20
19
18
17
16 24
26
25
27
29
CD
G
F
E
K
J
H
28
