If the battery has been disconnected and reconnected, refer to the
Battery section of the Maintenance and specifications chapter.

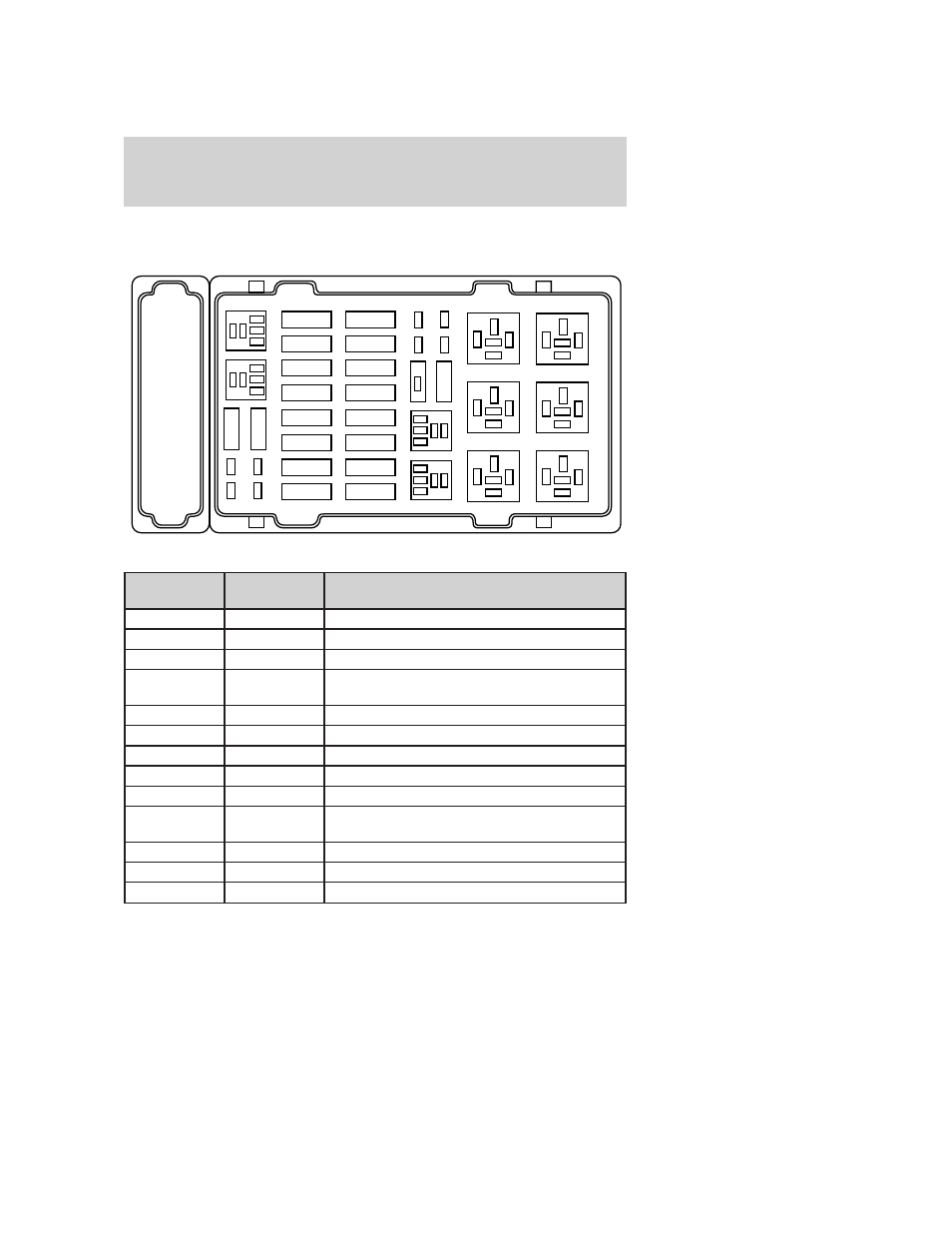

The high-current fuses are coded as follows.
Fuse/Relay
Location
Fuse Amp
Rating
Power Distribution Box Description
1 — Not used
2 — Not used
3 — Not used
4 10A* Powertrain Control Module (PCM) Keep
Alive Memory, Instrument cluster, Voltmeter
5 10A* Right trailer turn signal
6 10A* Left trailer turn signal
7 20A* Clearance lamps
8 60A** I/P fuses 4, 5, 10, 11, 16, 22, 23, 28, 32, 38
9 30A** PCM power relay, Engine compartment fuse 4
10 60A** Auxiliary battery relay, Engine compartment
fuses 14, 22
11 30A** IDM relay (Diesel only)
12 60A** Engine compartment fuses 25, 27
13 50A** Blower motor relay (blower motor)
AB
3 2
1
46 57
15
14
13
12
11
10
9
8
23
22
21
20
19
18
17
16 24
26
25
27
29
CD
G
F
E
K
J
H
28
